Balancers for Wood Windows
Purchasing Agent from Mount Vernon, WA
May 23, 2025 3:00 pm

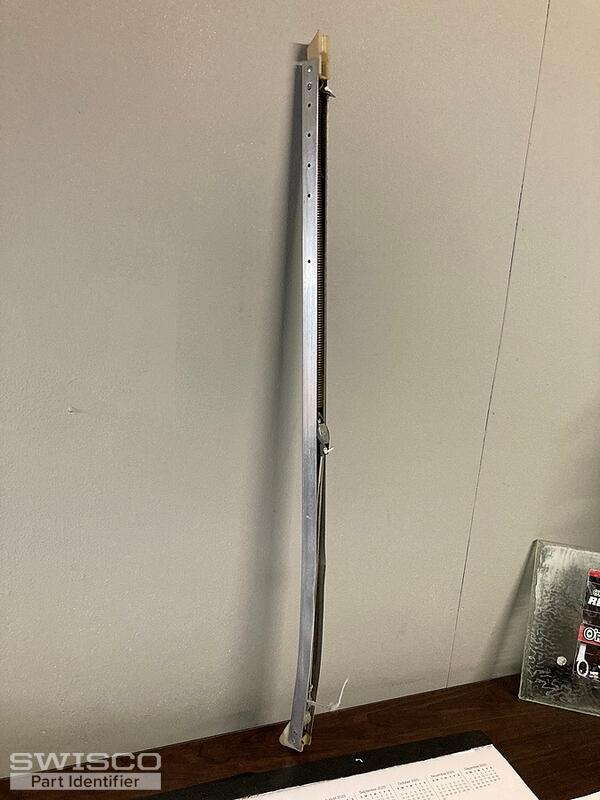

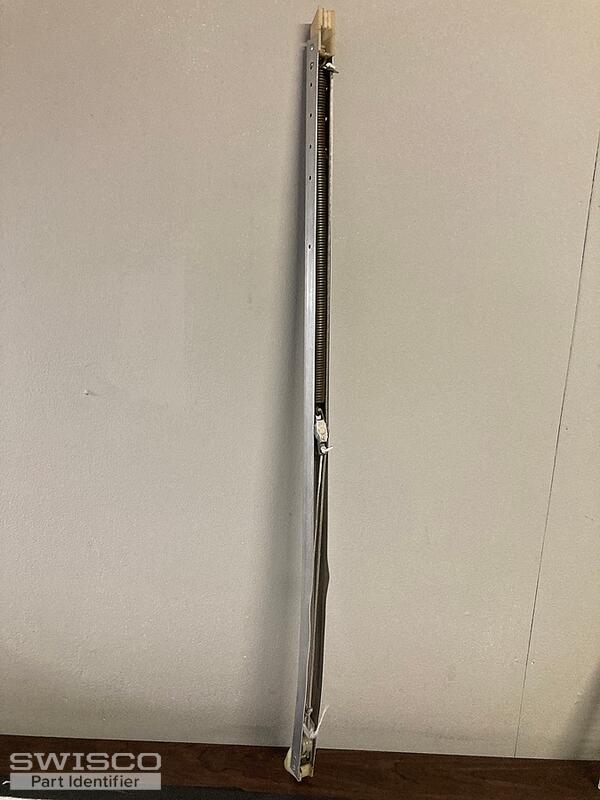

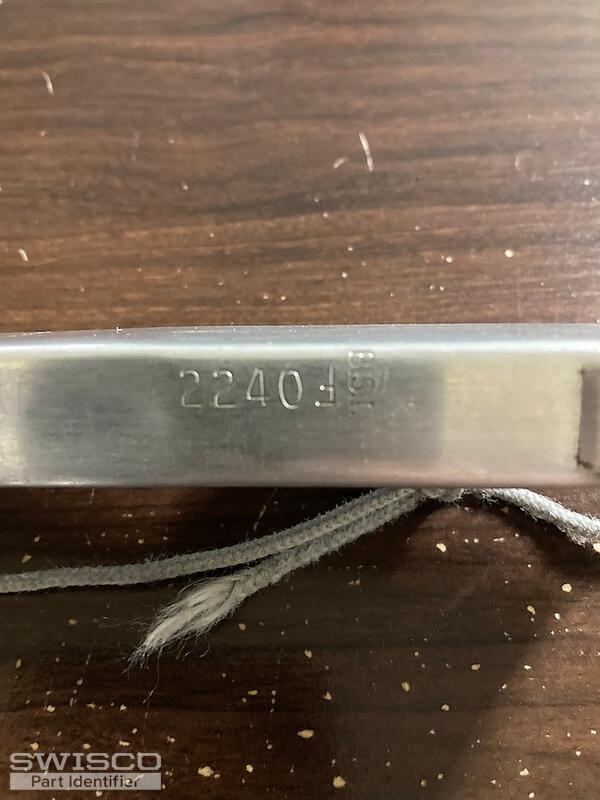

1/2" Wide, 22-4 , with a tab instead of a hook so it can be screwed into the wood frame.
4 user uploaded images
10 Replies
Purchasing Agent from Mount Vernon, WA
May 23, 2025 3:02 pm
Looking for about 40 balancers.
Quick Learner
May 27, 2025 1:10 pm
Looking for ½” inch 22-4 balancers with a tab fpr a Non Tilt Wood Windows so that it can be screwed into the wood window frame.
Needing at least 40 balancers.
Are they available with the tab instead of the hook?
Needing at least 40 balancers.
Are they available with the tab instead of the hook?
5 user uploaded images
Emily from SWISCO
May 28, 2025 2:02 pm
Hi there!
Thank you for reaching out to us. This balance configuration isn't a part of our stock catalog but we may still be able to help. It looks like your balance uses a hook like the 62-105 with the point cut off and a drilled hole. What we can offer is the S351-23 or S390-23 with the 19-043 screw-in clip attached to the cord. This would have to be a custom order, which is nonrefundable.

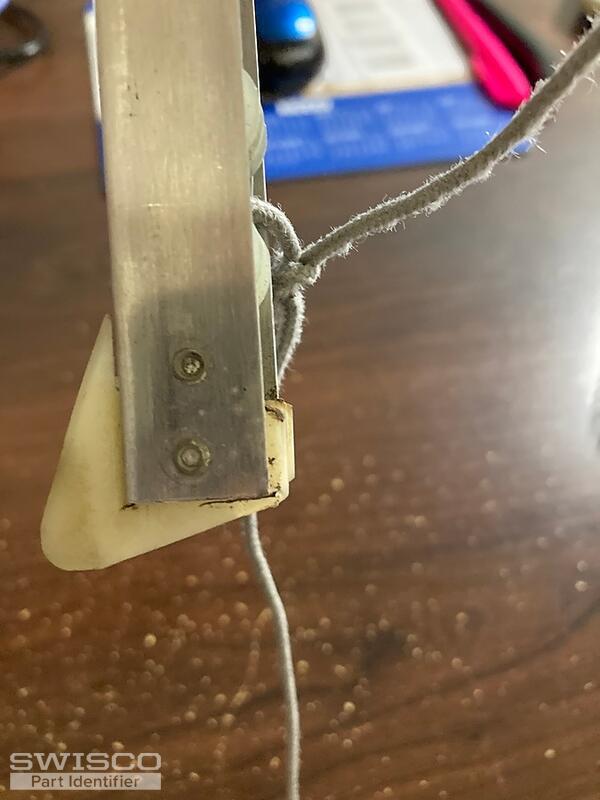

If that sounds good to you, can you confirm the depth of the bottom shoe as shown below?
Quick Learner
May 28, 2025 4:14 pm

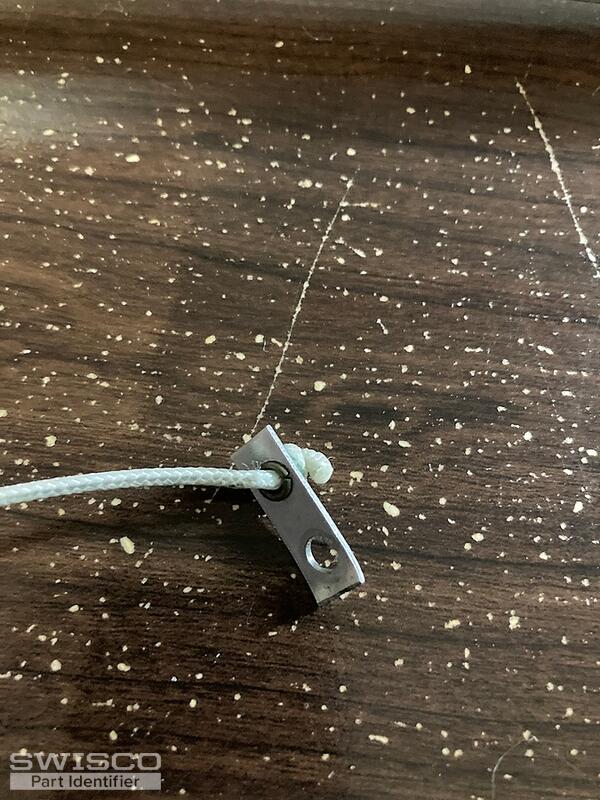

Not sure what you mean by depth but the dimensions of the tab with the 2 holes is 3/4" long x 1/4" wide
Emily from SWISCO
May 29, 2025 8:10 am
Oh, my apologies! I uploaded the wrong photo. We'll need to know the depth of the bottom shoe, as shown below.
Comparison of the S351 and S390 balance shoes.
Quick Learner
May 29, 2025 11:40 am
1" like the 15-002
Emily from SWISCO
May 30, 2025 4:05 pm
Thank you! We have to confirm a few details on our end, but I will reach back out as soon as we're ready to get the ball rolling.
Quick Learner
May 30, 2025 5:00 pm
Thank you.
