Broken Balance and latch

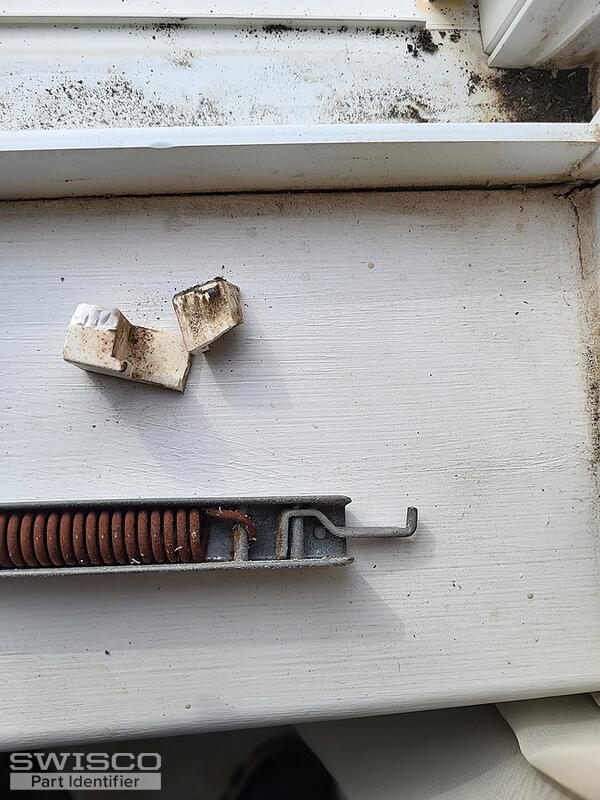

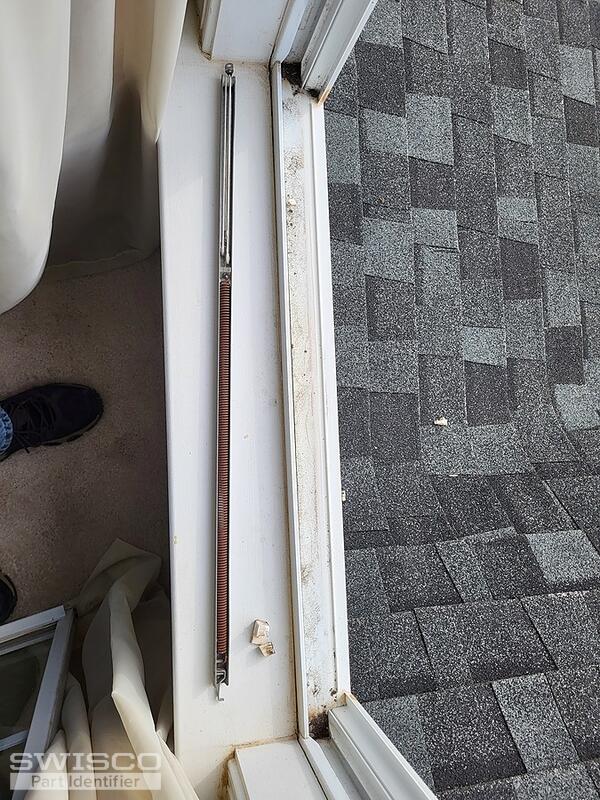

Thanks for reaching out! To identify the replacement for your balances, it would be best to see them removed from the sash. I'll need to see a clear photo of the attachment at the bottom of the balance, connected to the pivot shoe. Once I have a better idea of what that attachment looks like, I'll be able to confirm the correct replacement.

In the meantime, your tilt latches look like they could be the 26-078, and its opposite handed version, part 26-079. Carefully look over the dimensions and compare them to your existing latches to confirm that these are the right replacement.

Alternate image for 26-078

Hi Steve,

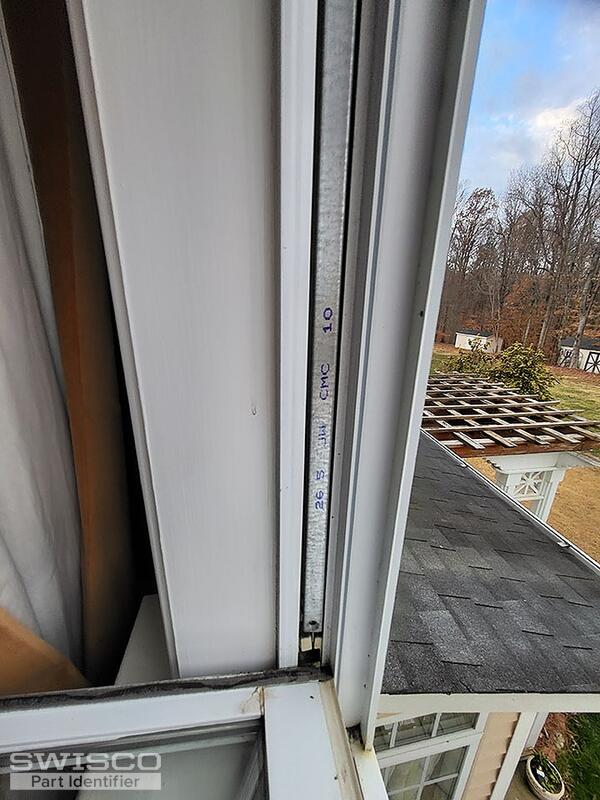

Thanks for the photos. Your balance appears to be the S765-27 made with a pivot shoe hook. You'll need to select the 26-5 stamp option.

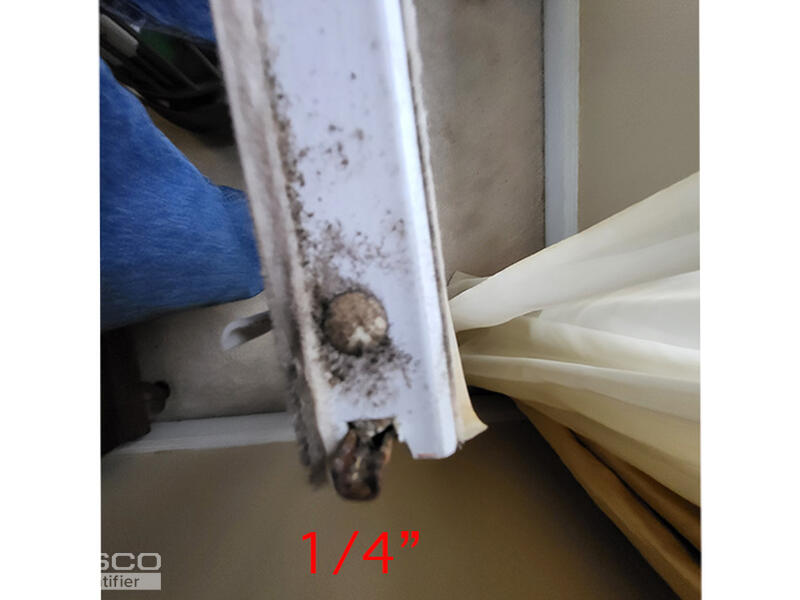

Your exact pivot shoe is no longer made but our 15-046 should work well as a replacement. The compatible pivot bar is the 26-040 3" Pivot Bar.

Be sure to look over the dimensions to confirm that these will be a fit.

Alternate image for 15-046

Dimensions for 26-040
