Checking for the right part

Quick Learner from London, KY

Feb 12, 2018 5:58 pm

I ordered this part last week and it came in. I wanted to make sure this was the right one before I open everything and take the door down. It looks like the top part has 3 screw holes while mine only has 2.

I ordered this part Right 1/8" Recessed Door Offset Pivot Set, Arch

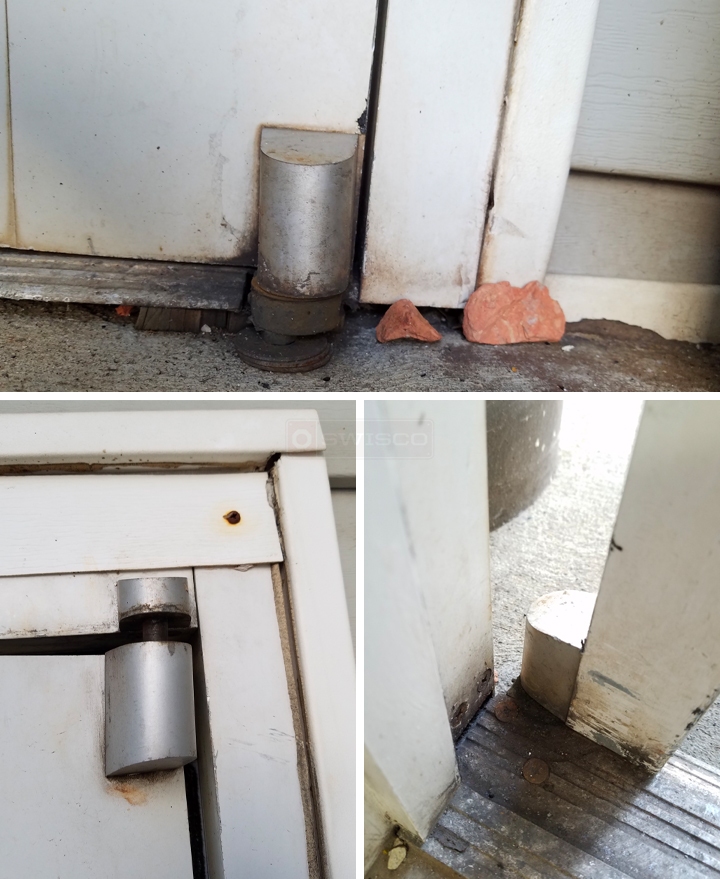

User submitted photos of commercial door hardware.

5 Replies

Handy Person from London, KY

Feb 14, 2018 1:24 pm

I ordered Right 1/8" Recessed Door Offset Pivot Set, Arch, product code 79-128.
I haven't opened it because i was worried i maybe ordered the wrong part.

Reason why, there is 2 screw holes on the top part of the door frame and the part i got has 3 screw holes.

Thank you

Tom from SWISCO

Feb 16, 2018 10:55 am

Thanks for contacting us. Could you show me a picture of the screw hole pattern for both the top and bottom hinge? I can't make it out from your photos. We have some that may work but I can't tell based on your photos.

Quick Learner from London ky

Feb 16, 2018 11:13 am

Here you go

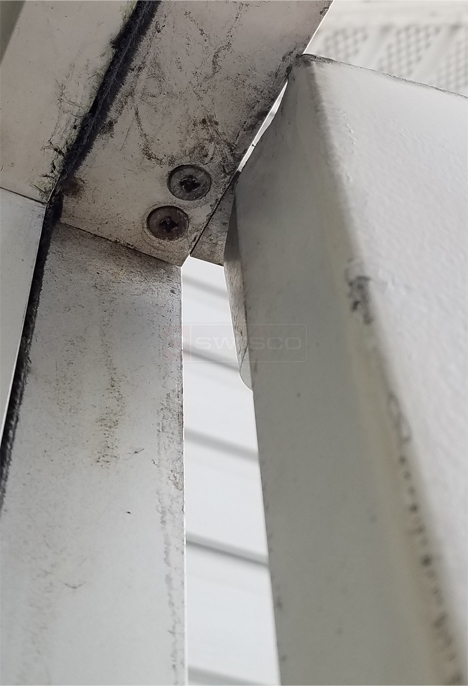

User submitted image of their door hardware.

Tom from SWISCO

Feb 16, 2018 1:29 pm

Thank you. I would look at our 79-097 and 79-098 to start out with, or maybe our 79-123 and 79-124. These both have two holes at the top, though I'm not sure how the bottom holes match up.
