Left Flush Door Offset Pivot Set, US Aluminum

Product Code: 79-097

Left Flush Door Offset Pivot Set, US Aluminum

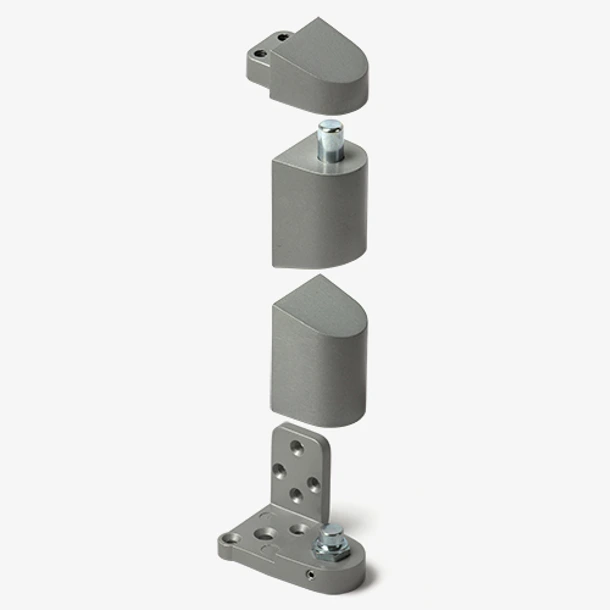

Main product image of the 79-097 Left Flush Door Offset Pivot Set, US Aluminum

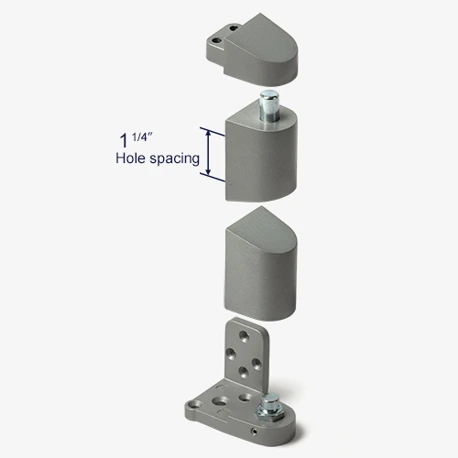

Dimensions for 79-097
How to Install a Commercial Door Pivot
Quantity Price
1-9 $18.08
10-24 $17.18
25-49 $16.27
50-99 $15.37
100+ $14.83
Product Description
This offset pivot set is used to replace the lower and upper pivots in a left hand flush door manufactured by U.S. Aluminum; HRSO. 3/4" Offset for use with aluminum commercial doors and frames with 1/8" vertical adjustment for doors weighing up to 125 lbs. Features an oilite bronze bushing in top frame portion; case hardened, spring loaded pin in top door portion; full race ball bearing in bottom door portion; case hardened stud in floor/jamb portion. To adjust the lower pivot you will need a 5/8" open end wrench. Finish/color is a baked satin aluminum paint.
Customer Questions & Answers
Discussion # Of Replies Last Post Date
Replacement parts neededThis discussion includes image(s). 2 Aug 28, 2021
Commercial door pivotsThis discussion includes image(s). 4 May 28, 2021
Door is scraping bottom, occasionallyThis discussion includes image(s). 4 Jun 19, 2020
Hi I need help with identifying a part. This discussion includes image(s). 2 Dec 30, 2019
Front store doorThis discussion includes image(s). 2 Aug 28, 2019
commercial door pivot This discussion includes image(s).This discussion includes video(s). 2 Jun 7, 2019
commercial door hinge set orderThis discussion includes image(s). 3 Oct 16, 2018
Checking for the right partThis discussion includes image(s). 5 Feb 16, 2018
