Coil Balances

Quick Learner

May 18, 2025 11:59 am

Hello,

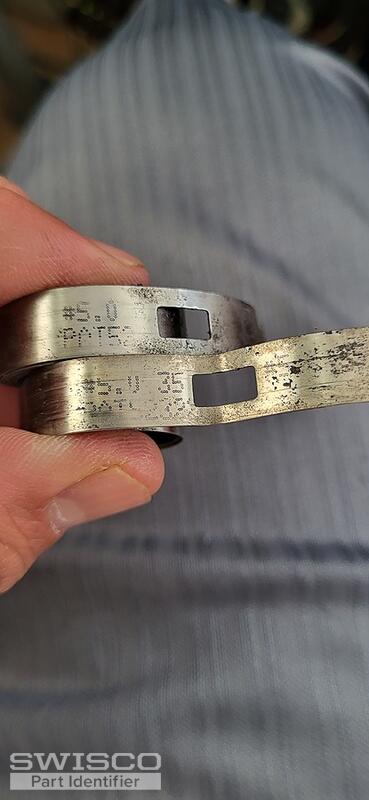

I'm looking for coil balances for my vinyl windows. They are triple coils. It looks like the coils are 5lbs 35inches?
Thank you

5 user uploaded images

4 Replies

Bob from SWISCO

May 18, 2025 1:18 pm

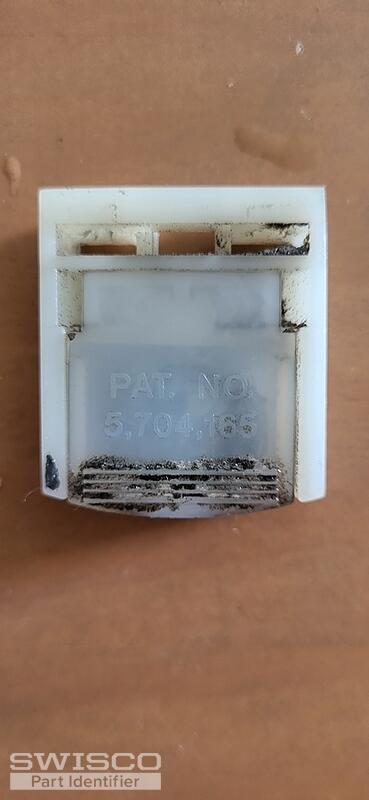

Thanks for posting. The shoe looks like the 15-199. Are the coil springs 3/8" wide? If so, they are the Series 165. Springs stamped '5' can be replaced with the S165-5 5 pound springs. For a new triple coil support, see the 15-206. Let me know if you have further questions about any of this hardware.

Quick Learner

May 20, 2025 5:27 pm

Yes, the coils are 3/8" wide.
The triple coil support, you listed 15-206. Is that correct? It says quad. I just want to make sure.
Thank you

Bob from SWISCO

May 21, 2025 8:56 am

My mistake. The triple coil support would be the 15-205. Just let us know if you need anything else.
