Coil balance

Thanks for reaching out to us! We sell the individual components of most coil balance assemblies separately. I think we can help you with yours, though some components we offer are a little different.

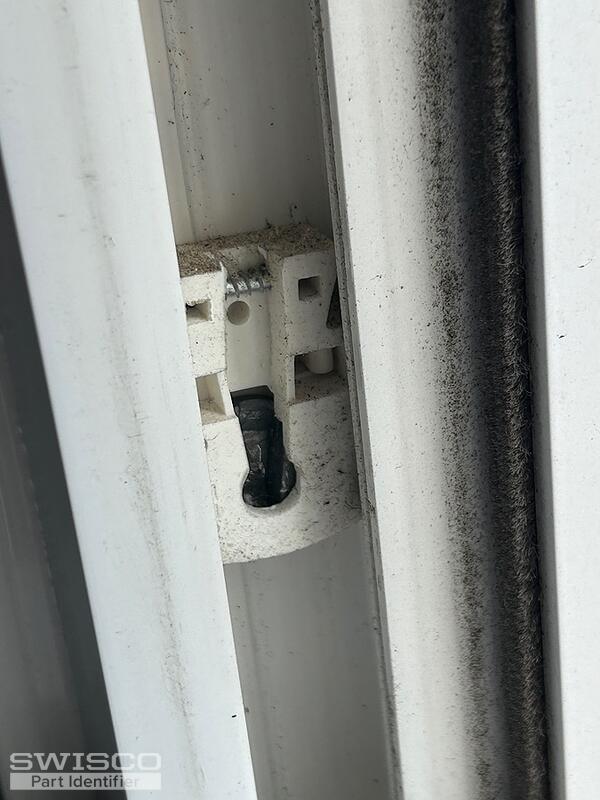

To start, your shoe appears to be a match with our 15-199. The shoe is usually the best place to start for identification purposes since it affects everything else. Review our measurements for this part to ensure that they match.

This shoe is compatible with two different springs: either the 1/2" Series 160 or the 3/8" Series 165. You'll need to remove one of the original springs and measure the width of the band to determine the better match.

From there, you have two options for the cover. Either the 15-150T for the Series 160 or the 15-205 for the Series 165.

Please feel free to reach out if you had any additional questions.
