Coils for a 38 lbs. window

Quick Learner from New Jersey

Jun 6, 2022 4:21 pm

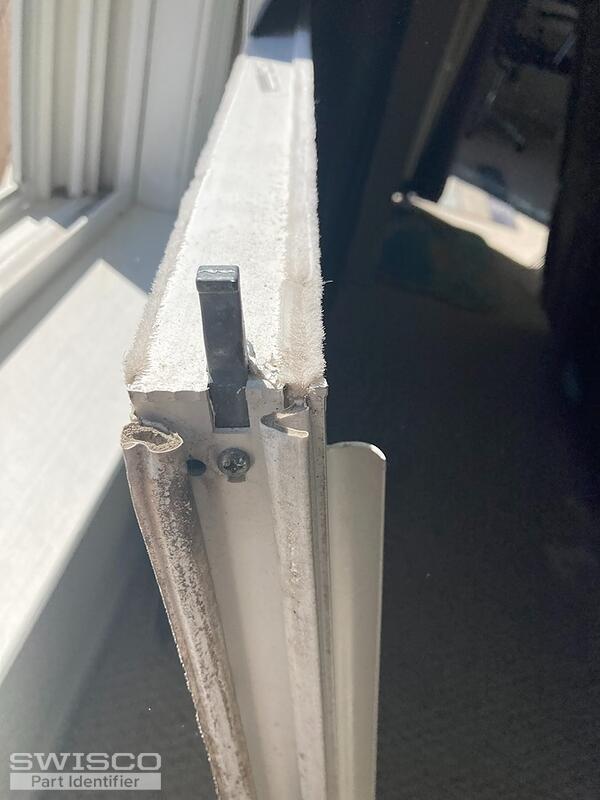

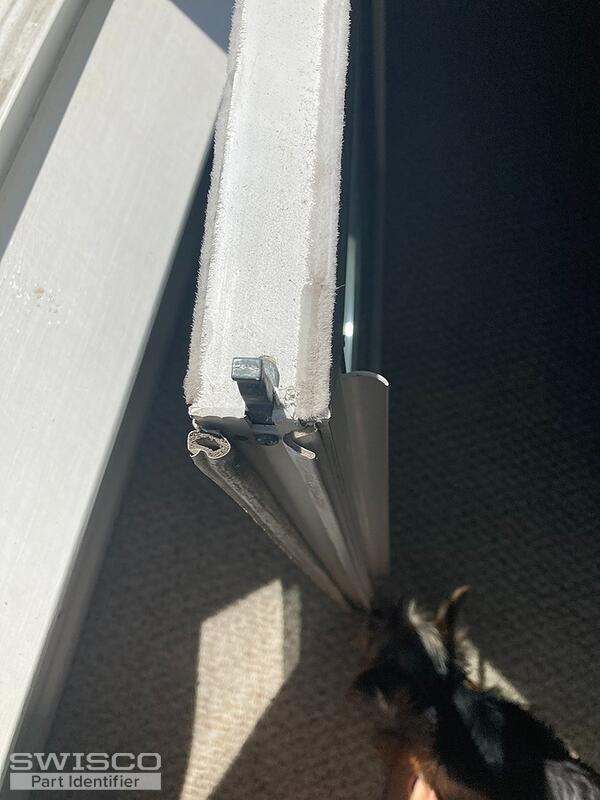

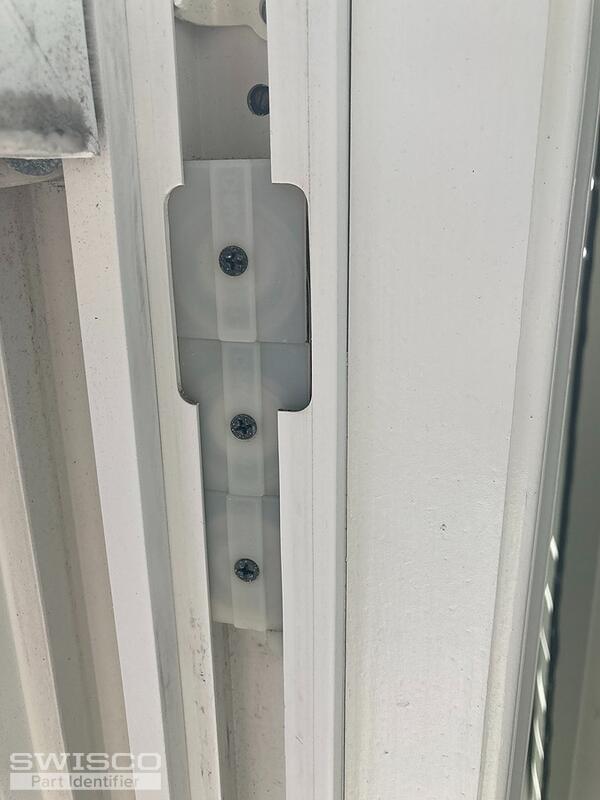

I need to replace 3 coils because the shoe broke. I also need to replace 3 pivot bars. I don't have part number but the coils appear to be 3 to a set. The window sash weights approximittely 38 pounds. I don't know if I can purchase just the coil that connects to the shoe housing or if I need the entire set. Please advise and let me know the details and cost to purchase the correct material.

Thank you

3 user uploaded images

6 Replies

Emily from SWISCO

Jun 9, 2022 10:30 am

Hello!

You have an old Simonton balance that isn't made anymore but take a look at the video below where we walk you through the entire replacement process, along with the other parts that you'll need for this repair.

Quick Learner from New Jersey

Jun 9, 2022 2:43 pm

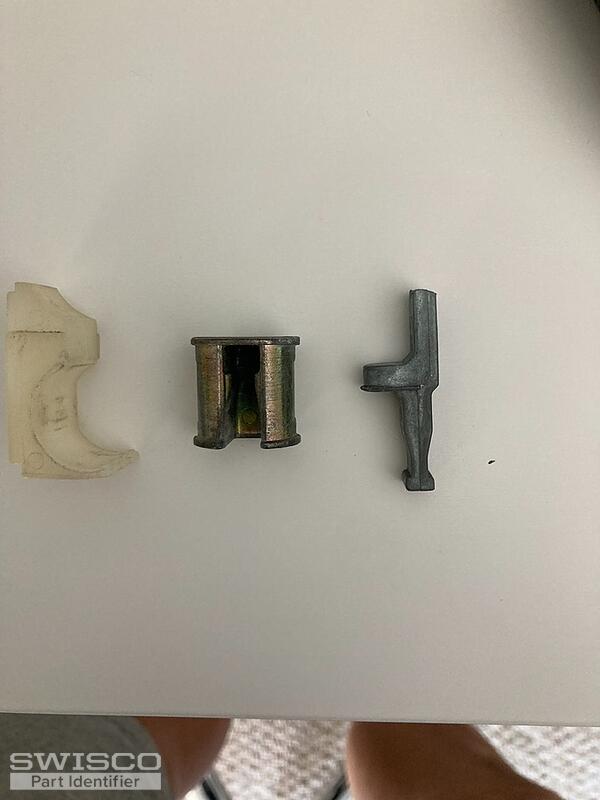

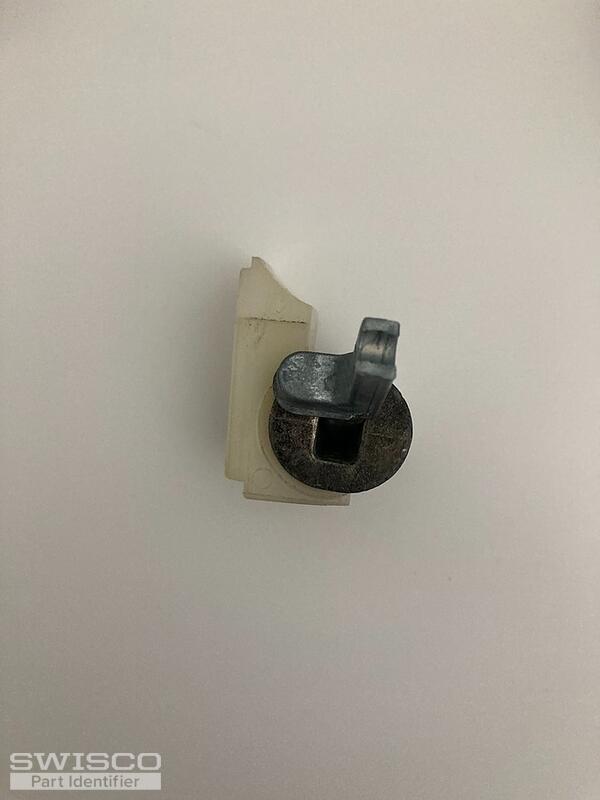

My Coils are still in working order. The shoes and pivot bars is what failed. Do I need to replace the old shoe with the newer version shoe 15-259 and pivot bar 26-083 or do you carry the shoes in the picture. Can I use the same coils with the newer version shoe? If so can I order them from you?

Thank you.

2 user uploaded images

Emily from SWISCO

Jun 9, 2022 3:09 pm

I'm afraid your pivot shoe is no longer made so your best option is to covert to the 15-259 as shown in the video above. Our 15-259 is specifically designed to work with the Series 159 springs so I'm afraid you can't re-use your old springs. All orders can be placed directly on our website at your convenience. If you have any questions just let me know!

Quick Learner from New Jersey

Jun 9, 2022 4:30 pm

Since my window sash weights ~38 pounds does that mean that I will need 3 (S129-12) coils, pivot shoe, pivot bar and cover (complete set) to replace the broken shoe. I just want to confirm the material before I place the order. I really appreciate the quick responses.

Thank you

Emily from SWISCO

Jun 10, 2022 9:17 am

Correct, you'll need the 26-083 pivot bar and 15-259 pivot shoe along with the other parts I've related for you on this page.

It's important to note that a triple coil assembly for your original shoe is uncommon and we only sell single and double coil supports for the S159 coil springs. My apologies for missing that detail! With that said, you'll need the 15-256 double coil support and you can use (1) S159-10 10.5 pound spring and (1) S159-8 8.5 pound spring on both sides of the window. This will total 38 pounds of overall support. I know you originally had a triple coil setup but going with double coils will be fine.

Let me know if this makes sense or if you had any questions!
