Crest o pane 77-87

Quick Learner from Minnesota

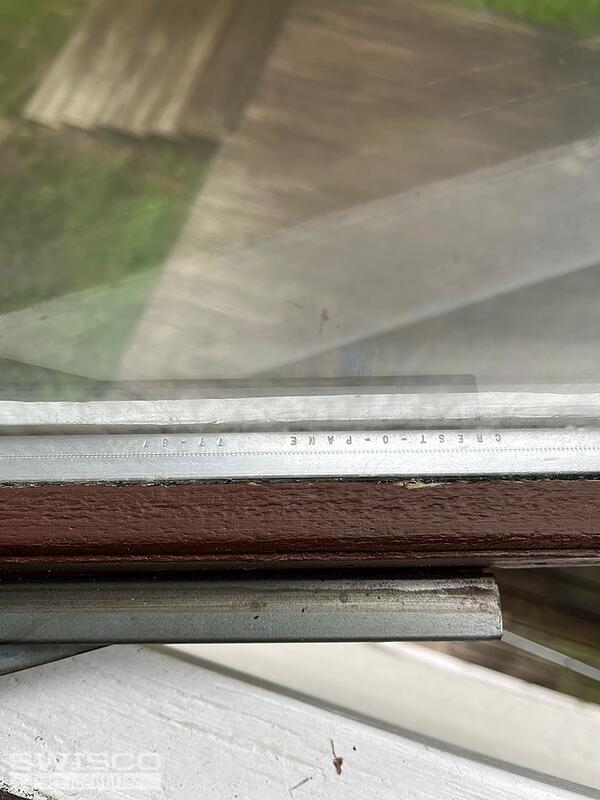

Crest o pane windows installed in 1977. Windows are foggy, cranks are not smooth and locks are tough to close. Would like to know the replacement parts for all of these. There are windows that open the other way so cranks are opposite.
4 user uploaded images
4 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Thanks for posting. The casement operator might be either the 39-028E and 39-027E, or the 39-014 and 39-013. The difference between these two sets of operators is the arm length, as displayed below. Compare with your old hardware to see if either matches what you have.

Dimensions for 39-028e
Dimensions for 39-028e
Dimensions for 39-014
Dimensions for 39-014

Compare your old casement locks with our 38-098 and 38-097 Entrygard Locks. For a new keeper that works with these locks, see the 38-079.

Finally, fogging glass might indicate the mold around the glass in the sash frame is compromised. We cannot help with this, but if you take the sash to a local glass shop, I believe they should be able to repair this for you. Let me know if you have further questions.

Quick Learner from Minnesota
Thank you for your thorough and quick response! Do you sell any other colors or finishes for the locks and cranks? It would be nice if they were similar to what we have now if we don't want to replace both right away.
Thanks.
Bob
Bob from SWISCO
SWISCO
Expert

I'm afraid not. Truth made these operators in many color finishes in the past, but modern windows really only use white. At this time we can only offer the colors we show on our site, as they're the only ones available from the manufacturer anymore.

I'm very sorry for the inconvenience.
