Custom balance

Quick Learner

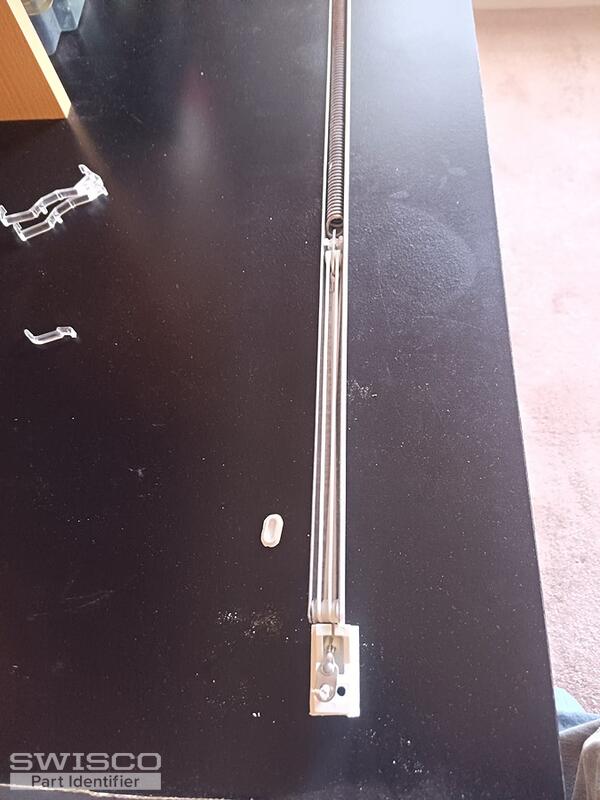

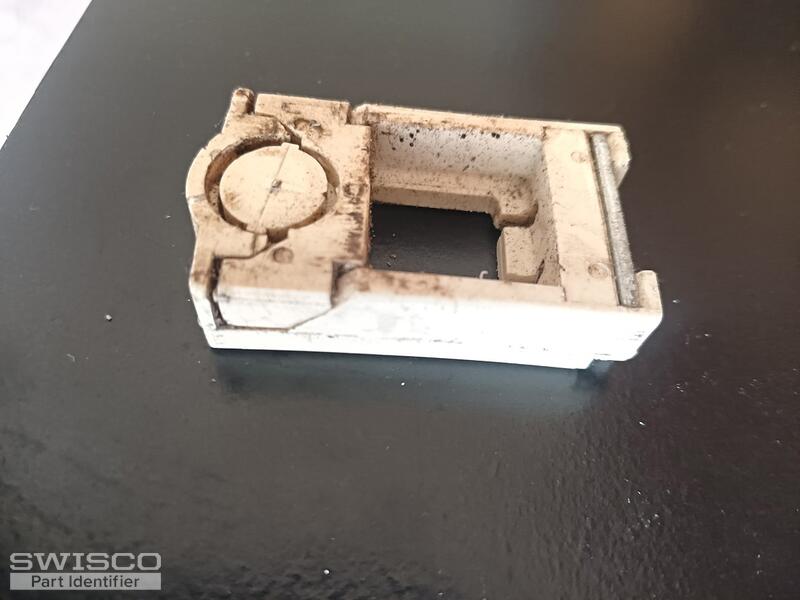

Trying to find the shoe for this balance 26 5 JW CMC 10
The balance is 27" long
5/8" tick on top
3/4" tick on bottom
5 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

The balance you have here is the S765-27 Balance. This is used along with the 15-046 Pivot Shoe which is typically used along with the 26-040 Pivot Bar. The piece at the top of the balance is the 26-053A Balance Stop; you'll need to hold onto the screw cover as this stop does not include one.

You can select the 26-5 stamp option.

Alternate image for 15-046
Alternate image for 15-046

Dimensions for 26-040
Dimensions for 26-040
