Double coil balance

Quick Learner from Pennsylvania

Apr 13, 2025 4:23 pm

Hi, I need to replace these on my window. It appears to be stamped #5 but the only #5 option I found on your website only had a single coil, but this one had two. Not sure what I should be buying

2 user uploaded images

4 Replies

Bob from SWISCO

Apr 13, 2025 9:07 pm

Thanks for posting. This looks like the 15-199 Pivot Shoe. Are the coil springs 3/8" thick? If so, they are the Series 165 Coil Balance springs sold separately. For coils stamped #5 use the S165-5 5 pound spring. For a new double coil cover, see the 15-204. Let me know if you have further questions about this hardware.

Quick Learner from Pennsylvania

Apr 14, 2025 7:23 am

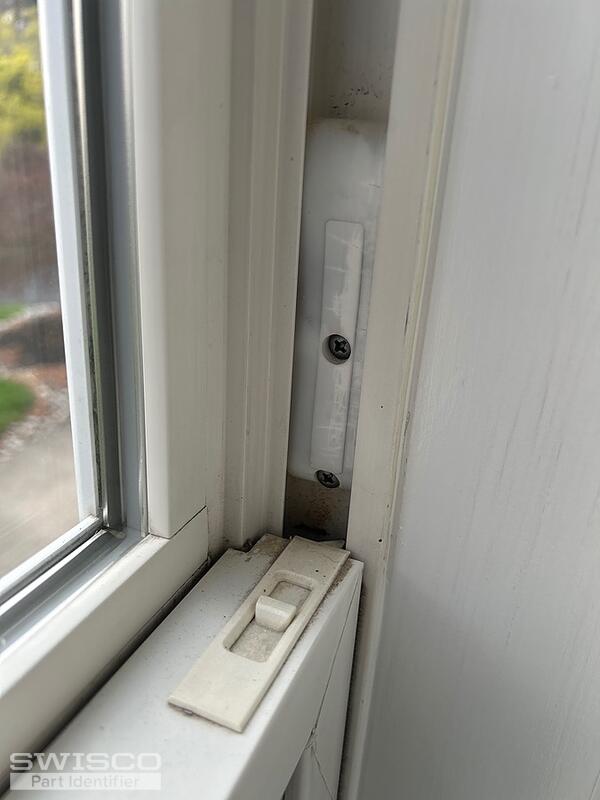

Hey thank you, that looks correct! However the double coil cover pictured looks like it only has one screw hole and the ones I have in my other windows had two. Does that matter? See picture

2 user uploaded images

Bob from SWISCO

Apr 14, 2025 3:02 pm

Not really. It's possible these windows have triple coil setups, or they are just an older design. If your coils on the balances you are replacing are 3/8" thick and therefore the Series 165, and there are just two coils per side, then the 15-204 should work just fine.
