Double coil balances

A quick learner from Gila, NM says:

January 8, 2023

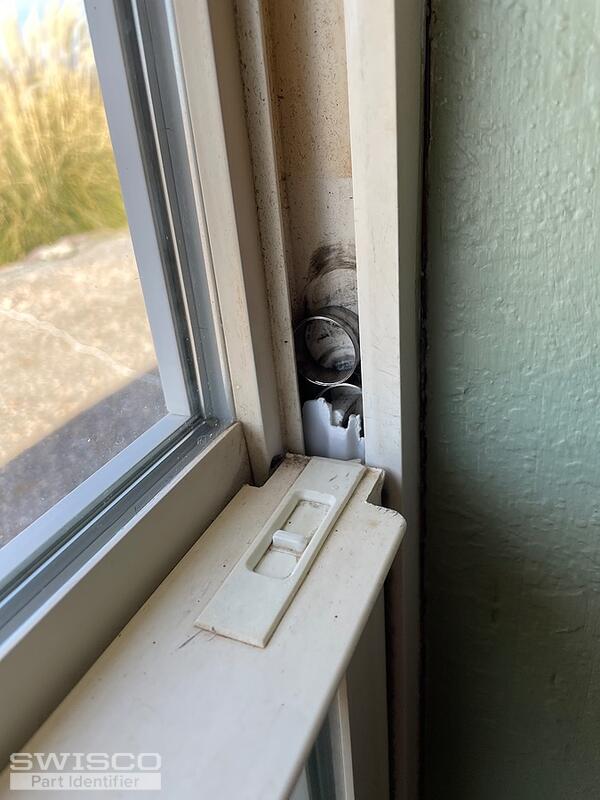

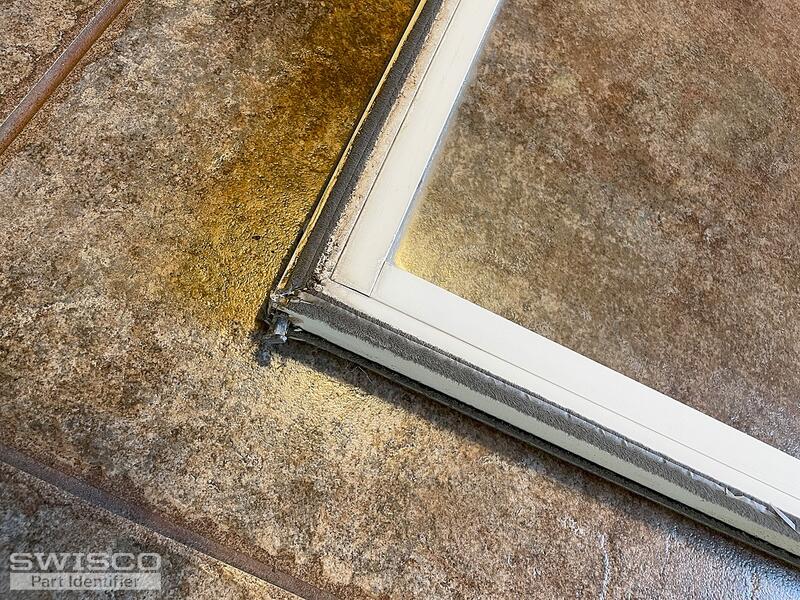

I need to replace at least the covers of these balancers, which have degraded and crumbled from UV exposure. I think the coils themselves as well as the coil shoes are still good, but I'm happy to replace those as well if that makes more sense.

Thumbnail of the uploaded file named 1FE6AB88-C0C3-4FD7-85A9-704FBDB8866C.jpeg

Thumbnail of the uploaded file named 794D66D1-9A22-4BB0-80F2-BC978DE9FE2D.jpeg

Thumbnail of the uploaded file named ABBED588-B8BF-4266-8030-9741CAF723FC.jpeg

Thumbnail of the uploaded file named 79415FDB-E8FD-42C6-BAD3-93BD22E4108E.jpeg

Thumbnail of the uploaded file named E56951A0-9966-4D96-B8DE-1C4FA2CD2275.jpeg

Emily from SWISCO responded:

January 10, 2023

Hello there!

Your pivot shoe appears to match our 15-199 which is designed to use the 1/2" Series 160 and 3/8" Series 165. If you only need the coil supports and if your spring band is 1/2" wide, see the 15-150D. If it's 3/8", see the 15-204 instead. Keep in mind, you only need to replace what is broken.

A quick learner from Gila, NM says:

January 11, 2023

Thanks!

Pivot Shoe, 17/32" Thick

15-199

$3.70

3/8" Coil Dual Support

15-204

$1.88

1/2" Coil Double Support

15-150D

$1.57
