Entire crank unit needs replacing. : SWISCO.com

Handy Person from Madison, wi

Aug 2, 2021 2:03 pm

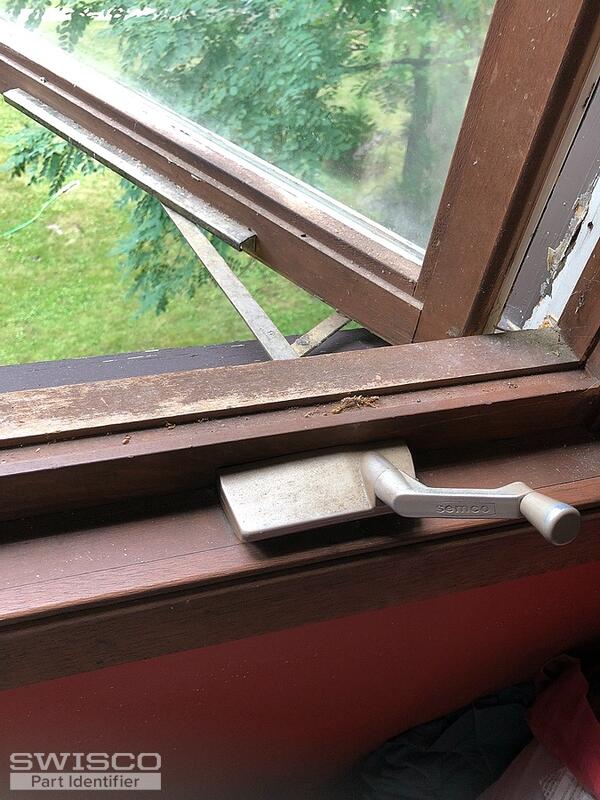

Entire crank unit needs replacing. Two or tree turns before engaging and slips when trying to complete closure, so closing is not possible using only crank

1 user uploaded image

4 Replies

Bob from SWISCO

Aug 5, 2021 2:42 pm

Start by looking at our 39-013 and 39-014 Straight Arm Operators. These operators have straight arms that are 13-1/2" long. Please compare to your old hardware and see if these match what you need.

Handy Person from Madison, wi

Aug 13, 2021 1:28 am

Thanks, Bob.

The customer measured the arm on the current crank, and it's actually closer to 9". Do you have one like that? Also, please note that the current assembly has a second bar attached (pic in original query.)

Thank you,

Tom

1 user uploaded image

Bob from SWISCO

Aug 13, 2021 8:42 am

Sure, how about our 39-027E? This has a 9-1/2" long arm if you measure to the gear, as shown below. We also sell the 39-028E for the opposite side.

Dimensions for 39-027e
