Help identifying replacement part

Question

Hello, the plastic piece around my pivot shoe on my window balance broke. The balance coil itself is stamped with “406L”. I need help identifying the part that can replace the plastic piece that broke. Thank you!

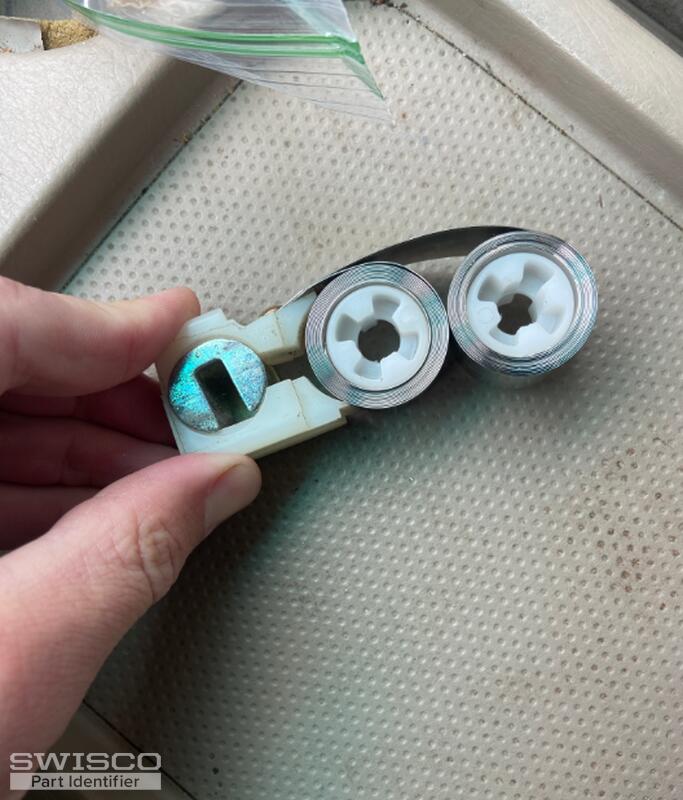

Here’s what the balance looks like when the plastic is not broken

Jasmine · Accepted Answer

Hey there,

Thanks for posting! You have an older discontinued, Simonton coil balance assembly. We suggest using the 15-259 Coil Balance Pivot Shoe to replace the one you have.

You'll need to replace the pivot bar with the 26-083 since your existing pivot bar will not be compatible.

Dimensions for 15-259

This should is compatible with the Series 159 Coil Balance. The S159-06 will replace the coil marked with the 406L stamp, but you'll need to double check that the other coils has the same stamp. You may also need the 15-256 to replace the cover, if your assembly uses one.
