Wright 9389 actuator

Question

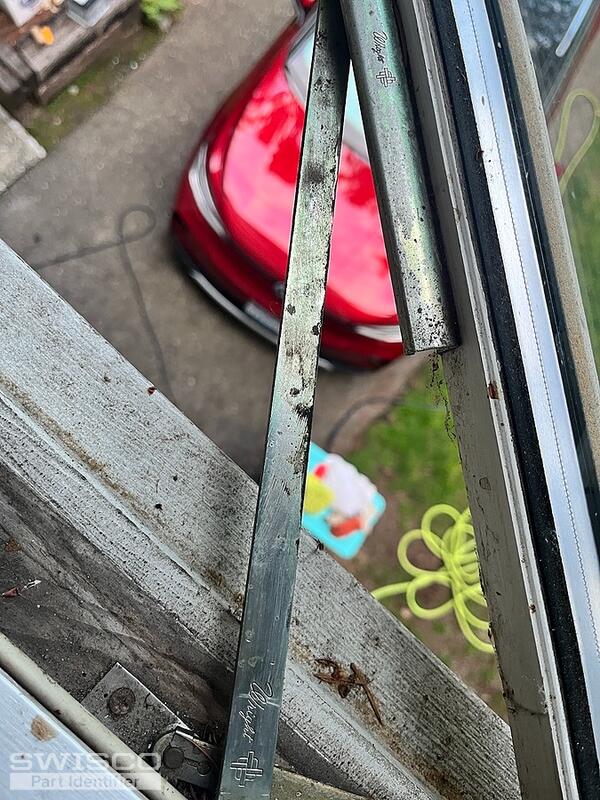

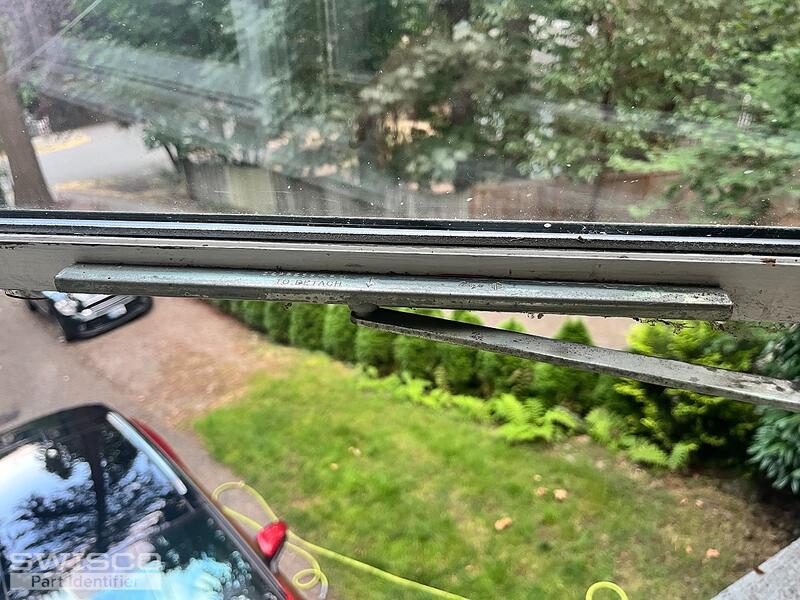

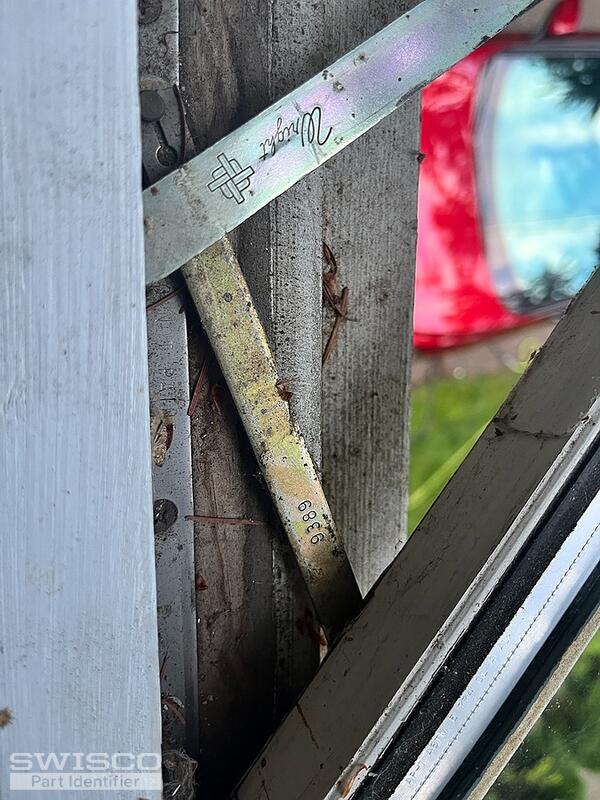

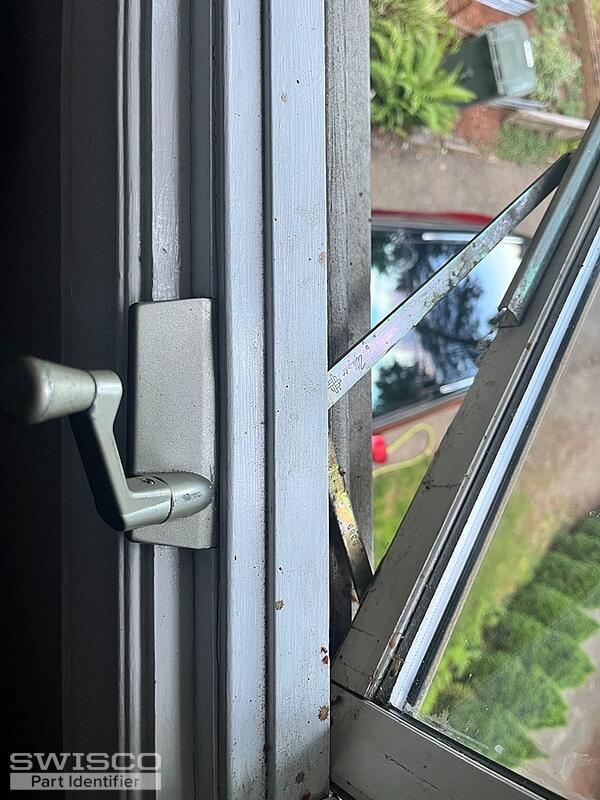

Hello.  I have a wood framed window, gold colored crank, and single arm bearing the name Wright and the number 9389 on it.  Looks like I need two of these, the handle turns but feels like the gear teeth have worn away.

Casey · Accepted Answer

Hello,

Your operator is a similar style to the 39-013 and 39-014 Straight Arm Operator, which measure 13-1/2" long.

Dimensions for 39-013

We also offer the 39-027E and 39-028E operators with 9-1/2" arms. Take a look and compare both options to your original hardware to see what matches best. In either case, see the 39-114L used with both sets of operators. Thanks for posting!

Dimensions for 39-027e
