Hurd double casement replacement help

A home owner from New York says:
March 28, 2021
Hello,

We need help deciding on which parts to get to replace the the entire crank mechanism (hinge arms, track, operator) on our 1980's Hurd double casement windows (left and right). Could someone help with this?

Double casement widow width each 17.5"
Hurd windows
House built in 1982-4

Thank you
Thumbnail of the uploaded file named D9B9A065-C98C-4A4B-ACB1-B5384A494AE3.jpeg
Thumbnail of the uploaded file named 78EA761A-7709-4BCF-8A81-A3F3B723F693.jpeg
Thumbnail of the uploaded file named 1080E97D-4A7F-4A71-99F4-5D3D1AA960C0.jpeg

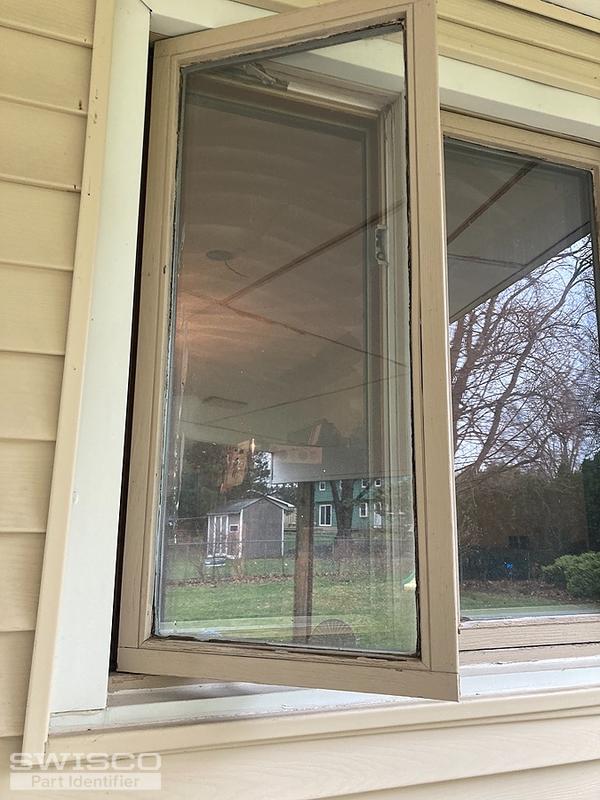

Thumbnail of the uploaded file named 8D12081C-8738-469A-81ED-3949F83E13CD.jpeg
Profile picture of Bob
Bob from SWISCO responded:
March 30, 2021

Hello there. For the operators, look at either our 39-027E and 39-028E 9-1/2" straight arm operators, along with their 39-533 track; or the 39-013 and 39-014 13-1/2" straight arm operators with the 39-505 track. Compare the dimensions to see which set you need. For a new hinge set, check out the 36-004-10; see if these dimensions match.
10" Stainless Steel 2 Bar Hinge Set
10" Stainless Steel 2 Bar Hinge Set
36-004-10
$19.93
Ellipse Style Single Arm Operator, 9-1/2"
Ellipse Style Single Arm Operator, 9-1/2"
39-027E
$20.70
Ellipse Style Single Arm Operator, 9-1/2"
Ellipse Style Single Arm Operator, 9-1/2"
39-028E
$20.70
Casement Window Operator, 13-1/2" Arm
Casement Window Operator, 13-1/2" Arm
39-014
$20.70
Casement Window Operator, 13-1/2" Arm
Casement Window Operator, 13-1/2" Arm
39-013
$20.70
Crank Handle, 11/32"
Crank Handle, 11/32"
39-114L
$4.42
11-3/8" Casement Operator Track, 3 Hole
11-3/8" Casement Operator Track, 3 Hole
39-533
$2.95
11-3/8" EntryGard Track, 4 Hole
11-3/8" EntryGard Track, 4 Hole
39-505
$3.70
