I believe it is a Simonton Window

Home Owner from Olathe, KS

Sep 26, 2022 10:24 am

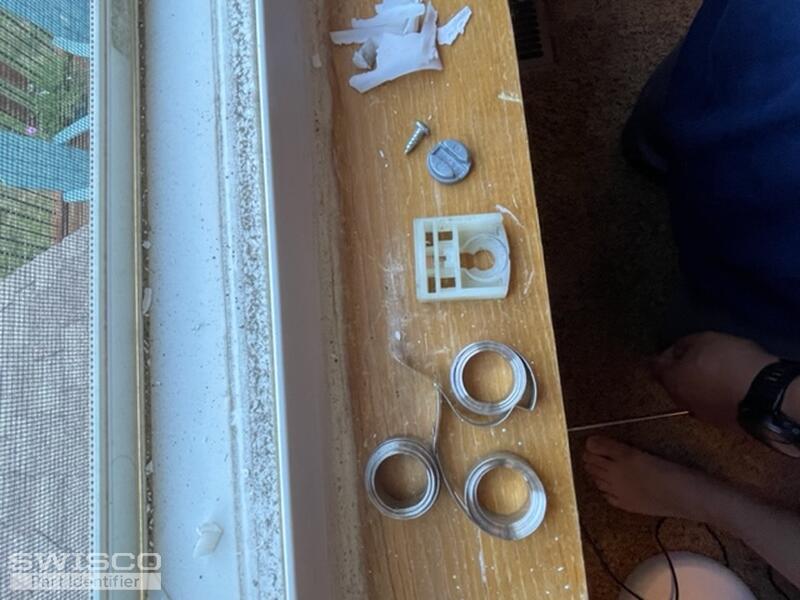

Piece broke in the track of the window. Went to shut window and wouldn't shut. The entire piece on the left side of window cracked and am hoping I can just replace that piece.

3 user uploaded images

4 Replies

Emily from SWISCO

Sep 29, 2022 12:40 pm

Hi there!

It looks like you need a new coil support. We can help but we'll need to see a photo of your pivot shoe removed from the window track to compare to our inventory. That will help us identify the needed coil support.

Thank you!

Home Owner from Olathe, KS

Oct 2, 2022 6:41 pm

2277 is the other side of the window that isn't broke. Basically the piece disintegrated. Hope you can figure out what it is.

3 user uploaded images

Emily from SWISCO

Oct 3, 2022 8:14 am

Thanks for the additional photos! This is a huge help. I recommend our 15-199 that's used with our 1/2" wide Series 160 and 3/8" wide Series 165 coil springs. It appears you have a triple coil assembly which means you'd want either the 15-150T for 1/2" wide springs or 15-205 for 3/8" wide springs. Look these parts over and see what you think.
