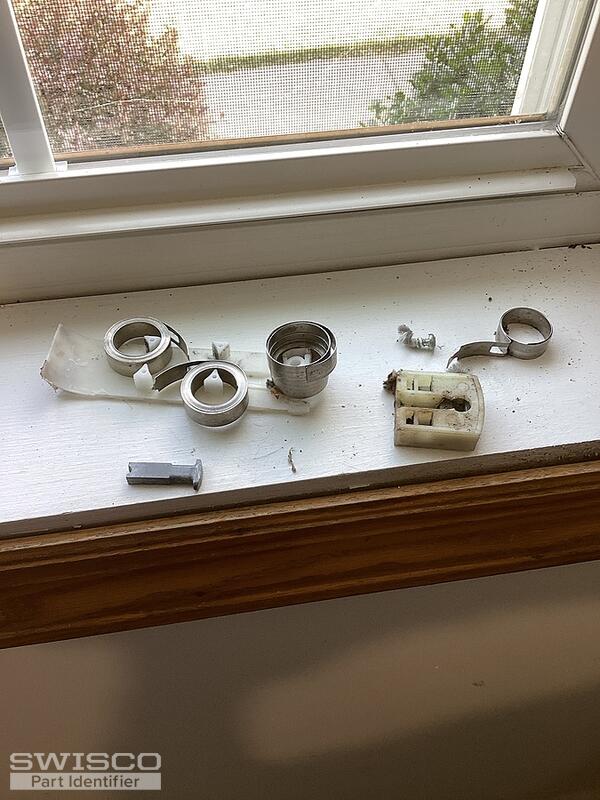

Looking for Simonton triple coil balance,t bar and window sash holder.. on spring #4.0. 35"p..

Handy Person from Home owner
See sbove
1 user uploaded image
4 Replies
Lauren
Lauren from SWISCO
SWISCO
Expert

Hello, thank you for posting,

Please review the style of the 17/32" thick 15-199 pivot shoe that is compatible with the 3/8" thick Series 165 or the Series 160 1/2" thick coil springs. Compare the dimensions to confirm a good fit!

Alternate view of 15-199
Alternate view of 15-199

Match up the number on the coils to determine the weighted options needed. See the compatible covers on the Coil Series product page.

Also compare the dimensions of the 26-378 pivot bar. Please let us know if you have any additional questions!

Alternate image for 26-378
Alternate image for 26-378

Handy Person from Home owner

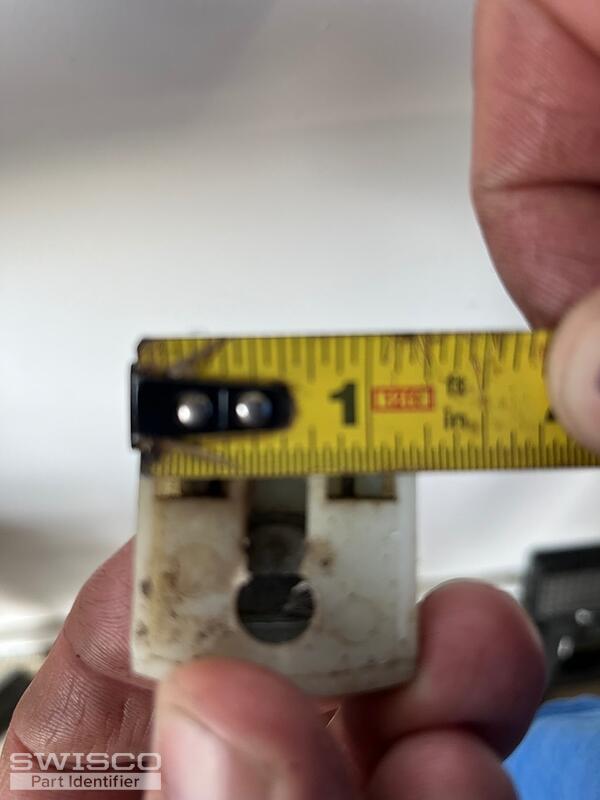

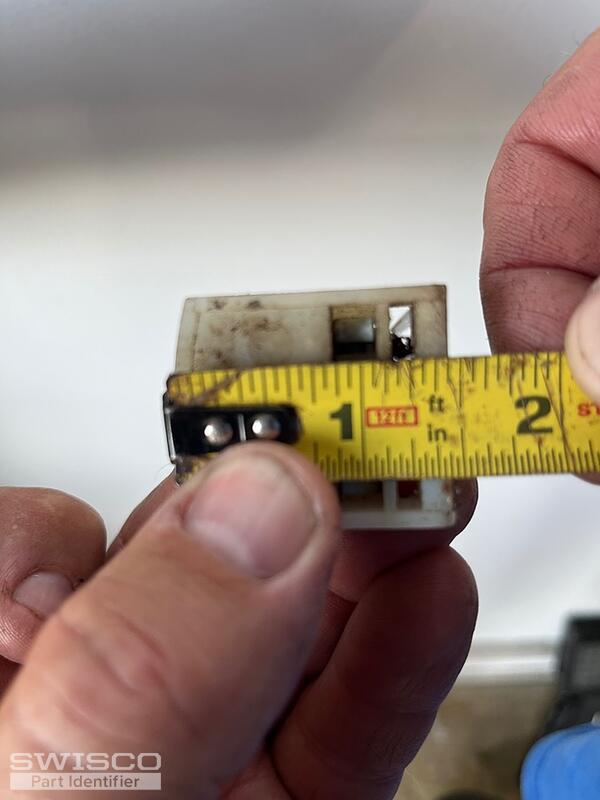

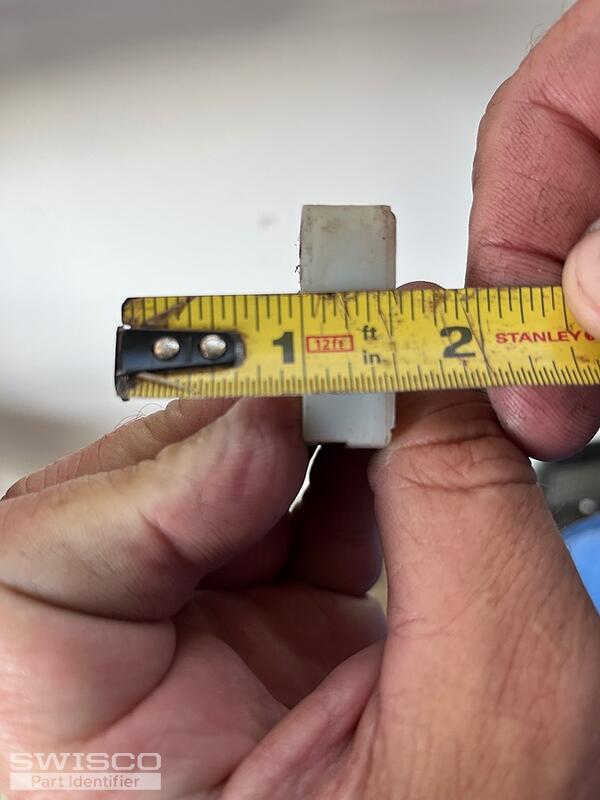

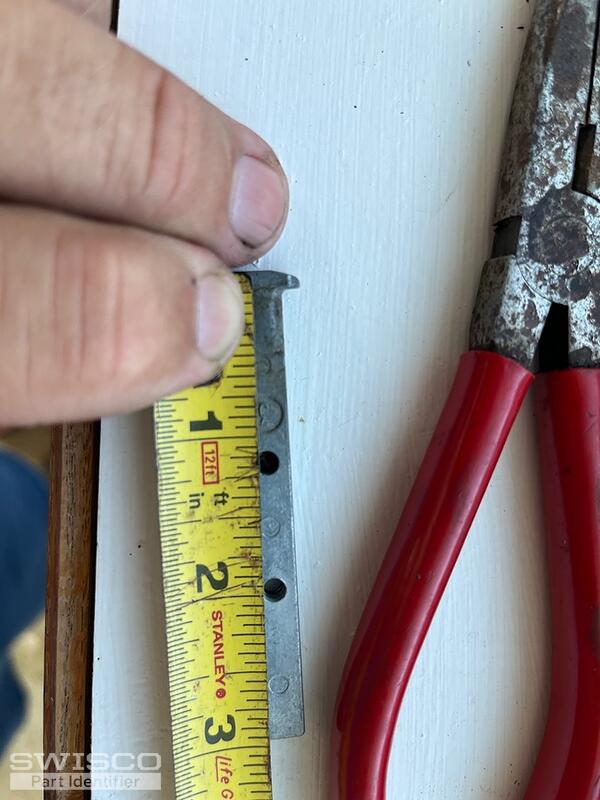

I believe those are the correct shoe and bar. How do I know what spring kit I need. Mine has 3 springs that are 3/8 wide. I need the plastic that the springs sit on too.I am doing 2 windows and need bars for only one window.ty
4 user uploaded images
Lauren
Lauren from SWISCO
SWISCO
Expert

Thank you for confirming,

With a 3/8" thick coil, you will need the Series 165 coil springs? Are all three coils stamped with the number #4? If so, see the S165-4 coil along with the 15-205 triple support.

This will give you 12 pounds of support on each side for a total sash weight of 24 pounds. If there is any uncertainty, we recommend weighing the sash to confirm the sash weight.

Please review and let me know if you have any additional questions!
