Missing Part On Casement Window

A quick learner from Texas says:
May 9, 2018
Can you advise what I need?

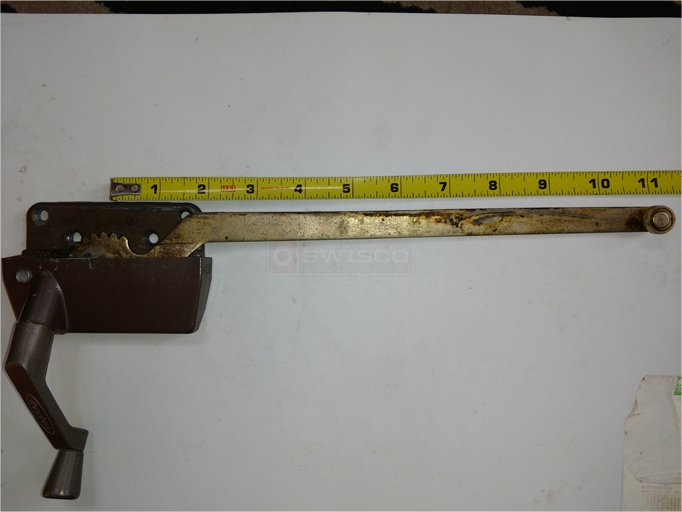

Thumbnail of the uploaded file named lord 2.jpg
Thumbnail of the uploaded file named Lord 3.jpg
Profile picture of Tom
Tom from SWISCO responded:
May 14, 2018

Hi- thanks so much for posting!

I'm going to have you start by looking at our 39-013 and 39-014 casement window operators. Take a look at those and compare them to what you have. It is very important that you confirm size and that the wheel bearing at the end of the arm is the same before you go ahead and purchase this.

Get back to us if you have any questions.
A quick learner from South Carolina says:
May 15, 2018

Tom, the arm on my window has a bend of appx 45 degrees. The length before the bend is about 7 3/4 inches. The new photo shows the arm from the outside looking into the casing.

Can you advise?

User submitted image of their window hardware.
Profile picture of Tom
Tom from SWISCO responded:
May 16, 2018

Ah, I see what you mean. There does appear to be a bit of an offset near the gear. Does that offset go up, or down? We have two operators in this style with an offset that goes up. See our 39-413 and 39-412. However, they only have 9-1/2" long arms. Could you still get them to work?
Casement Window Operator, 13-1/2" Arm
Casement Window Operator, 13-1/2" Arm
39-013
$20.70
Casement Window Operator, 13-1/2" Arm
Casement Window Operator, 13-1/2" Arm
39-014
$20.70
Offset Single Arm Operator, 9-1/2
Offset Single Arm Operator, 9-1/2
39-413
$27.20
Offset Single Arm Operator, 9-1/2
Offset Single Arm Operator, 9-1/2
39-412
$27.20
