Need assistance with Simpton window parts

A quick learner from Summit Point, WV says:
August 11, 2020
I have Simpton windows in my house. They were new in 2000. Many of the plastic parts now need to be replaced due to age, cracking, and breaking. Can you provide me with the part information?
Thumbnail of the uploaded file named 20200811_112445.jpg
Thumbnail of the uploaded file named 20200811_112504.jpg
Thumbnail of the uploaded file named 20200811_112516.jpg

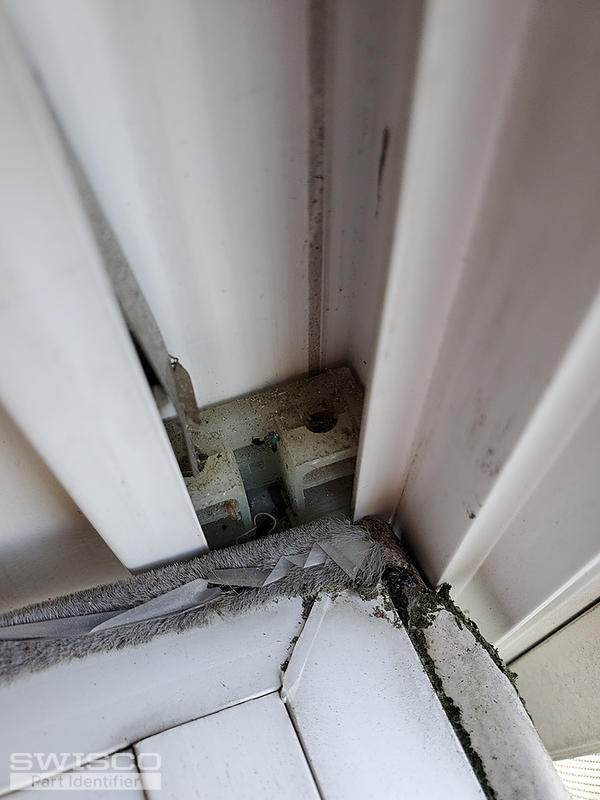

Thumbnail of the uploaded file named 20200811_112535.jpg
Profile picture of Tom
Tom from SWISCO responded:
August 14, 2020

Sure, we can help. Looks like you need new tilt latches and a new coil balance system. Starting with the tilt latches, see our 26-243 and 26-244.

As for the coil balance, that's a little trickier. Your pivot shoe looks like our 15-199, but this is compatible with two different springs: the 1/2" Series 160 and the 3/8" thick Series 165. You'll have to measure your spring to confirm the best match. Additionally, the 1/2" spring works with the 15-150D cover and the 3/8" spring works with the 15-204 cover.
Pivot Shoe, 17/32" Thick
Pivot Shoe, 17/32" Thick
15-199
$3.70
Tilt Window Latch, Left Hand
Tilt Window Latch, Left Hand
26-243
$2.70
Tilt Window Latch, Right Hand
Tilt Window Latch, Right Hand
26-244
$2.70
1/2" Coil Double Support
1/2" Coil Double Support
15-150D
$1.57
3/8" Coil Dual Support
3/8" Coil Dual Support
15-204
$1.88
