Pivot bar

Start a new Discussion

Quick Learner from Minnesota

Sep 20, 2023 8:24 am

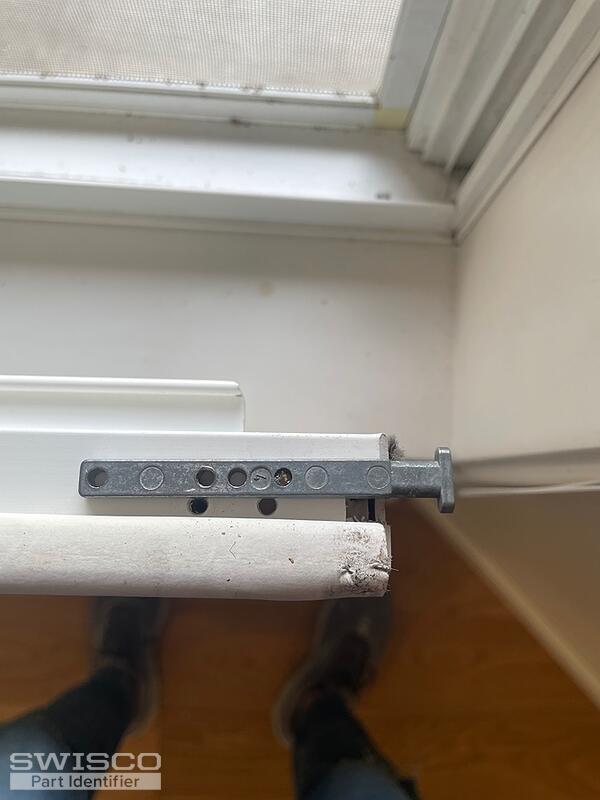

Do you have a match for this pivot bar? The length is 2 1/2 inch or 3". I need to verify that for you.

2 user uploaded images

10 Replies

Emily from SWISCO

Sep 21, 2023 10:57 am

Hello there!

We don't sell a direct match for this pivot bar. Would it be possible to see a photo of an undamaged version removed from the window sash? It may also be helpful to see the pivot shoe.

Thank you!

Quick Learner from Minnesota

Sep 22, 2023 4:00 pm

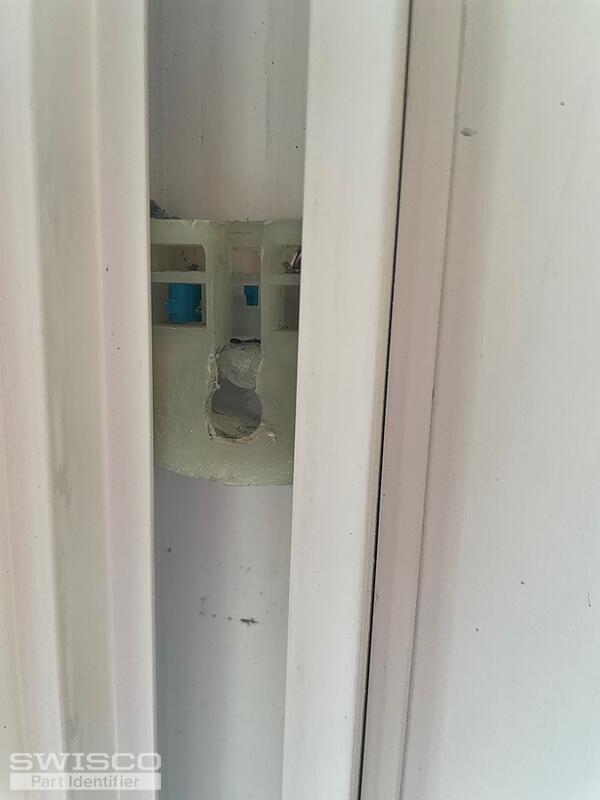

Here you go. Are my pivot shoes damaged? Is the cam supposed to be closed on the shoe?

3 user uploaded images

Emily from SWISCO

Sep 25, 2023 11:42 am

Thanks for getting back to us! Our 15-199 pivot shoe resembles what you show here. This is compatible with the 26-378 which looks similar to your old pivot bar. I'm afraid I don't understand your question, however. Can you tell me what you mean by "closed"?

Quick Learner from Minnesota

Oct 10, 2023 5:03 pm

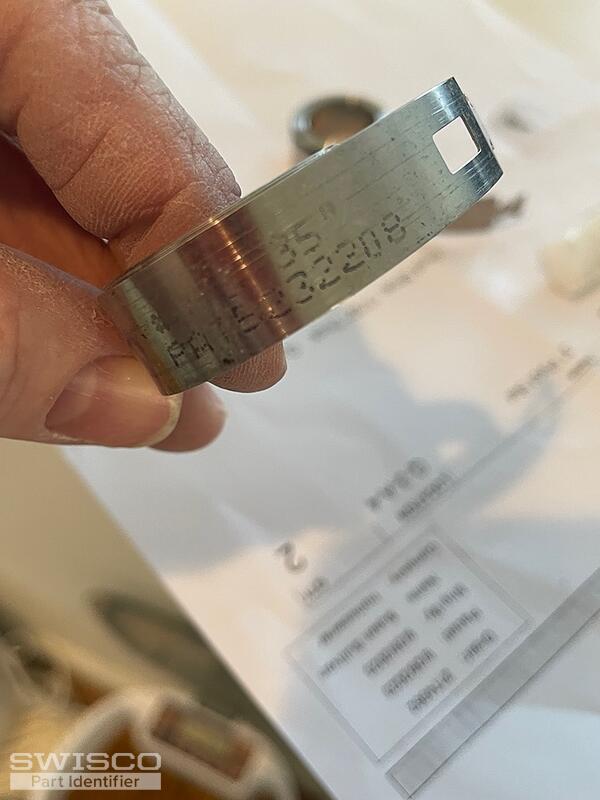

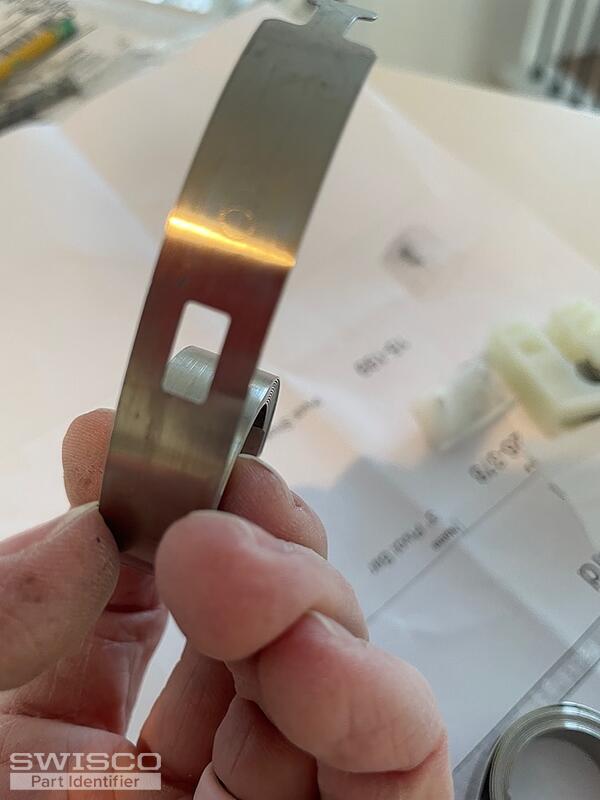

Looks like I broke the double spring. Do you have this?
#6 and 35"

2 user uploaded images

Emily from SWISCO

Oct 11, 2023 8:10 am

Sure, the 15-199 uses either the 1/2" Series 160 or 3/8" Series 165 but the best match ultimately depends on the width of the coil spring band.

Quick Learner from Minnesota

Oct 14, 2023 10:02 pm

Thank you. I see now that I just need the bracket for double coil half inch. I think the springs are fine.

Emily from SWISCO

Oct 16, 2023 11:41 am

In that case, see the 15-150D double support used with the S160 coil springs.

Quick Learner from Minnesota

Oct 22, 2023 7:22 pm

I have everything installed but not working. I don't think the pivot bar is seating into the new pivot shoe. When I asked about a shoe being open or closed I meant how the U shape of the shoe looks when you put the bar into it. Is it U shaped with an opening at the top to accept the bar? The shoes I have don't have a U shaped opening at the top of the metal part. Do I turn the cam?

Emily from SWISCO

Oct 23, 2023 9:29 am

It sounds like the cam is in the locked position. You want to make sure it's in the unlocked position by turning the cam as you mentioned. Let us know if this helps or if you have any other questions.
