Pivot shoe and metal piece

Start a new Discussion

Landlord from Trenton nj

Aug 12, 2013 11:45 am

I need the pivot show and the metal piece that goes into it
It's a American Craftsman by Anderson window
Thanx

User submitted photos of window hardware.

8 Replies

Tom from SWISCO

Aug 13, 2013 1:34 pm

Thanks for posting. Could you give me the width and depth of your pivot shoe? I would also like to see it removed from the window, if possible. As for the pivot bar, can I see a picture of one that is undamaged? I can't quite tell what you have by a broken piece. Let me know!

Landlord from Trenton

Aug 14, 2013 10:35 am

It's 3 inches long and a 1&12 inches wide
That's the whole piece I'm working on getting it out but for now that's what I got.
The bottom piece is 1&1/2

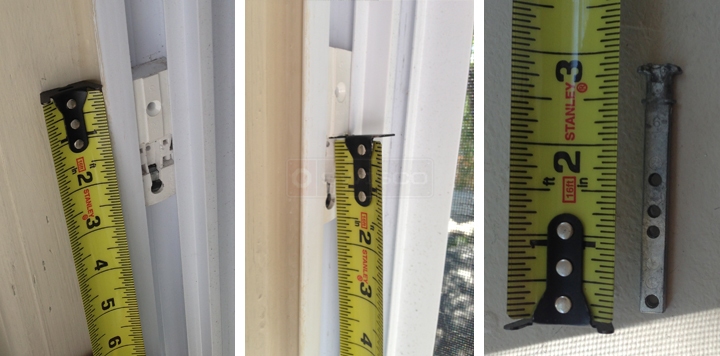

As for the bar it's 3 inches see pic

Tom from SWISCO

Aug 15, 2013 1:32 pm

Thank you for the images. For the pivot bar, check our our 26-378. Does that look similar to you? If so, you might also want to check our our 15-199, though I can't quite tell if that can be a match for you. I would have to see the pivot shoe fully removed from the window.

You could also consider our Series 140 coil series with a new tilt bar, however you will have to double check all the dimensions to make sure it will fit.

Landlord from Trenton

Aug 15, 2013 2:50 pm

Please see pics

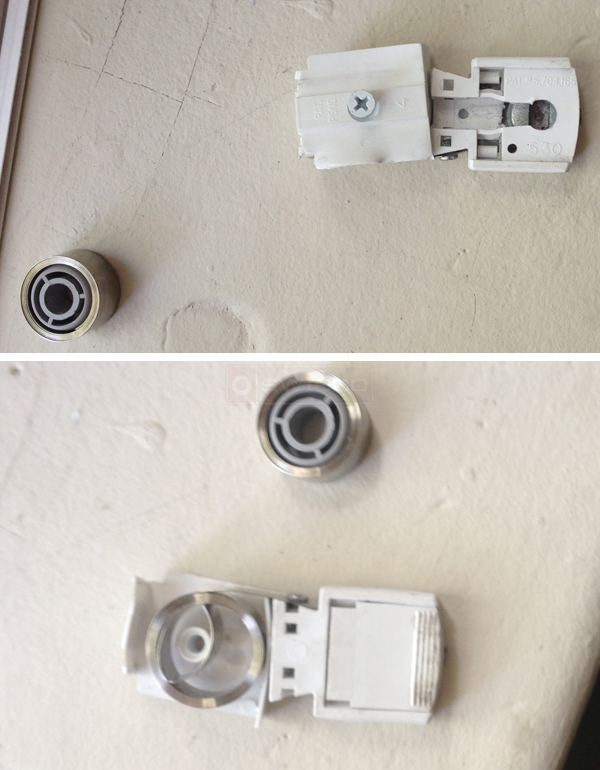

User submitted photos of a coil balance.

Paul from SWISCO

Aug 19, 2013 9:28 am

Ah, I see. This is a huge help! I think I recognize this balance type. This style was made by Unique Mfg., who have since gone out of business. We don't have an exact match, but I think you could consider our Series 140 and one of the related pivot bars. Check it out and let me know what you think.

Landlord

Aug 19, 2013 9:51 am

I think that will work but how do I know how many pounds?

Tom from SWISCO

Aug 19, 2013 1:29 pm

If there is no stamp printed on the coil springs themselves, then you will have to remove the sash and weigh it on a scale. Any common bathroom scale should do.
