Prism vinyl balance

A handy person from Bristol VA says:
Sash lock stamped Prism
No other markings on part
Thumbnail of the uploaded file named 27AF461F-27EA-450C-B8FD-687826A5E8CF.jpeg
Thumbnail of the uploaded file named 9CF833A1-6607-4020-A259-723E0D5731D4.jpeg
Thumbnail of the uploaded file named DF49B765-5DBB-4271-8C75-BE7EA086A8E2.jpeg

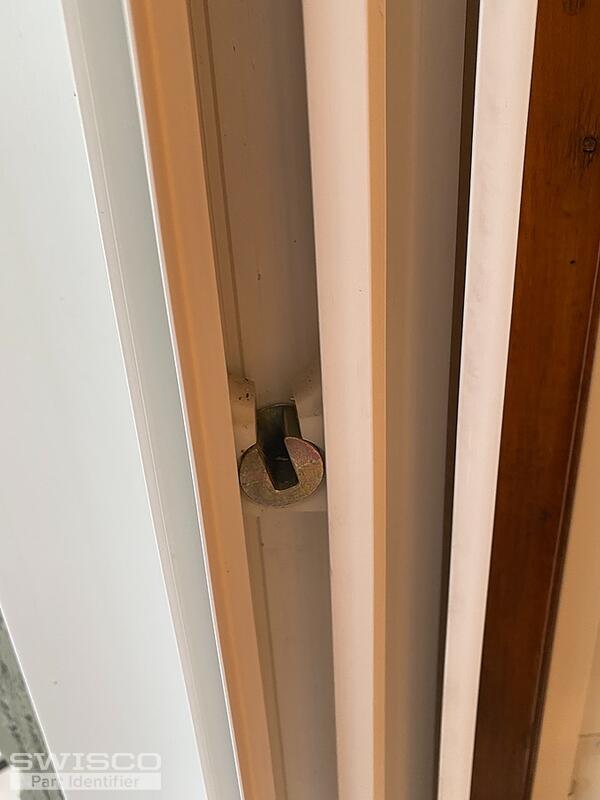

Thumbnail of the uploaded file named 45618792-796B-4A10-9F1A-979369DC5C34.jpeg

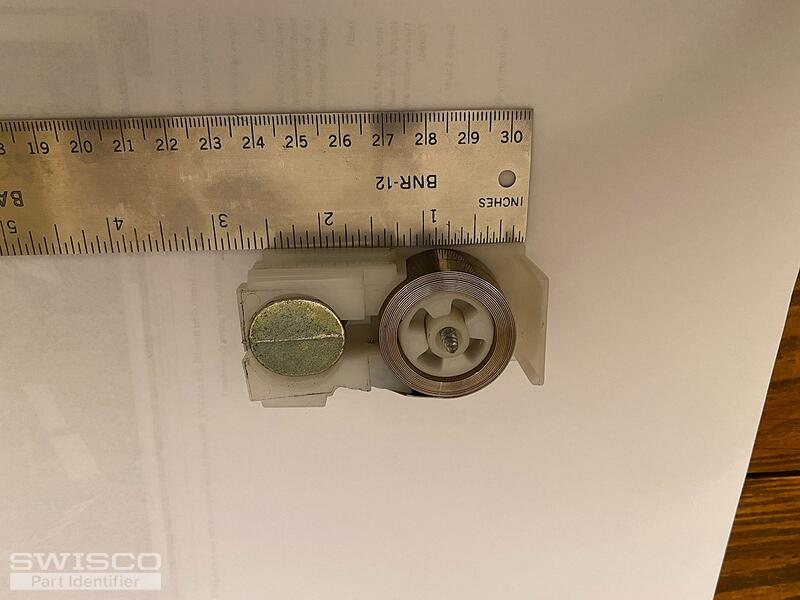

Thumbnail of the uploaded file named E26349E2-9ABC-4598-BC4C-C8D3327EF8FD.jpeg
Profile picture of Bob
Bob from SWISCO responded:

Thanks for posting. This looks a lot like our 15-192 Certainteed Pivot Shoe, and indeed that used to be what we would recommend. However, you have a specific version of this shoe, which was made by Simonton. As it turns out, it in fact requires a good amount of modification for the 15-192 to replace this Simonton shoe, and it can be quite troublesome to make work. Therefore, we recently started experimenting with alternatives. We now recommend the 15-259 pivot shoe, which should fit well in the track.

The 15-259 works with the Series 159 Coil Balances, which are housed by the 15-255 Single or 15-256 Double Supports. To know what spring weights to select, look for stamp codes on the tongues of the coil springs. If there are none, or you are unsure, give me the exact weight of the window sash that these coil balances support, and I'd be happy to work it out for you.

Note too that you will need to replace the coil balance assemblies on both sides of the window sash.

Finally, to use this assembly, the original pivot bars would need to be replaced with our 26-089. We are still in the early stages of confirming if this replacement is a good long-term solution but we have high hopes that it will work with little need for modifications, if any. Take a look and see what you think. If you decide to give it a try, we'd love to hear how it works out for you.
