Replace handles of 1984 milgard wood casement window

A home owner from Encinitas, ca says:
August 29, 2021

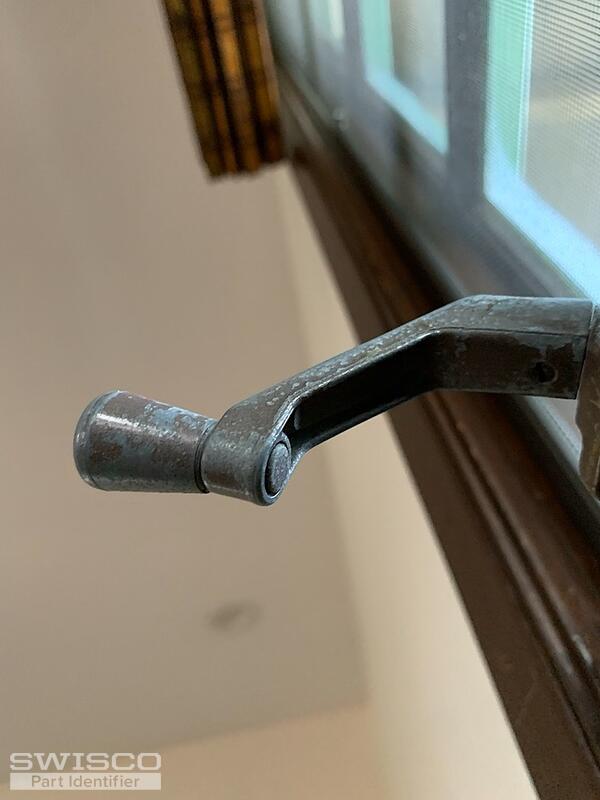

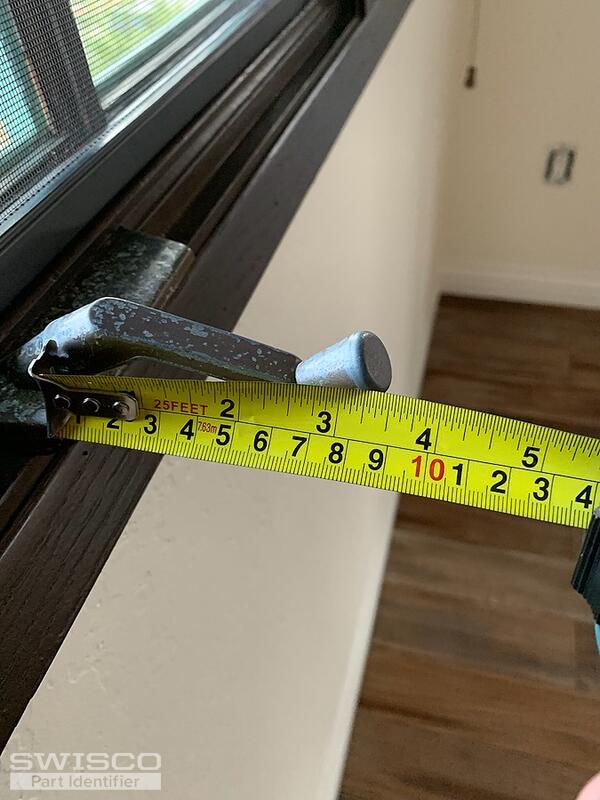

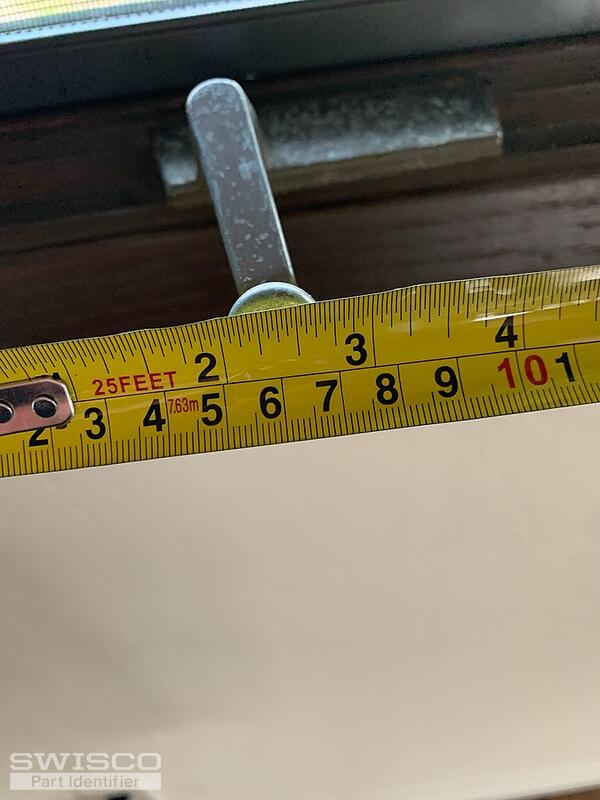

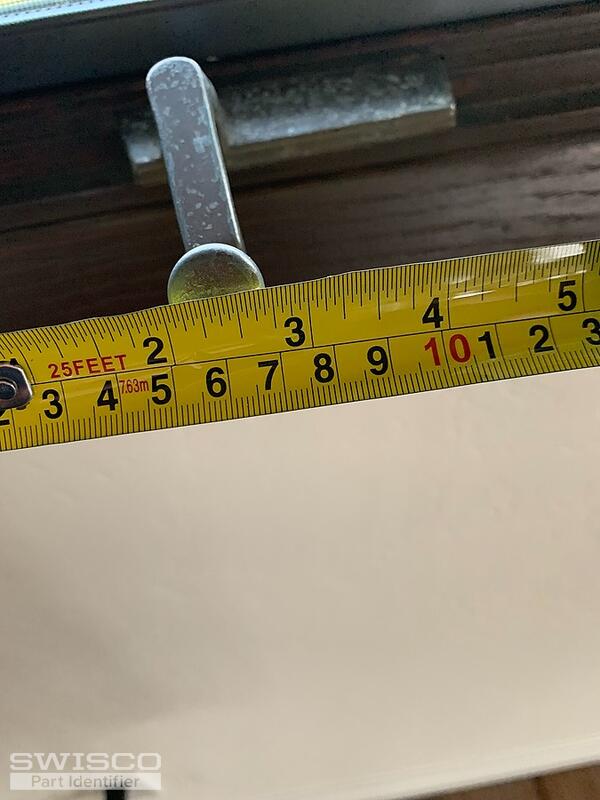

We need to replace our handles on 1984 wood casement milgard windows. Can you let us know what handles we need to purchase. Thanks Chris
Thumbnail of the uploaded file named C11294BB-CC1D-4E03-97ED-5D671A442024.jpeg
Thumbnail of the uploaded file named CAEB8F85-546F-4FBC-8828-F27DE22F2BFA.jpeg
Thumbnail of the uploaded file named 0988738D-F2A2-4D7C-81AB-4A9B3B3E7D2B.jpeg
Thumbnail of the uploaded file named 0F3E669C-46A0-4B78-B4CB-C6DB0F554979.jpeg
Profile picture of Emily
Emily from SWISCO responded:
September 2, 2021

Hi, Chris.

We'd be happy to help but we'd like to see a photo of your operator with the window open so that the arms that move the sash are fully visible. Once we can identify the operator, we can determine which handles are compatible with your assembly.

Thank you!
A home owner from Encinitas, ca says:
September 14, 2021

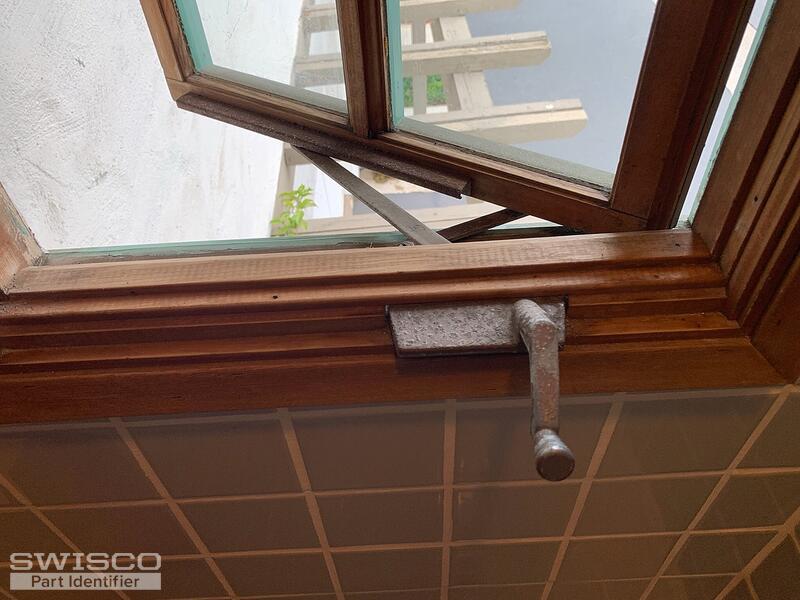

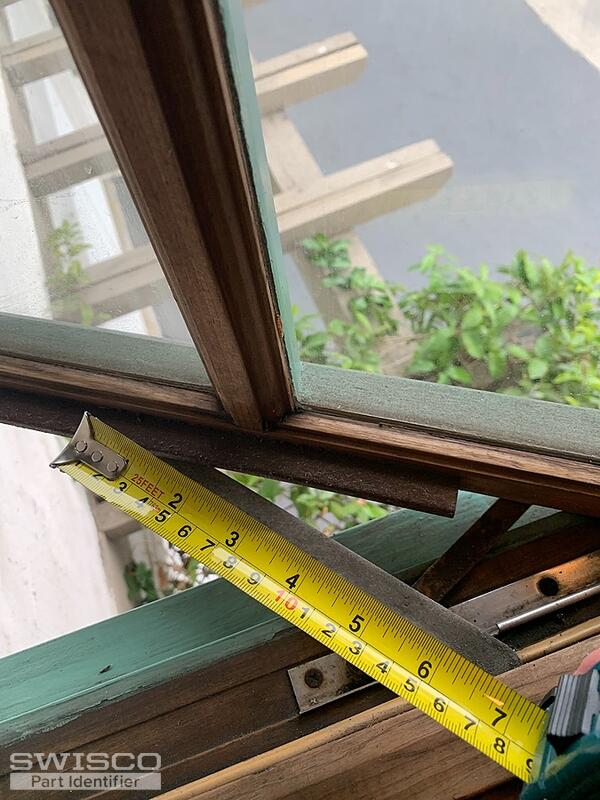

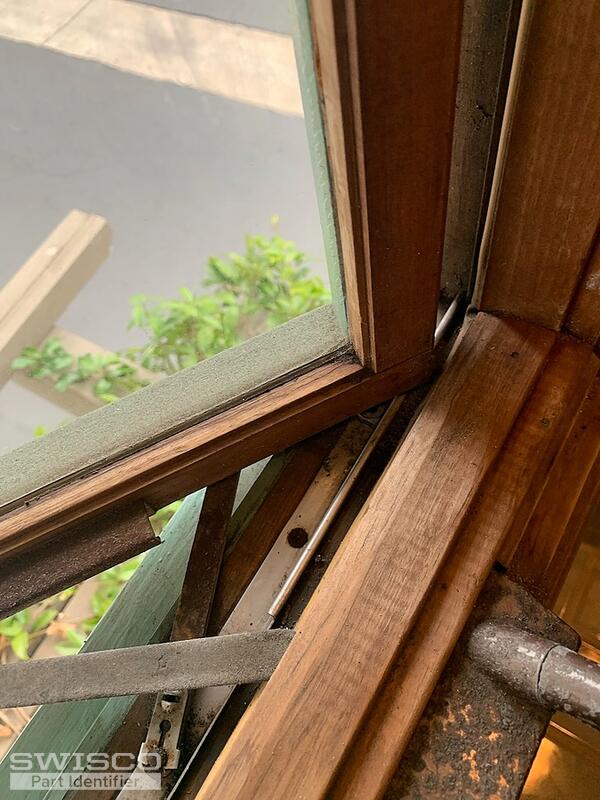

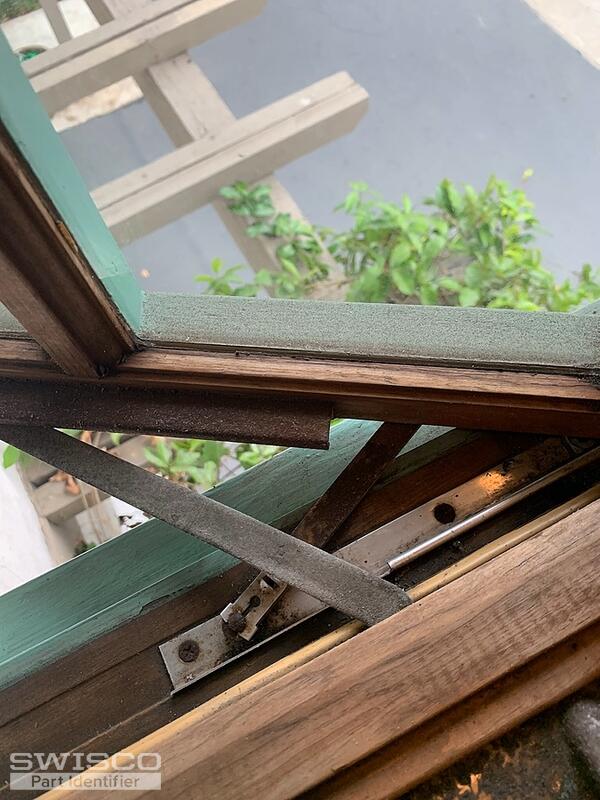

Hi here is pictures of the window mechanism. Thanks Chris
Thumbnail of the uploaded file named 780DF613-1DCC-493B-8311-75F5F4285FE7.jpeg
Thumbnail of the uploaded file named 1C6F13C5-8E1A-46AF-B29C-3D25BC8EC241.jpeg
Thumbnail of the uploaded file named 9687B582-8F45-443B-8302-11B57A1FA3BC.jpeg
Thumbnail of the uploaded file named 5C3512B5-ADBC-4D3F-964B-AD308654E446.jpeg
Profile picture of Emily
Emily from SWISCO responded:
September 14, 2021

Thank you for the additional pictures! This helps a lot. It looks like you might have our 39-254E & 39-255E or 39-027E &39-028E operators. These operators use the 39-114L crank handle and the 39-205 folding crank handle, depending on the style you prefer. Compare our dimensions to yours and see if these could be what you need.
Ellipse Style Single Arm Operator, 9-1/2"
Ellipse Style Single Arm Operator, 9-1/2"
39-027E
$20.70
Ellipse Style Single Arm Operator, 9-1/2"
Ellipse Style Single Arm Operator, 9-1/2"
39-028E
$20.70
Ellipse Style Single Arm Operator, 7-1/2"
Ellipse Style Single Arm Operator, 7-1/2"
39-254E
$28.15
Ellipse Style Single Arm Operator, 7-1/2"
Ellipse Style Single Arm Operator, 7-1/2"
39-255E
$28.15
Anatomy of a casement window
Anatomy of a casement window
VIDEO
WATCH >
How to identify casement and awning operators
How to identify casement and awning operators
GUIDE
READ >
