Home Owner from Sarasota FL

May 9, 2026 12:56 pm

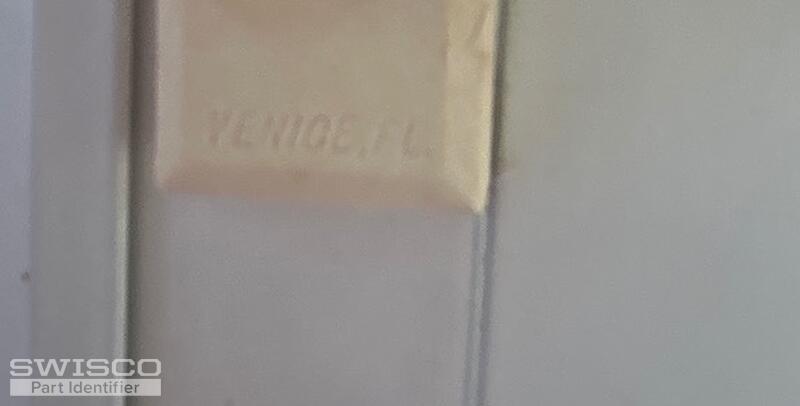

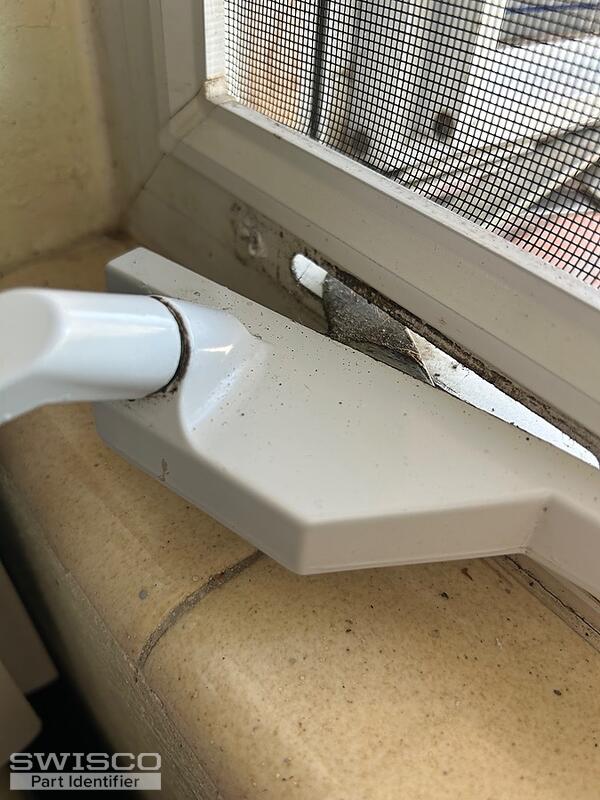

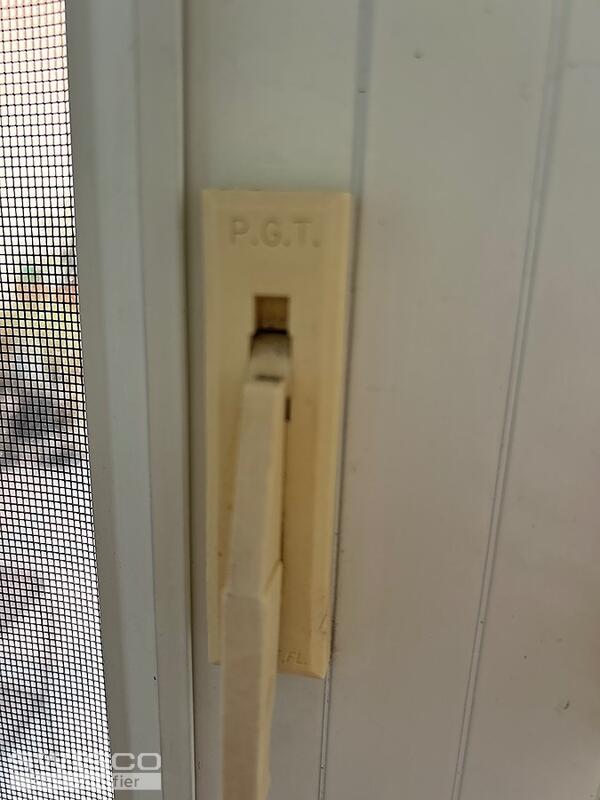

The screw on one side pulled loose and doesn't remain in place when window is cranked open or closed. On the window locks are the letters P.G.T. on top of the lock and Venice, Fl on the bottom of the lock. The stamp on the arm is no longer legible.

5 user uploaded images

4 Replies

Emily from SWISCO

May 14, 2026 11:41 am

Thanks for reaching out to us. We're happy to ID the operator, but we'll need to see a photo of the arm that pushes the window sash.

If you need the lock, we will need to see photos of how it latches to the window.

Home Owner from Sarasota FL

May 14, 2026 5:05 pm

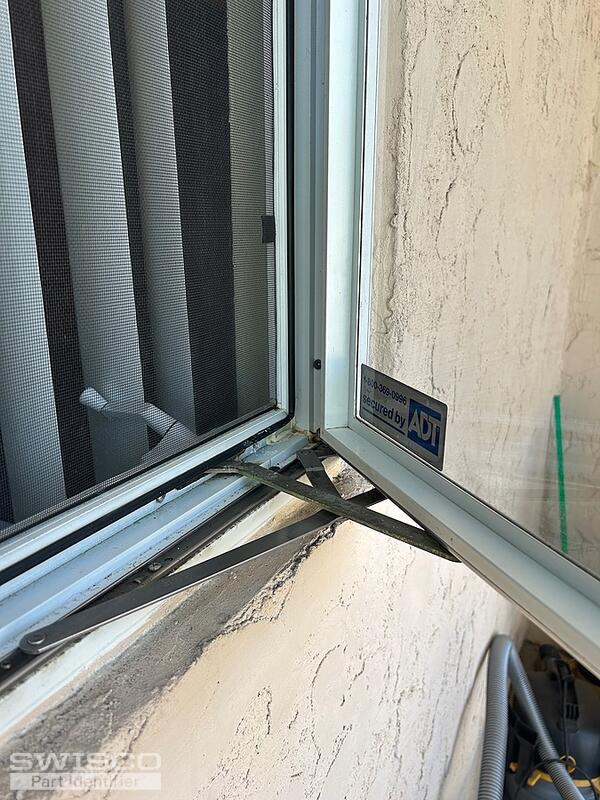

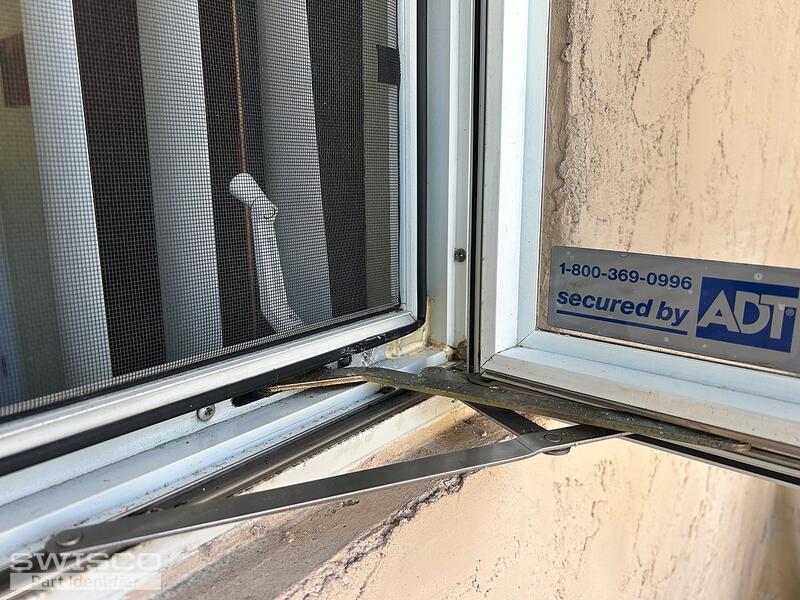

Additional photos of swing arm as requested. Lock is not needed.
Thank you.

4 user uploaded images

Emily from SWISCO

May 15, 2026 8:57 am

Thank you kindly! I'm unsure whether the hole in the vinyl frame or the mounting hole in the operator is stripped. You will have to inspect both holes carefully for any signs of wear or damage. You can also try installing the screw with the operator removed from the window to determine if the mounting hole is stripped. If the screw does not go in, then the mounting hole is likely stripped.

For a new operator, take a look at the 39-022 and 39-023, as well as the 39-476 and 39-477. These have a metal roller at the end of the operator arm, so you'll want to make sure yours does too. Review the specifications and see how they compare with yours.

Dimensions for 39-476

Dimensions for 39-477
