Product Code: 39-023

Rear Mount Casement Operator, 11"

$67.25

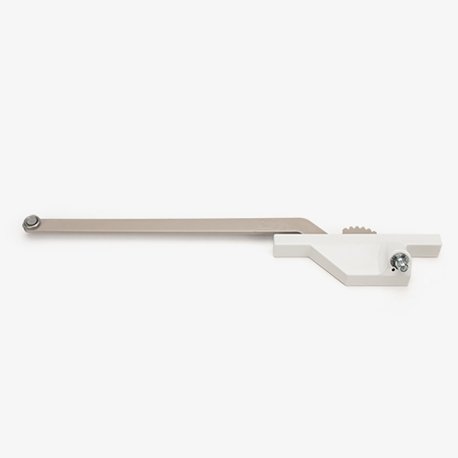

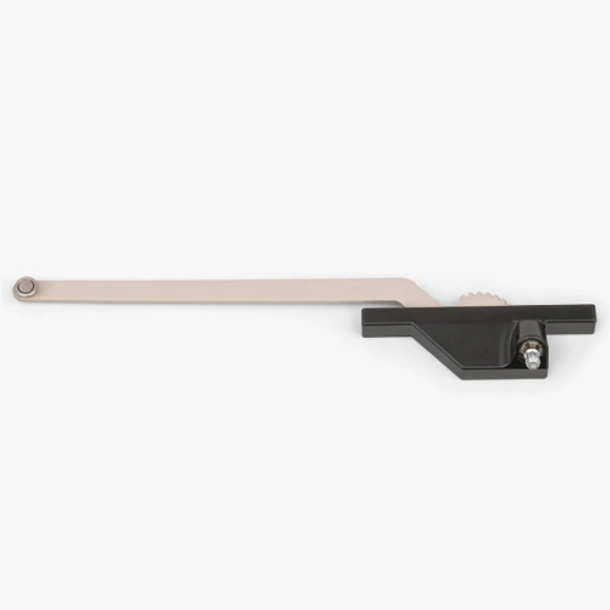

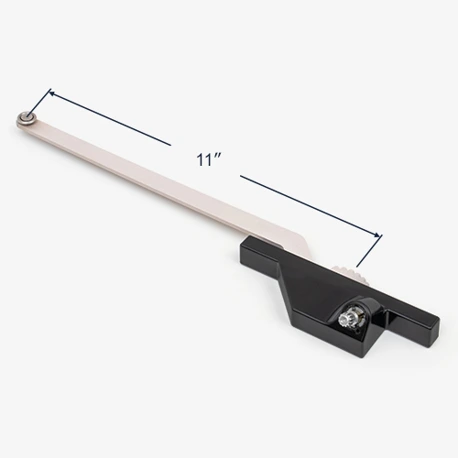

Rear Mount Casement Operator, 11" Image

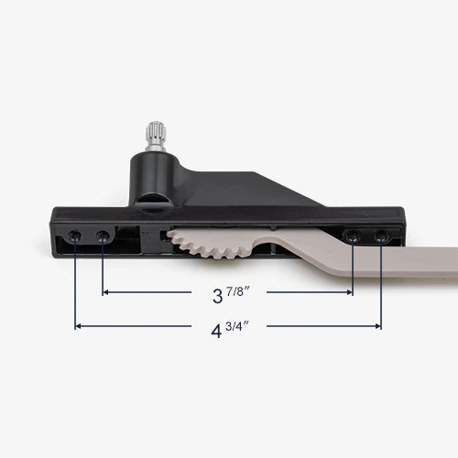

Dimensions for 39-023

Product Description

This is a rear mount, single arm crank operator for an aluminum casement window.

See SWISCO product 39-022 for the opposite handed version.
Will provide a full 90 degree window opening.
11" long arm, measured from wheel center to gear center.
11/32" spline; handle sold separately.
Case is manufactured of high-pressure die-cast zinc; hardened steel drive worm and gear arm with a stainless steel roller.
Finish is electrostatically applied, durable coatings that provide excellent resistance to chipping, scratching and corrosion while maintaining color stability for years in direct sunlight.

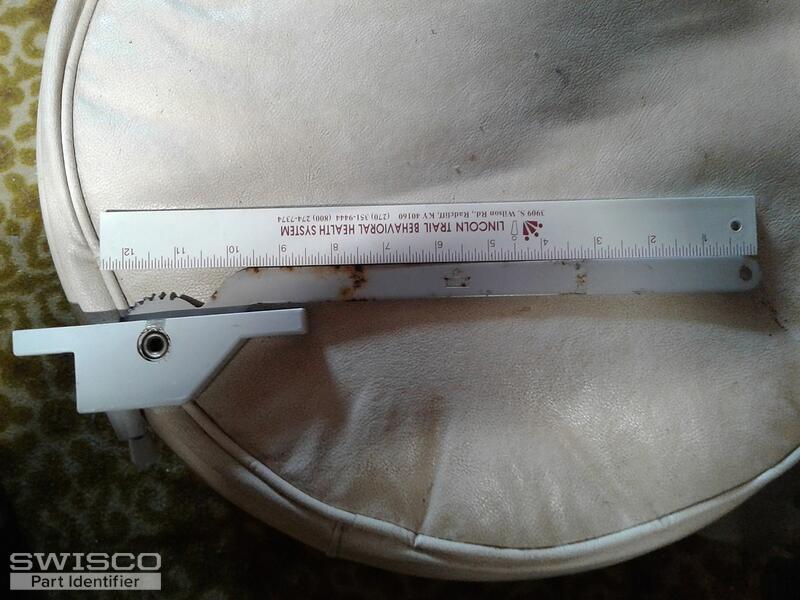

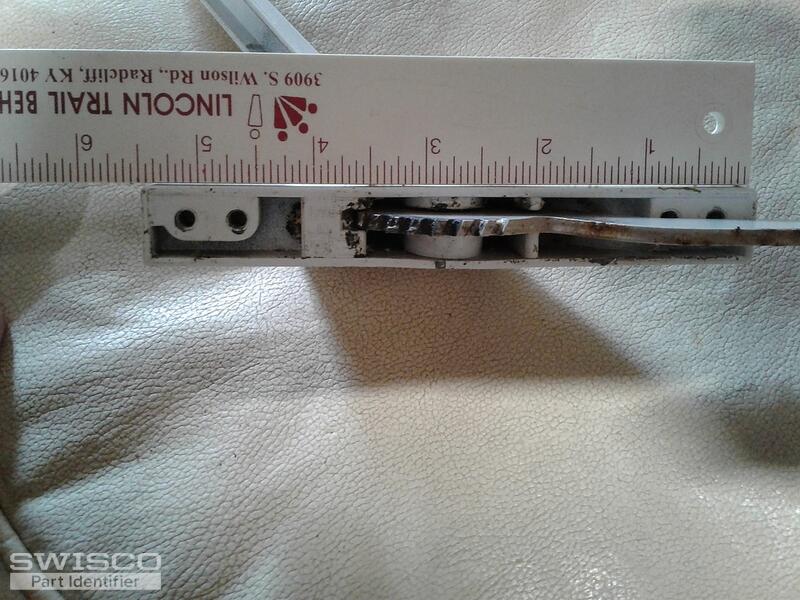

The screw on one side pulled loose and doesn't remain in place when window is cranked open or closed. On the window locks are the letters P.G.T. on top of the lock and Venice, Fl on the bottom of the lock. The stamp on the arm is no longer legible.

+7

+6

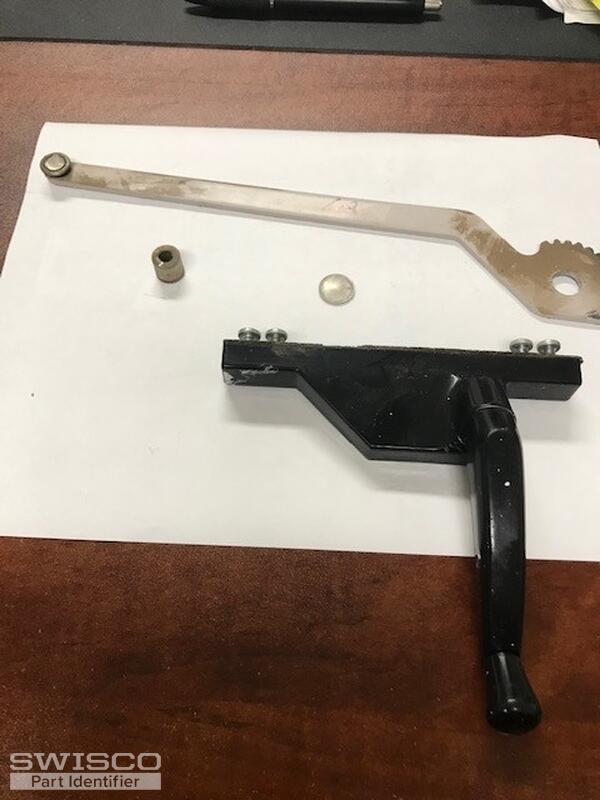

Window hinges/whole mechanism needs replacing

We have a large bay window. The windows have 2 locks and a handcrank to open them. The left window does not open anymore. The handcrank has come off and the one of the arms of the hinge has disconnected. Looking to replace whole mechanism for the left and right window. We do not know the brand of wi ... (cont.)

+3

+2

Replacement for Truth casement window operators

I need both R and L operators. Imprint in housing is 60063. Please provide finishes available, lead time and cost.

+2

+1

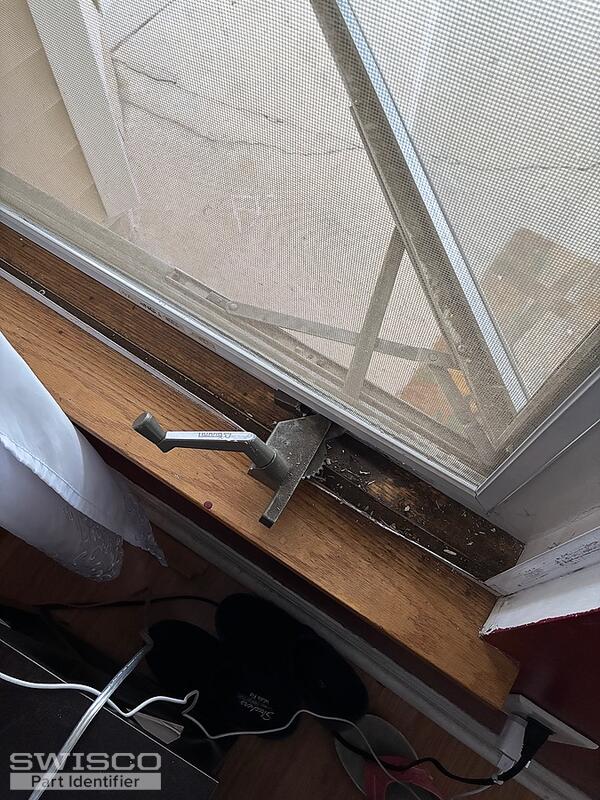

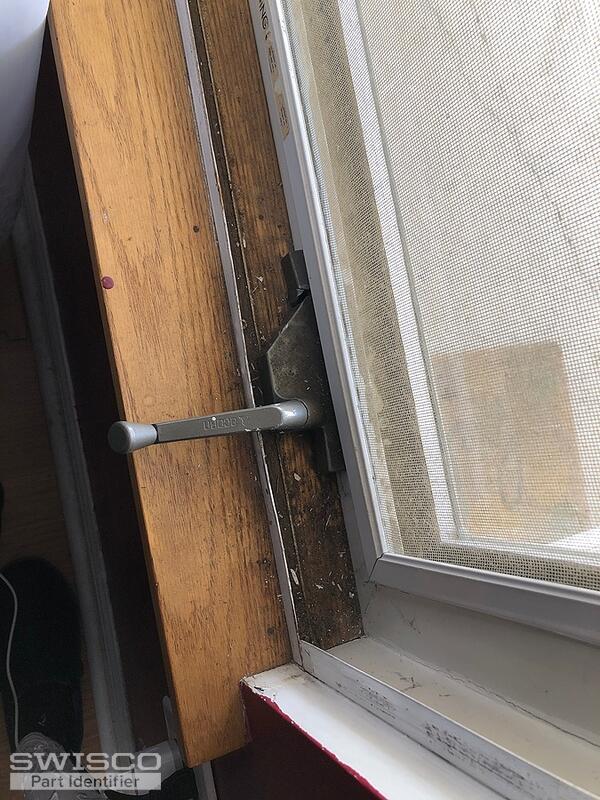

this is for a window / window crank that broke

I think I need a replacement piece for my window can you help me?

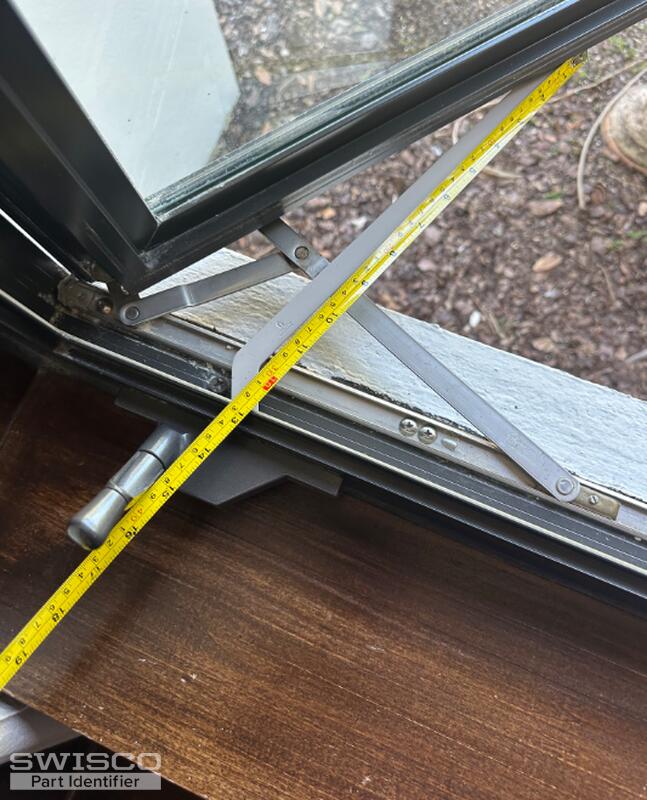

Help Identifying Casement Operator for 2004 Traco Commercial Aluminum Window

Hi Swisco Team,I’m hoping you can help me identify and source a replacement casement window operator for a commercial-grade Traco window installed in 2004.The issue is with the spindle, which has stripped internally. The handle itself is still functional, but it no longer engages due to the damaged ... (cont.)

+3

+2
