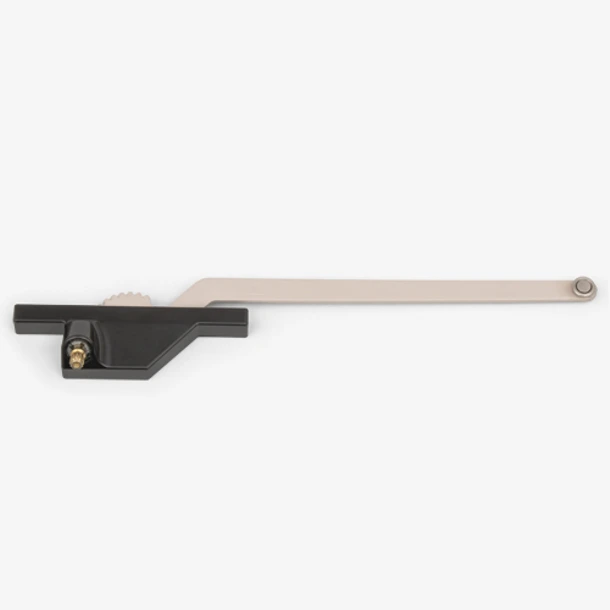

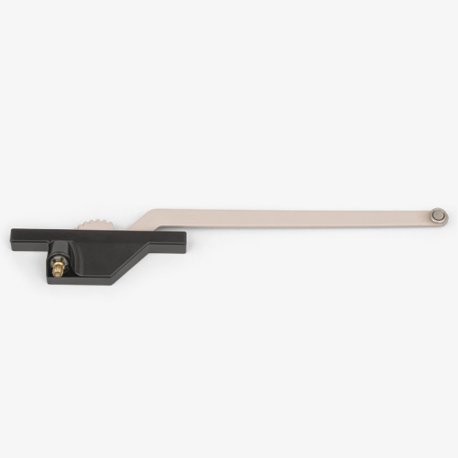

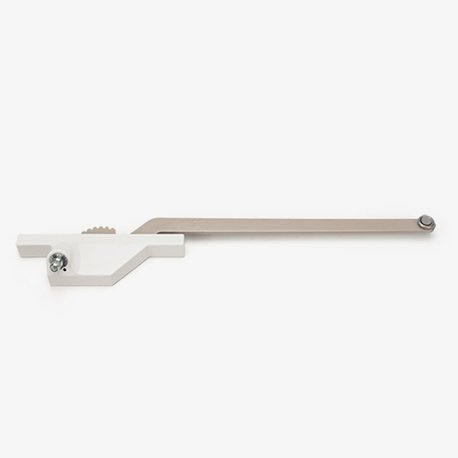

Rear Mount Casement Operator, 11"

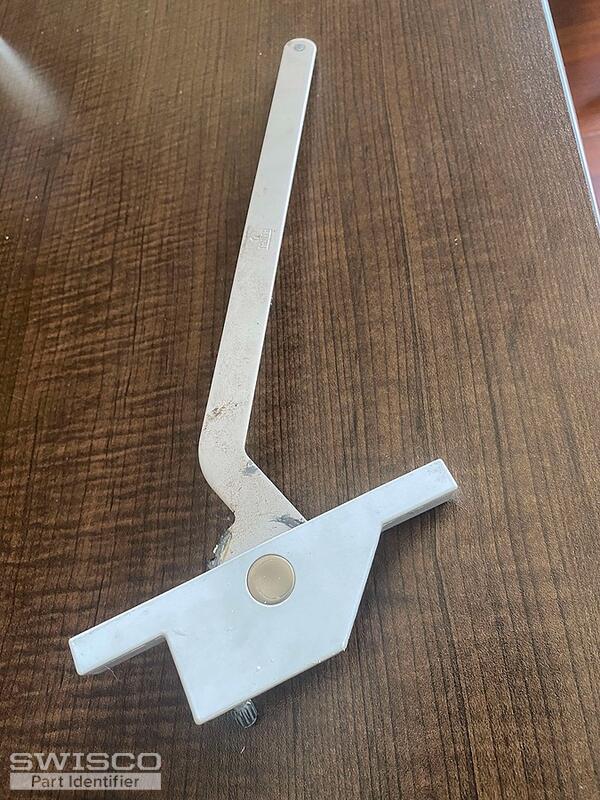

This is a rear mount, single arm crank operator for an aluminum casement window.

• See SWISCO product 39-023 for the opposite handed version.
• Will provide a full 90 degree window opening.

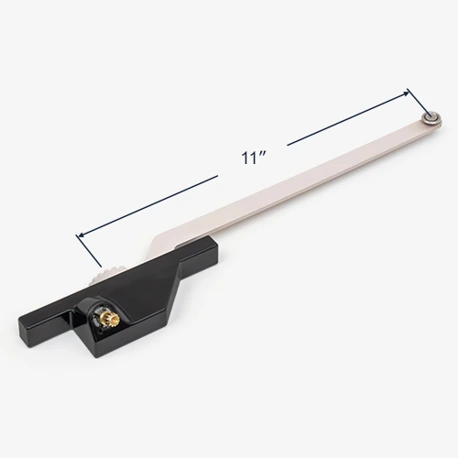

• 11" long arm, measured from wheel center to gear center.
• 11/32" spline; handle sold separately.

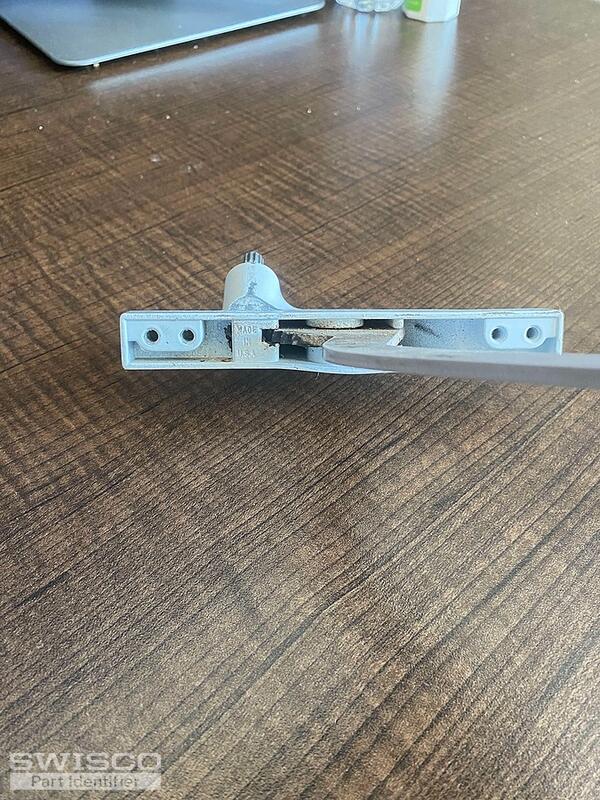

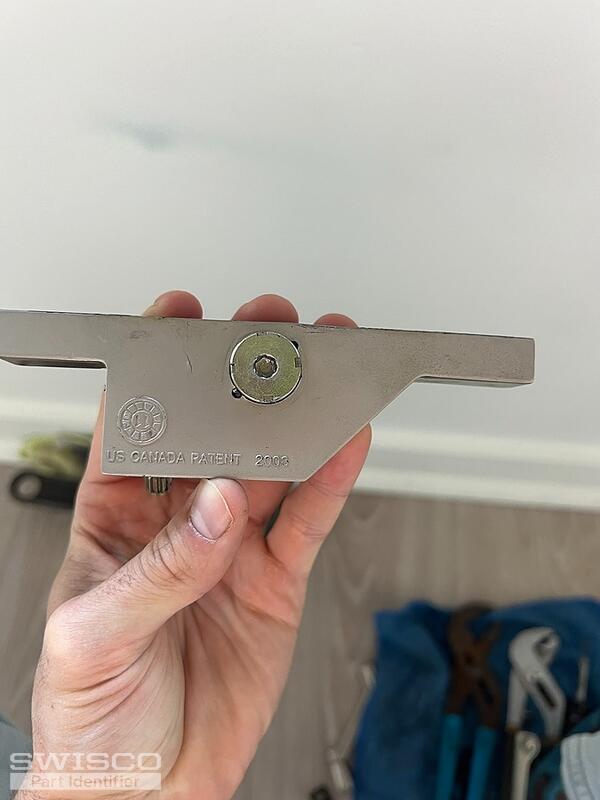

• Case is manufactured of high-pressure die-cast zinc; hardened steel drive worm and gear arm with a stainless steel roller.
• Finish is electrostatically applied, durable coatings that provide excellent resistance to chipping, scratching and corrosion while maintaining color stability for years in direct sunlight.
