Replacement part

Quick Learner from Oreland PA

May 16, 2019 8:10 pm

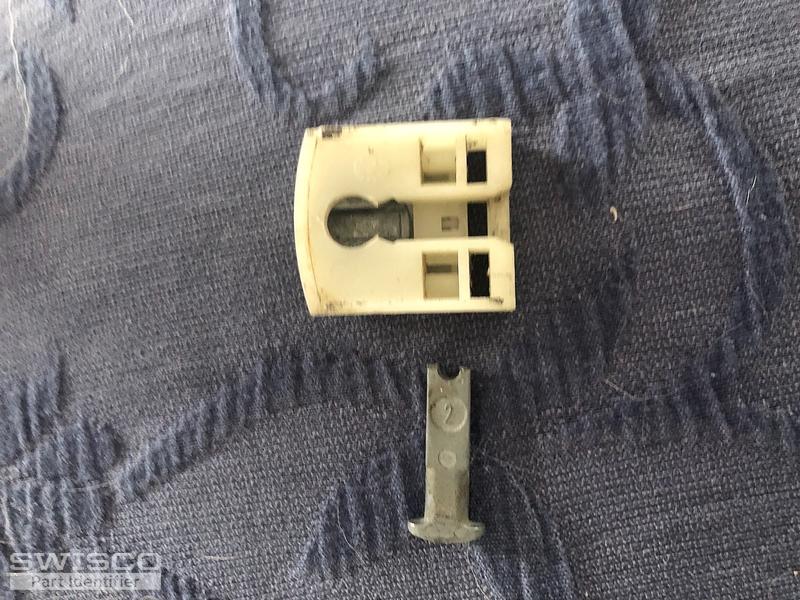

My fireman window when pulled out to clean does not slide evenly. It appears the plastic slide is cracked and no longer connected to the actual window. It just stays in the track and does not move. Both of my big windows are currently having the same issue. Please help

3 user uploaded images

8 Replies

Paul from SWISCO

May 17, 2019 9:27 am

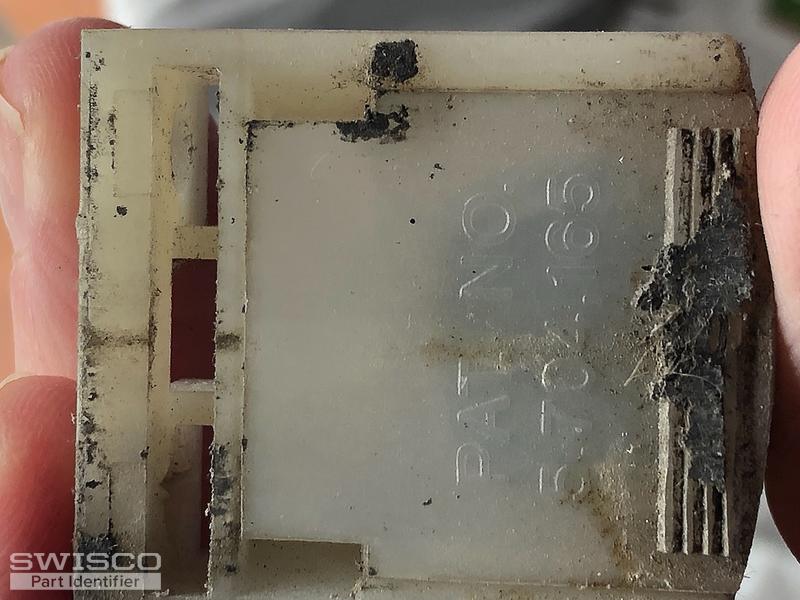

I believe we can help you with this. Beginning with the balance cover, it looks close to our 15-205. It holds three coil springs, like the 3/8" Series 165. Confirm that our springs match up with yours. Your springs should also have a number stamped on the end of the springs. As for the pivot shoe, look over the specifications of the 15-199. We also placed some helpful media guides on this page for more assistance.

Quick Learner from Oreland

May 21, 2019 5:07 pm

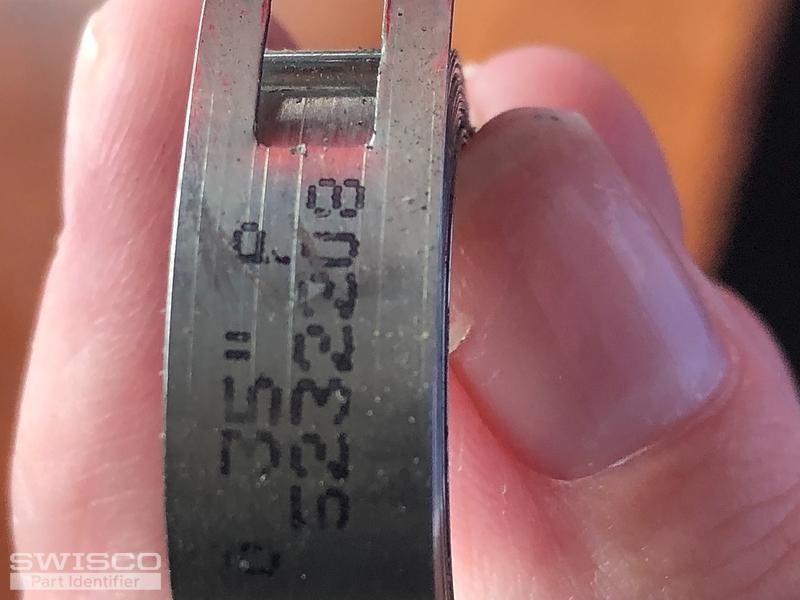

So you are correct on the two parts. However I do not know which coil. It appears correct but I need additional help. Please find attached picture of numbers from my coil. Part was made in 4/2004

2 user uploaded images

Paul from SWISCO

May 22, 2019 8:15 am

Thank you for replying back to us with more photos and information. After looking at your photos again, I am inclined to lean towards the 15-199 that I previously recommended. Your coil spring doesn't really show us the stamped number we need to determine which replacement coil would work. Are there any other numbers stamped before the "35". If so, could you get back to us with that information? If not, get back to us with the weight of your sash. We'd also like to see photos of an undamaged pivot bar removed from the window, along with measurements.

Quick Learner from Oreland

Jun 6, 2019 4:24 pm

Ok - I have all my parts except the sash tilt pins that fit in bottom of sash. The one is broken and not sure of size. I also need the tool to spread track to put in constant balances. Any help would be greatly appreciated.

1 user uploaded image

Paul from SWISCO

Jun 7, 2019 7:32 am

For the pivot bar, compare our 26-378 to one of your pivot bars that is not damaged. See if everything matches up. As for the tool you are referring to, our 75-069 jamb spreader tool is the part you're looking for.

Quick Learner

Jun 10, 2019 5:51 pm

If there is a cut out in the jamb then I do not need the spreader correct?

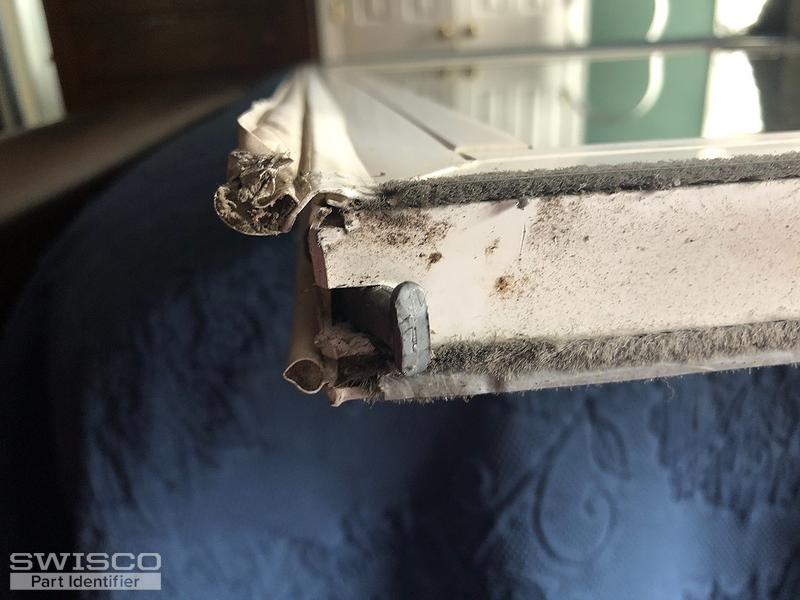

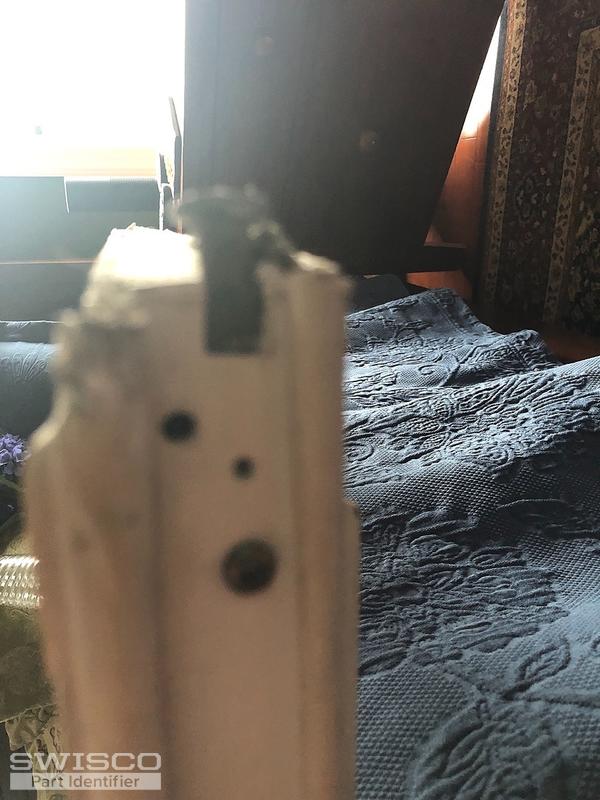

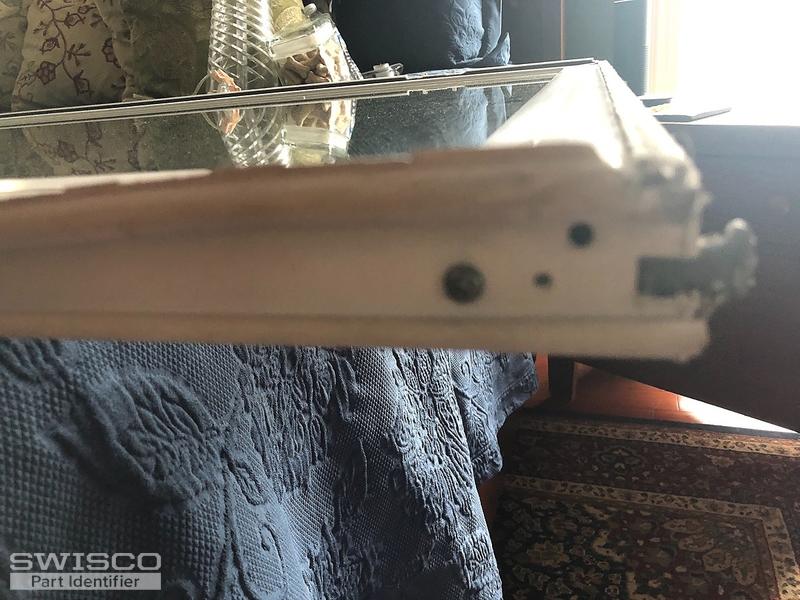

I was able to take the sash out but unsure how to check the pin to see if it matches the one you recommended. Attached are some photos. How do I get to the pin to see the whole thing?

Do you have recommendations of local window people to fix windows? I live in Montgomery Township PA (Oreland)

3 user uploaded images

Tom from SWISCO

Jun 11, 2019 8:02 am

Yep, if your window has a cutout then there's no need for jamb spreaders. Jamb spreaders are really just an emergency backup option in case all else fails.

You'll have to unscrew that pivot bar and slide it out of its slot to confirm if it matches ours.

I'm afraid I have no contacts in your area.
