Replacement parts for 20 yr old windows

Question

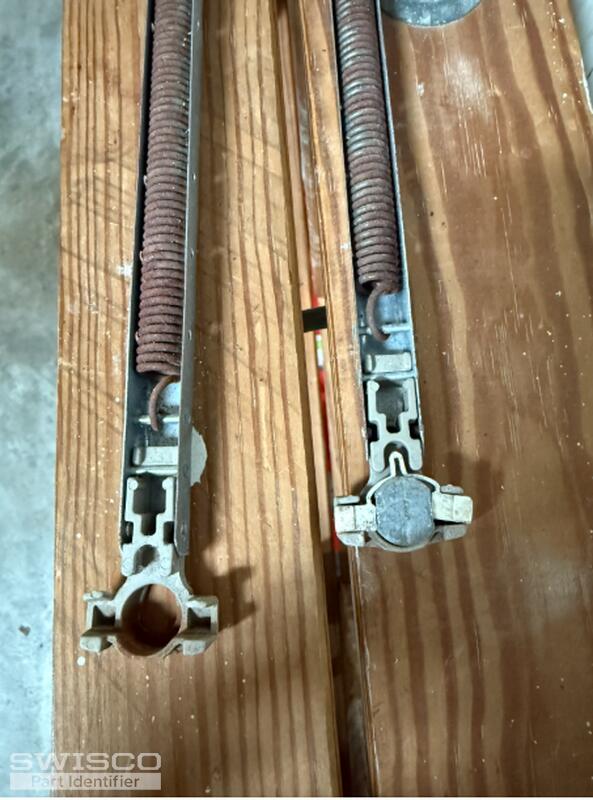

The opposite end of the hook appears to be a bolt/pin that fits into the window and it has rusted away.

I also need the rusted replacement pin/part attached to the window (looks to be with one screw).

Jasmine · Accepted Answer

Thanks for posting! This window balance can likely be replaced with our Series 795 Channel Balance. Although, to determine the correct replacement, I'll need to see a clearer photo of the hook/clip at the top of the balance. I'll also need to know the stamp/marking from the metal channel.

The pivot bar you have is a u-shaped pivot bar, like either the 26-040 or the 26-089, but the 15-195 shoe is most often used with the 26-021 Pivot Bar. Carefully review and compare each of them to determine the correct replacement for the repair. Be sure to double check the installation hole placements.
