Replacement sash pivot bars

A handy person from Vienna, VA says:
May 7, 2023
Hi Swisco - i'm unsure of which pivot bar to buy for this window. As you can see there is a lot of rust and the current pivot bar has basically disintegrated and some parts are inside the lower portion of the window. Do you have enough information here to determine the part?

Other parts i am ordering for the window are; S600-17 (red tip) and the 15-046.

thank you!
Bard
Thumbnail of the uploaded file named IMG_1710.jpg
Thumbnail of the uploaded file named IMG_1711.jpg
Thumbnail of the uploaded file named IMG_1715.jpg

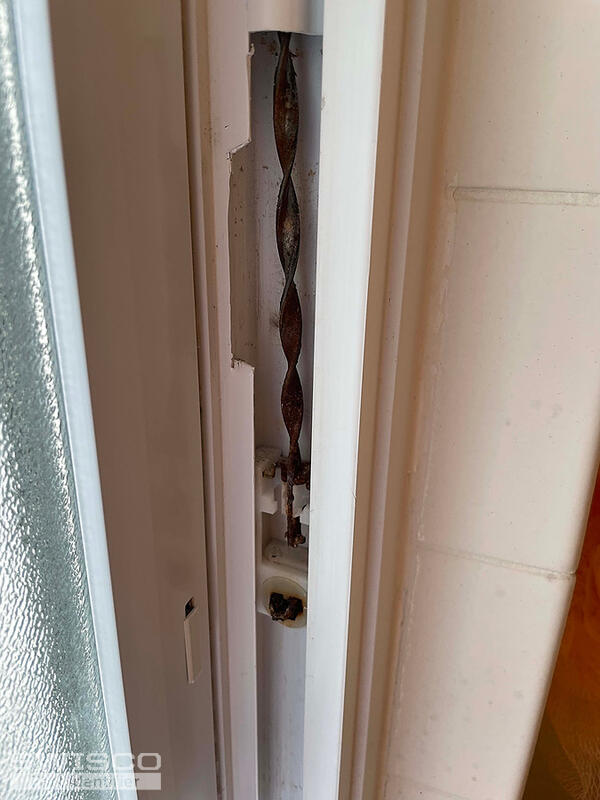

Thumbnail of the uploaded file named IMG_1716.jpg

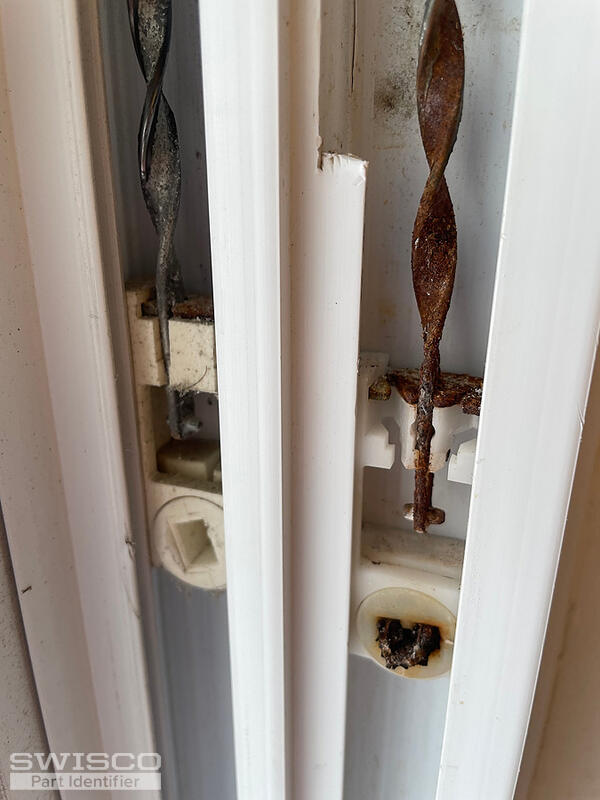

Thumbnail of the uploaded file named IMG_1717.jpg
Profile picture of Emily
Emily from SWISCO responded:
May 9, 2023

Hi there, Bard.

We appreciate you reaching out to us. It's hard to say what pivot bar you may need since yours is so damaged. However, the 15-046 is compatible with the 26-040. Is there an identical window in the house with a pivot bar in better condition? If so, I would recommend you compare our specifications with an undamaged version to see how they align.
17" Series 600 Spiral Tilt Window Balance
17" Series 600 Spiral Tilt Window Balance
S600-17
$8.28
Pivot Shoe, 1/2" Thick
Pivot Shoe, 1/2" Thick
15-046
$2.15
Pivot Bar, 3"
Pivot Bar, 3"
26-040
$1.57
Upper Sash Pivot Bar
Upper Sash Pivot Bar
26-427
$2.79
