Searching for 0003281501

A quick learner says:
May 31, 2022

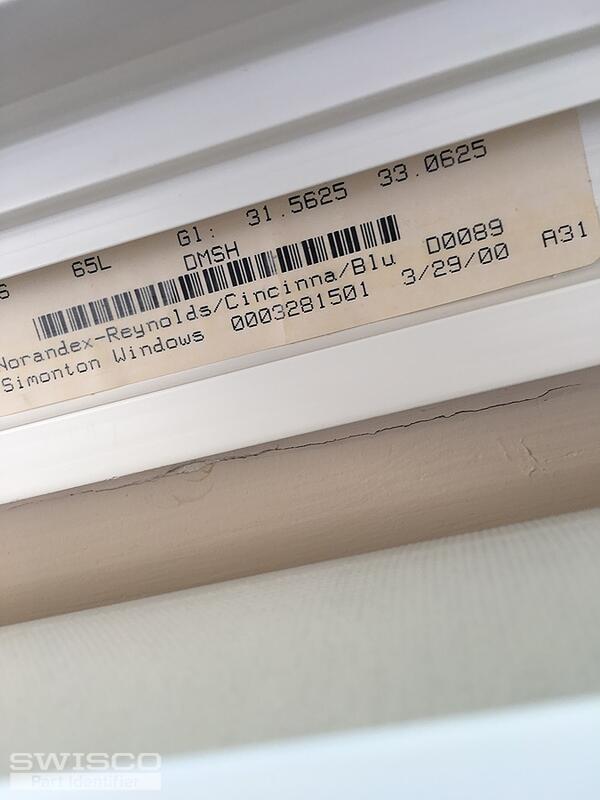

What balance do I need for this window? 0003281501
It's 2 spring and I think 3/8 spring width
Thumbnail of the uploaded file named 5E23E8BE-C27D-4DE9-94C9-ADFB8F386F82.jpeg
Profile picture of Emily
Emily from SWISCO responded:
June 3, 2022

Hi there!

We'd be happy to help but we'll need to see an undamaged pivot shoe removed from the window to determine what coil springs you'll need.

Thank you!

A quick learner says:
June 3, 2022

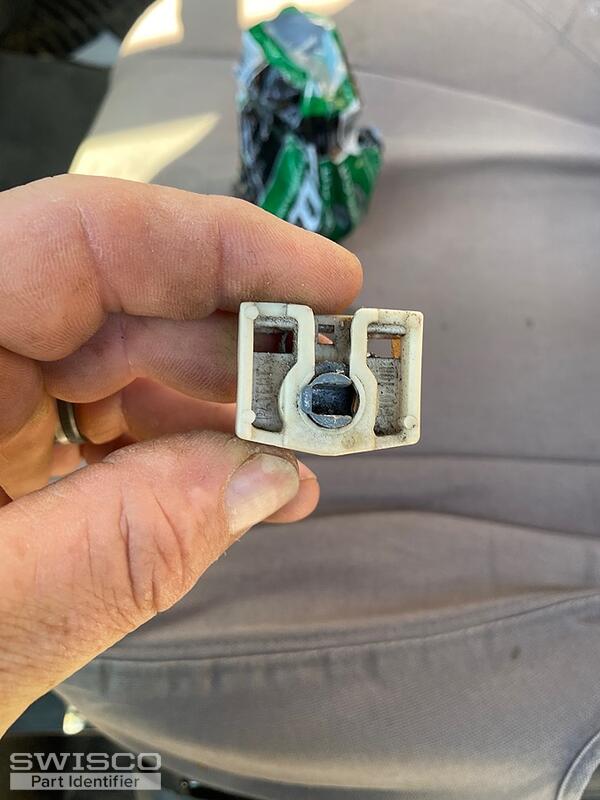

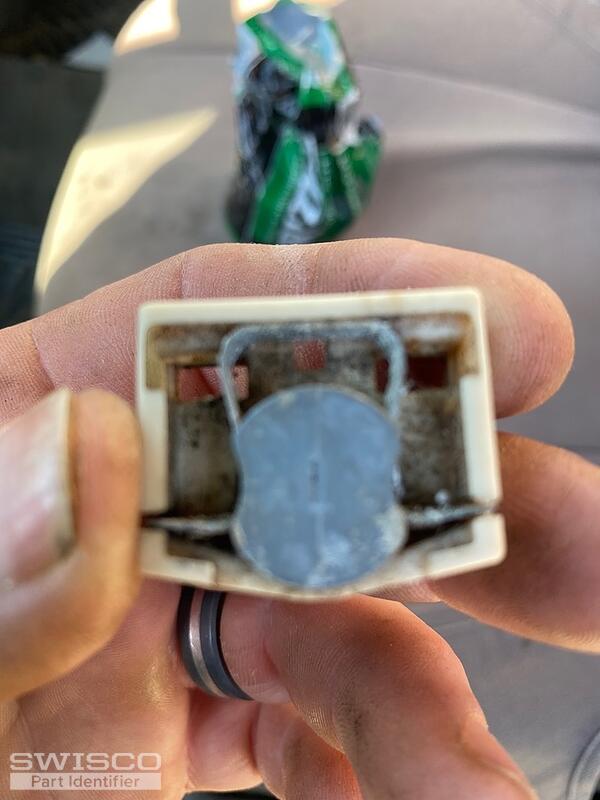

Here you go. I want all new spring, shoe and cover.
Thank you
Thumbnail of the uploaded file named 77E0AF22-309B-4882-B2B6-6C4B30A4C264.jpeg
Thumbnail of the uploaded file named 0F978E80-0087-4947-BA88-F6E62C499C00.jpeg
Profile picture of Emily
Emily from SWISCO responded:
June 6, 2022

Perfect! This looks like a match for our 15-111 pivot shoe which is designed to used the 1/2" thick Series 160 coil springs. We suggest double checking the thickness of your old spring to confirm it's also 1/2". For a new cover, see the 15-150D , 15-150T , 15-150S and 15-150Q depending on have many coils you have on both sides of the window.

Pivot Shoe, 1/2" Thick
Pivot Shoe, 1/2" Thick
15-111
$2.44
1/2" Coil Double Support
1/2" Coil Double Support
15-150D
$1.57
1/2" Coil Triple Support
1/2" Coil Triple Support
15-150T
$1.96
1/2" Coil Quad Support
1/2" Coil Quad Support
15-150Q
$4.69
1/2" Coil Single Support
1/2" Coil Single Support
15-150S
$1.10
