Silver Line Tilt Block And Tackle Balance Part Replacement

Home Owner from Charlotte

Jun 20, 2023 10:46 am

Hello,

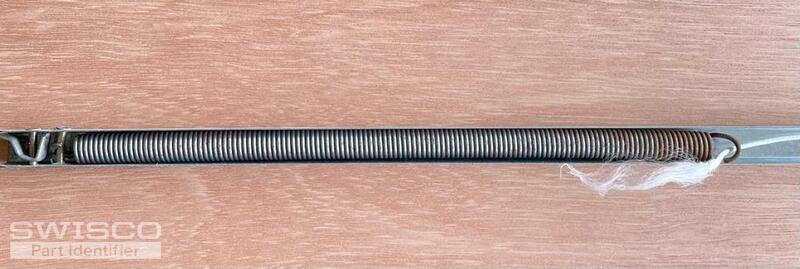

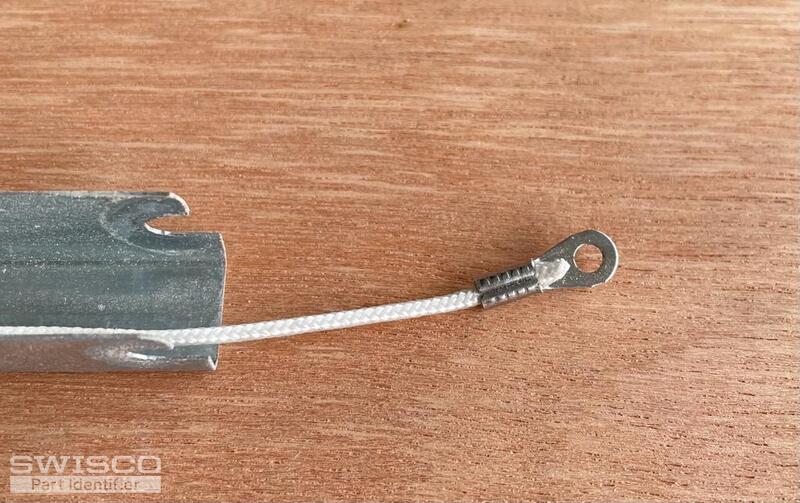

Could you please assist in silver line tilt block and tackle balance part replacement (Total of 2) if they are available and how much will it cost to deliver to Charlotte, NC. Please find attached photos for your reference.

Thank you,

Hussam

5 user uploaded images

8 Replies

Paul from SWISCO

Jun 22, 2023 10:28 am

Hi, Hussam.

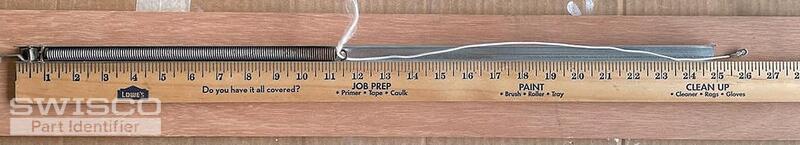

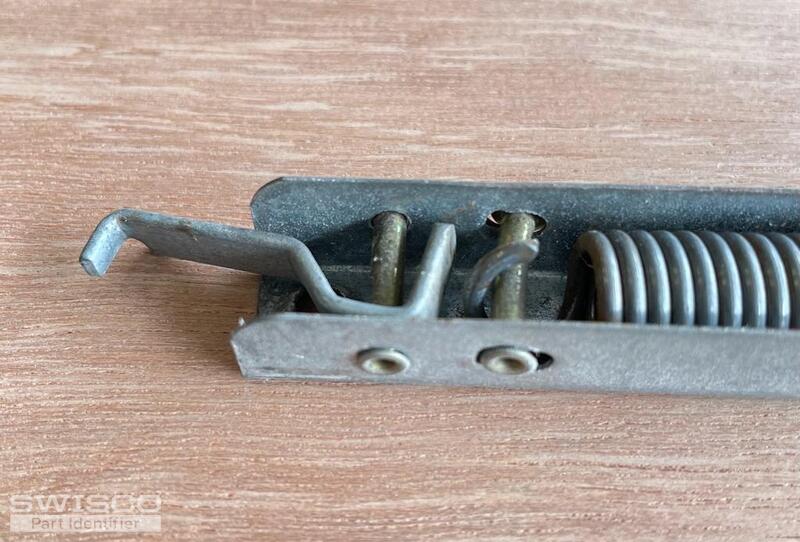

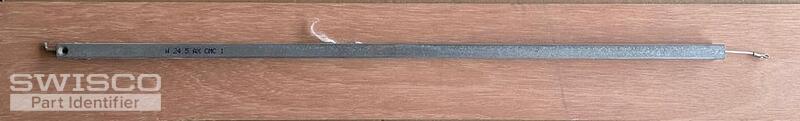

You didn't give the length of the balance channel but we were able to read the markings on the balance which appear to be 24-5. For Silverline tilt balance, you will need the S765-25 with the 24-5 spring stamp weight. Take a look and let us know if you have any questions.

Home Owner from Charlotte

Sep 29, 2023 11:27 am

Hello Paul,

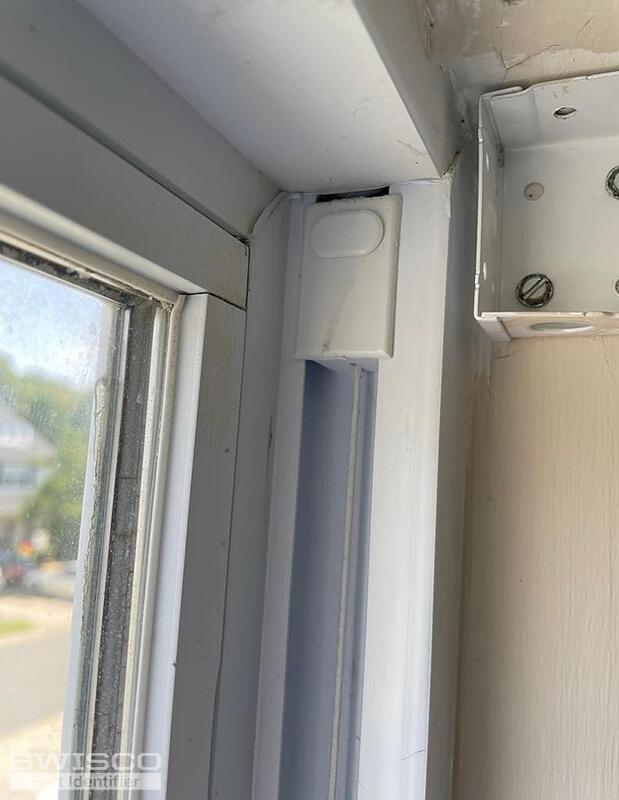

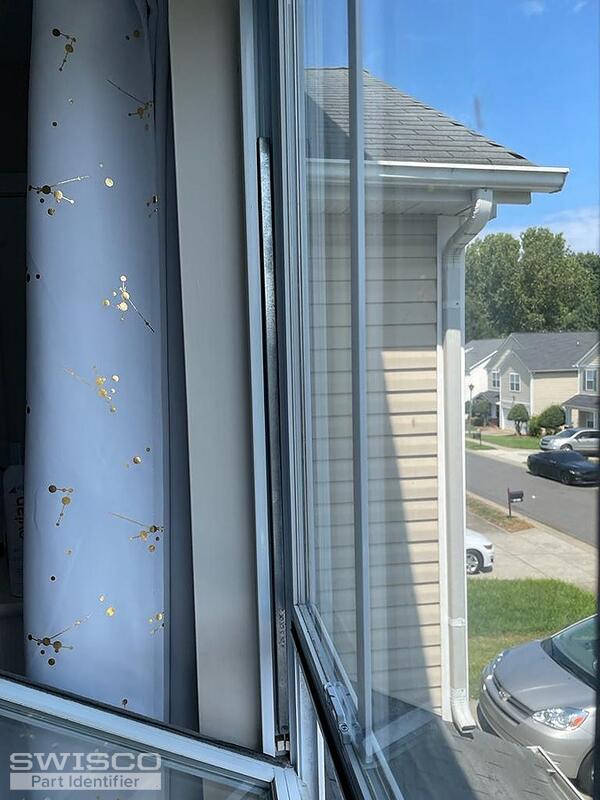

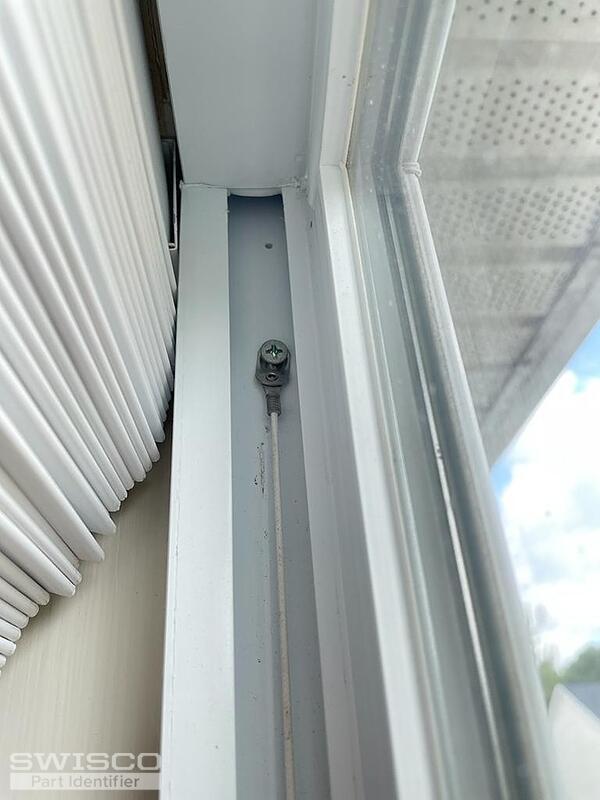

Further to your previous response dated on June 22, could you please assist in identifying compatible replacements including hardware accessories needed, in order to request replacement parts from your company? Please find attached photos for your reference.

Due to attachment size limits, you will receive three different requests for attached photos from me.

Best regards,

Hussam

5 user uploaded images

Home Owner from Charlotte

Sep 29, 2023 11:28 am

Attachment Photo's #2

5 user uploaded images

Home Owner from Charlotte

Sep 29, 2023 11:29 am

Attachment Photo's #3

5 user uploaded images

Paul from SWISCO

Oct 2, 2023 9:44 am

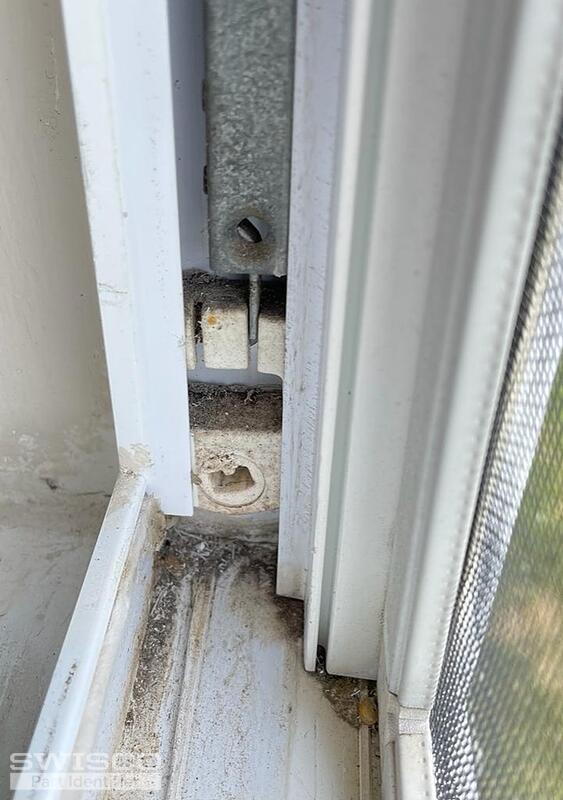

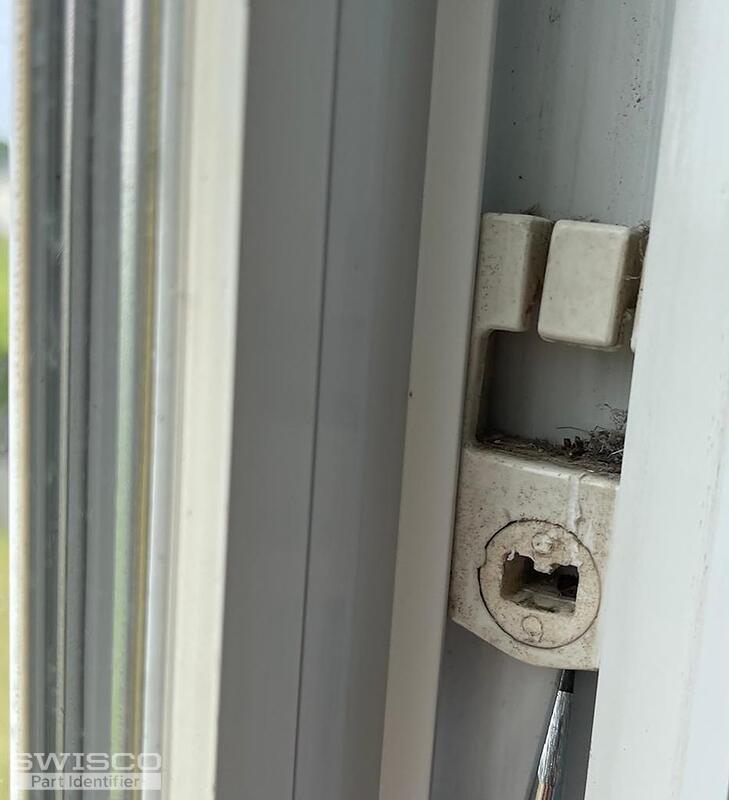

Take a look at the parts we have related for you on this page. You'll just need to remove the pivot shoe from the window track to confirm it aligns with the specifications of the 15-046.

Home Owner from Charlotte

Oct 11, 2023 11:25 am

Hello Paul,

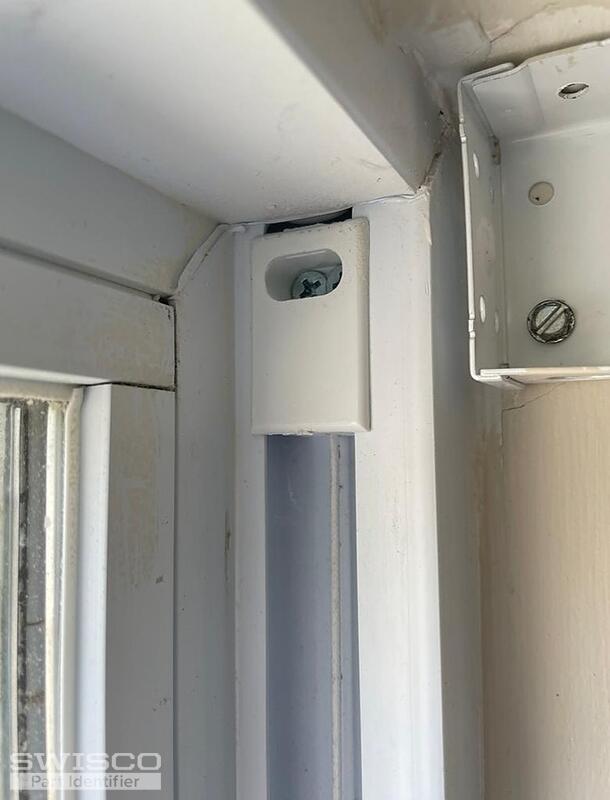

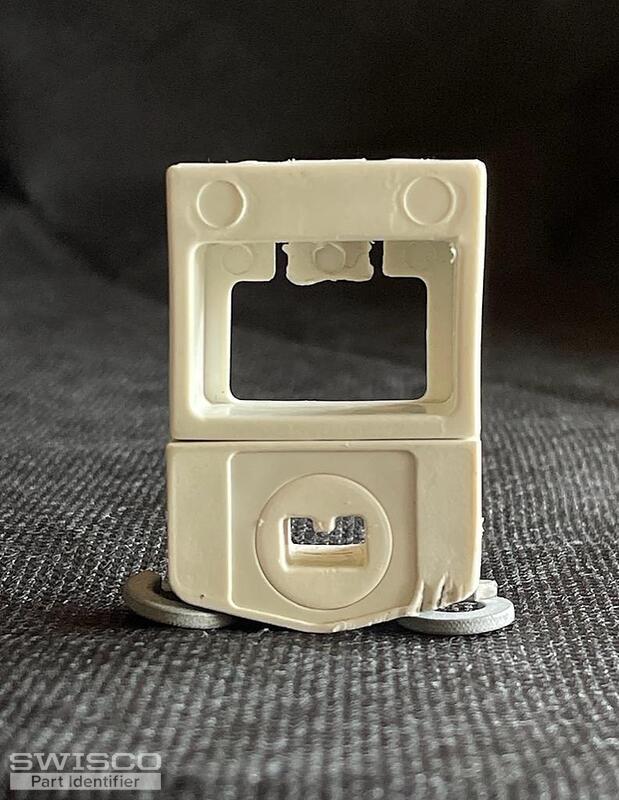

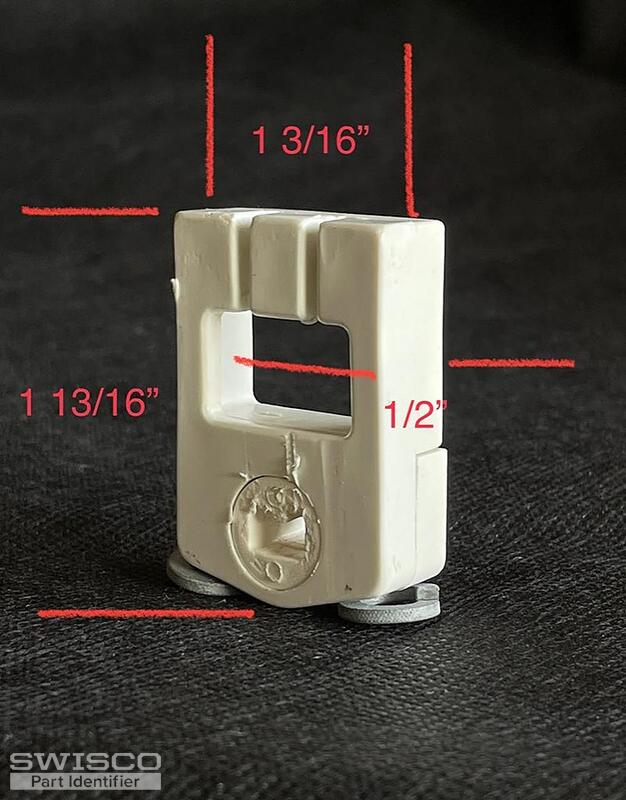

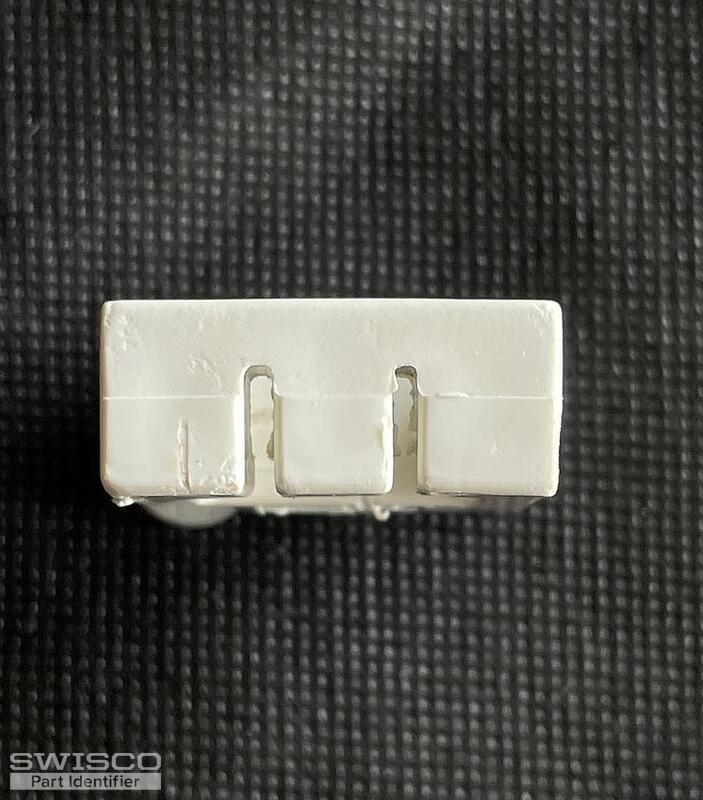

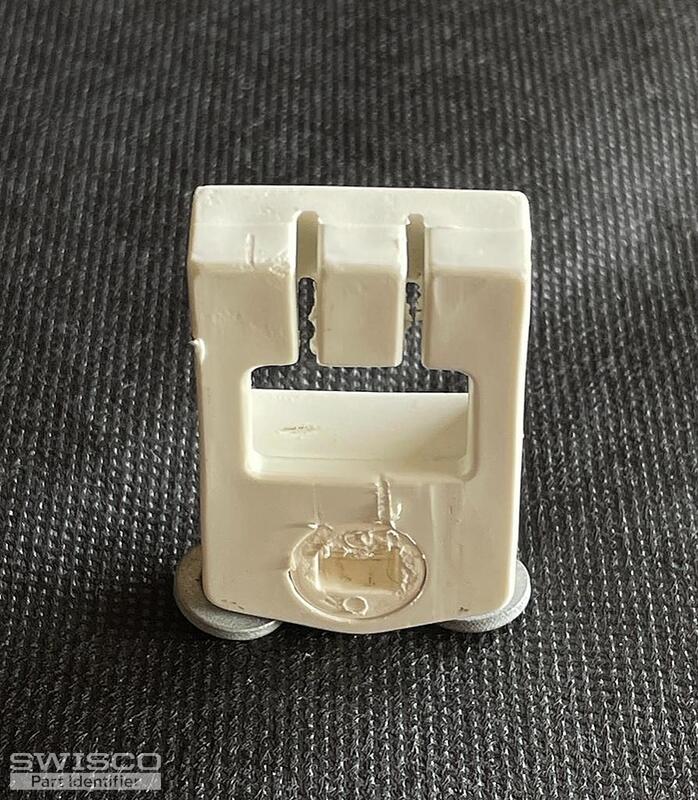

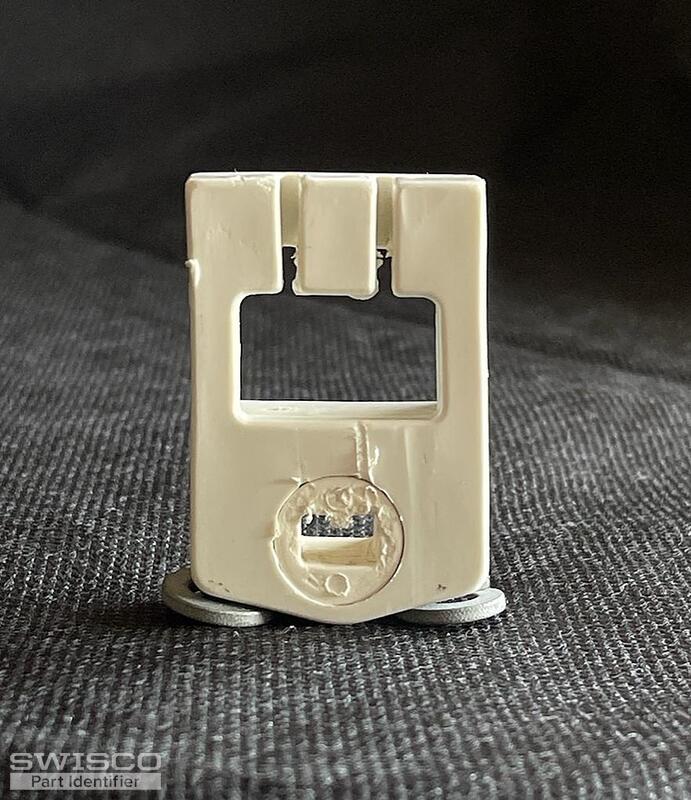

Please specify the compatible replacements for the below items as final to purchase. Please find attached Pivot Shoe photos for your reference.

Best regards,

Hussam

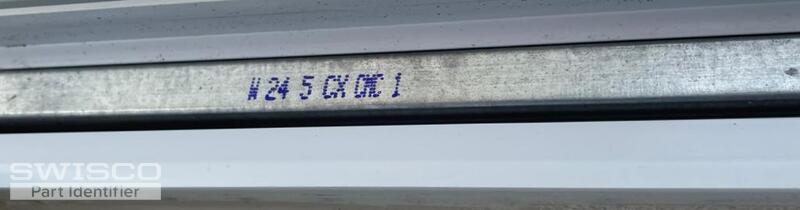

1) W 24 5 CX CMC 1 & Length: 25.0"

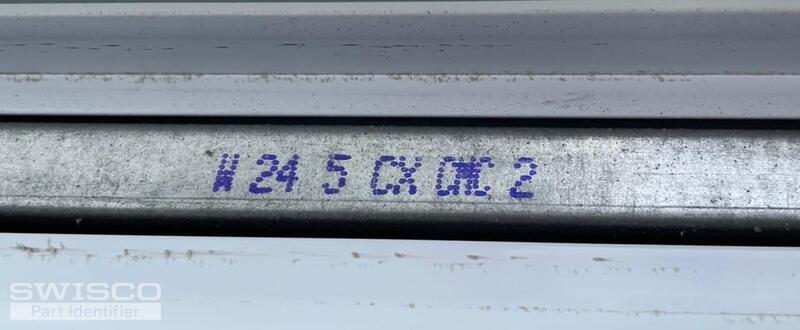

2) W 24 5 CX CMC 2 & Length: 25.0"

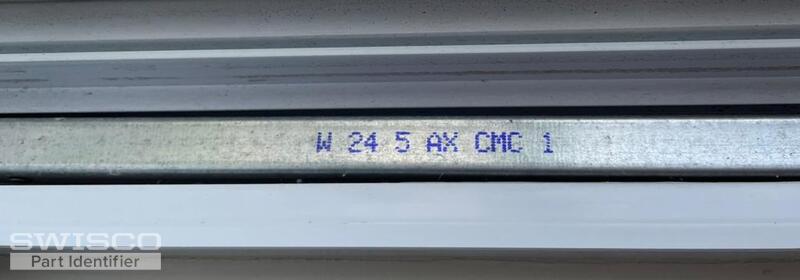

3) W 24 5 AX CMC 1 & Length: 25.0"

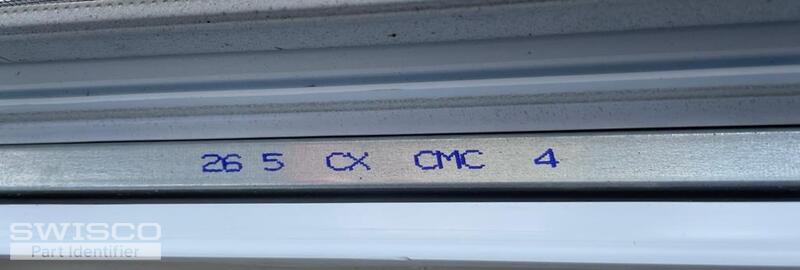

4) 26 5 CX CMC 4 & Length: 27.0"

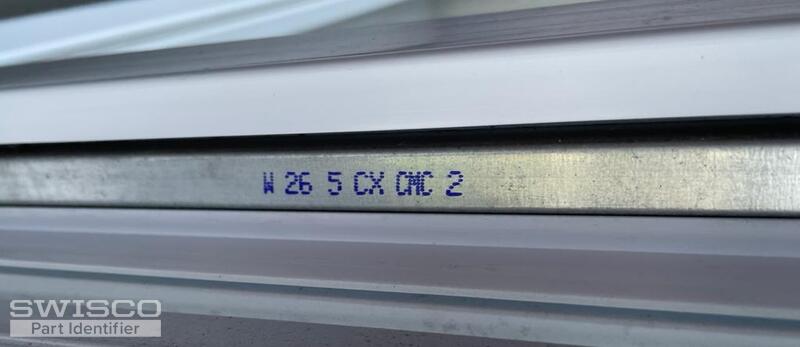

5) W 26 5 CX CMC 2 & Length: 27.0"

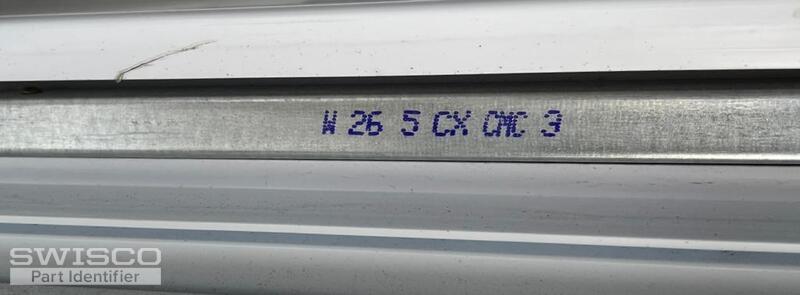

6) W 26 5 CX CMC 3 & Length: 27.0"
