Product Code: S765-25

25" Series 765 Balance

Name: 25" Series 765 Balance
SKU: S765-25
Price: 15.25 USD
Availability: InStock

$15.25

How to measure the length of the Series 765 channel balance.

Quantity	Price
1-11	$15.25/ea
12-49	$13.73/ea
50-99	$12.96/ea
100-249	$12.20/ea
250+	$11.44/ea

Please Note: Bulk pricing applies only to purchases of the same option

Quantity

Add to Wishlist

Product Description

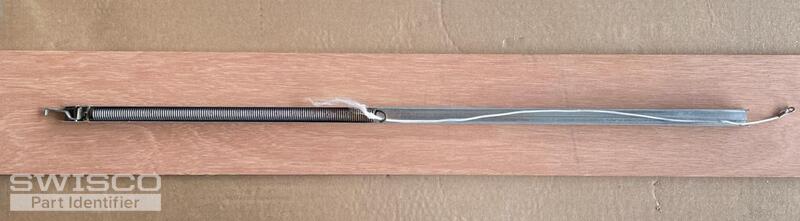

This is a Series 765 channel balance for tilt-in windows. It moderates the operation of your window sash using a specifically calibrated spring and pulley system that allows the window to stay open when raised.

This balance has a 25" long metal channel.

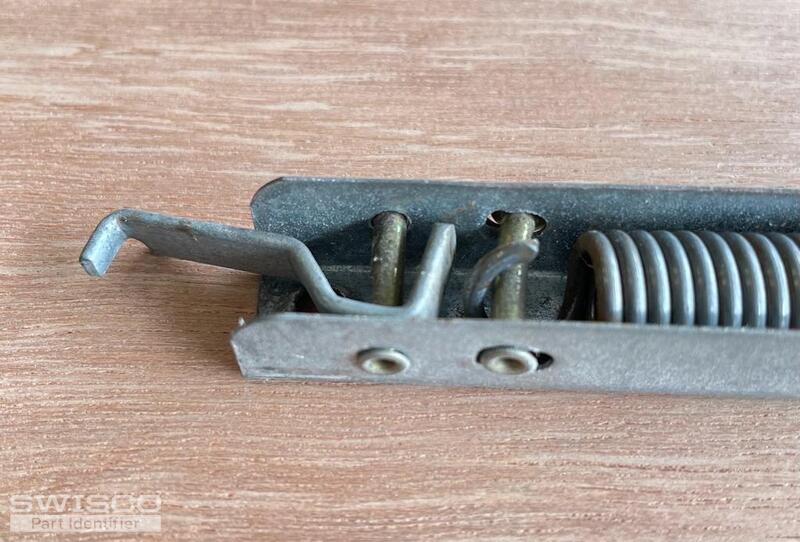

Comes fully assembled with a screw clip on top and a pivot shoe hook attached at the bottom and will be ready to install out of the box.
The strength you need should be indicated as a stamp or imprint on your old metal channel. If you do not have a stamp, or cannot match it up to our options, weigh your sash on a scale and refer to the chart below.
Can work for either the left or right side of the window interchangeably.
Used in American Craftsman and Silver Line vinyl, single hung, new construction windows, as well as Silver Line Series 1200 vinyl, double-hung, replacement windows.

Stamp Option	Sash Weight Range
24-1	7 to 11 lbs
24-3	11 to 17 lbs
24-5	17 to 24 lbs
24-7	24 to 30 lbs
24-9	30 to 34 lbs

*This information is based on 2 balances per sash. Balances are designed assuming friction in the jamb weather-strip will carry a portion of the sash weight. Suggested sash weights are approximate.

Window balance

Window balancer

WIndow Tension rod

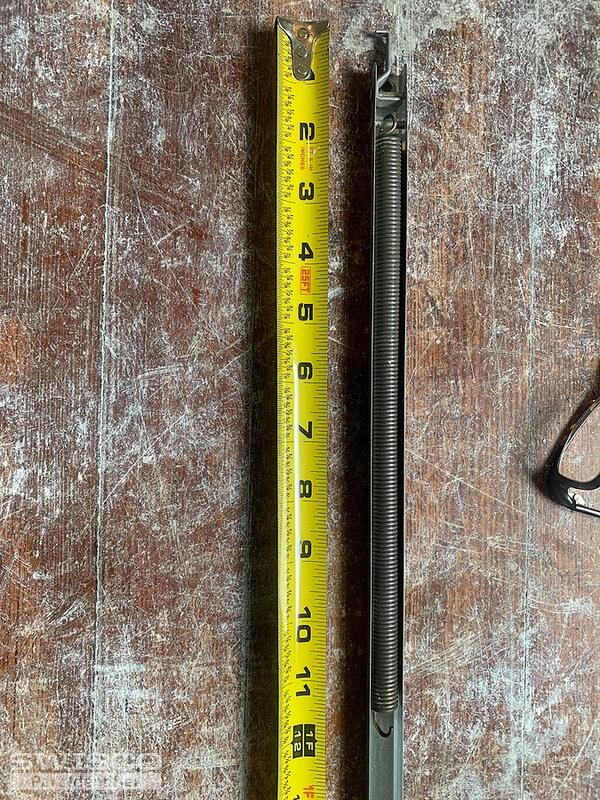

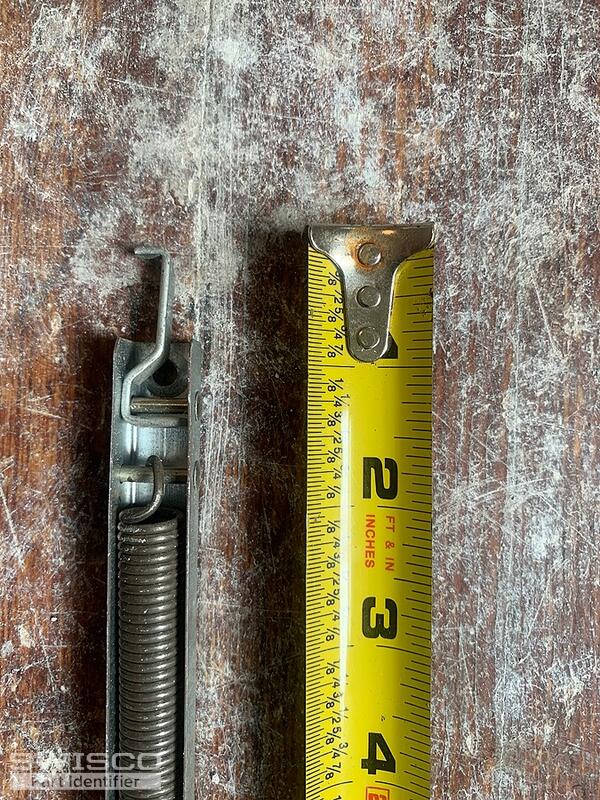

Looking to identifie this tension rod. its 2' long.

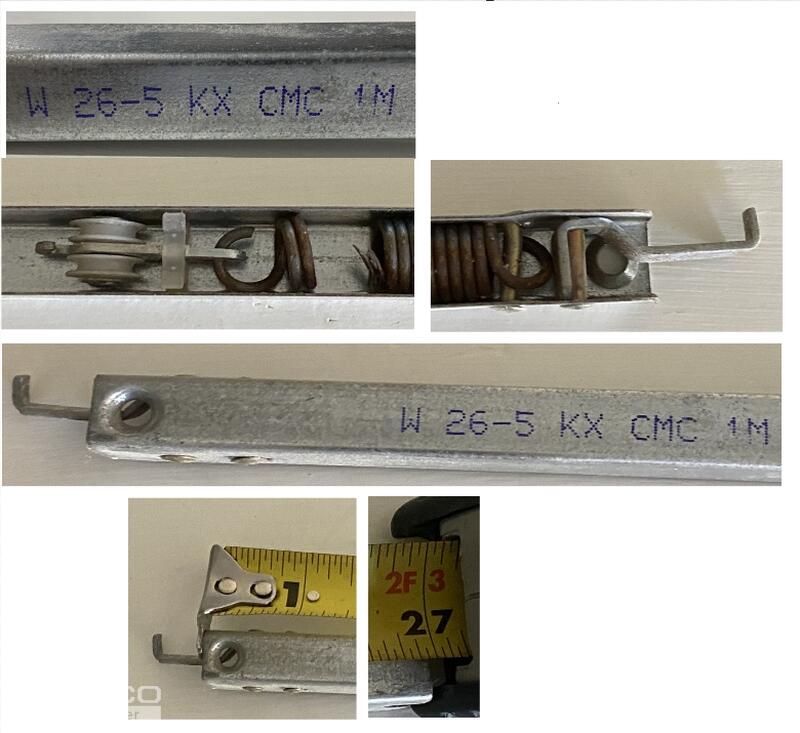

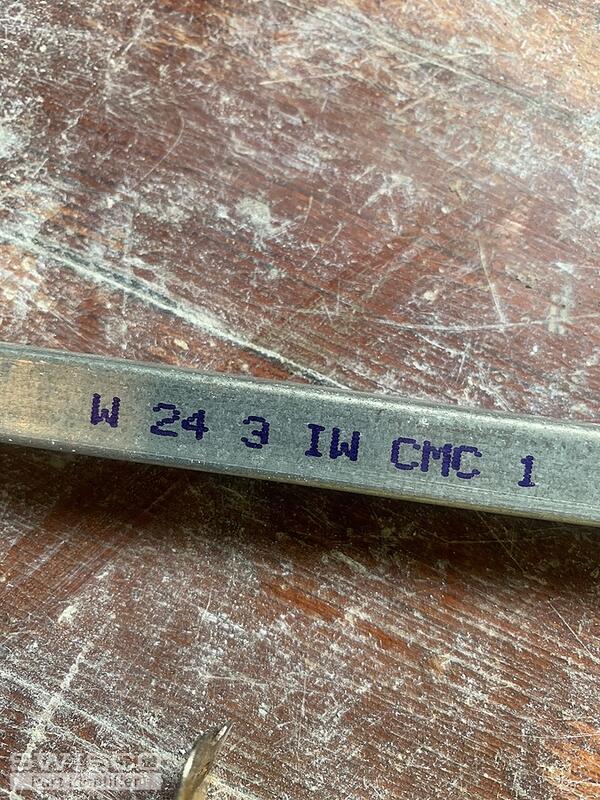

Window Balancer....24 3 EX CMC 2 on a Stanley Window...

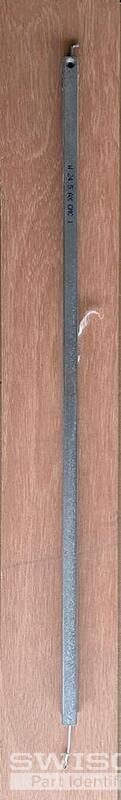

This is a tilt window. The actual metal channel is 25" long and 1/2" x 1/2" wideth & depth. The lower end of the channel connects to the tilt lock and the top end has a string coming out that connects to a screw in the side of the window, up high. I do Handyman tasks in a fairly large communit ... (cont.)

Refresh Windows

Hi, I’m looking to refresh my windows as half of them are falling out. Are you able to help me out get new balancers and window hardware required ? I just want to replace the full thing and maybe even change the “shoes” if there is any new system. The windows just move up and do ... (cont.)

MFR-SIL -1 series 1000 DH

Looking to replace balancer for 6 windows. Just not sure on the parts. Pictures have been added
