Simonton single hung window
Quick Learner from San Francisco
Jul 22, 2024 2:01 pm

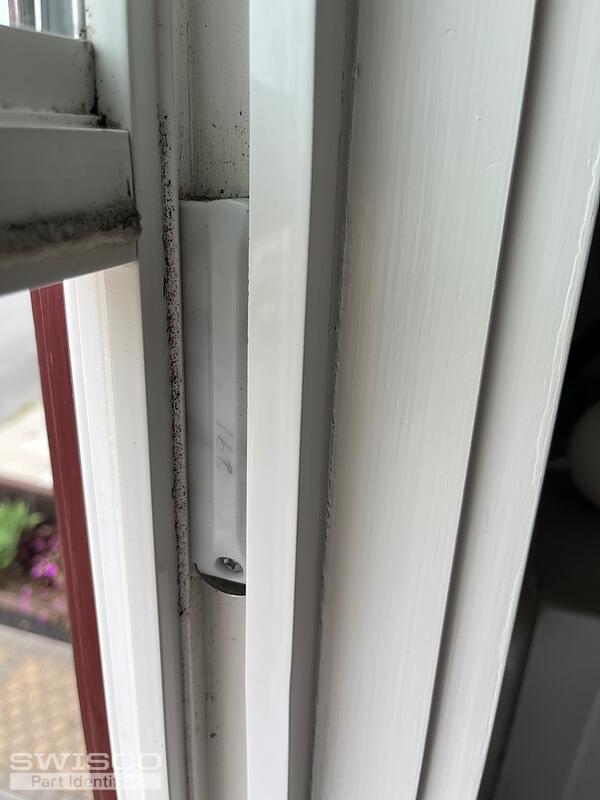

Seems like they are three springs per side
5 user uploaded images
3 Replies
Quick Learner from San francisco
Jul 22, 2024 2:49 pm

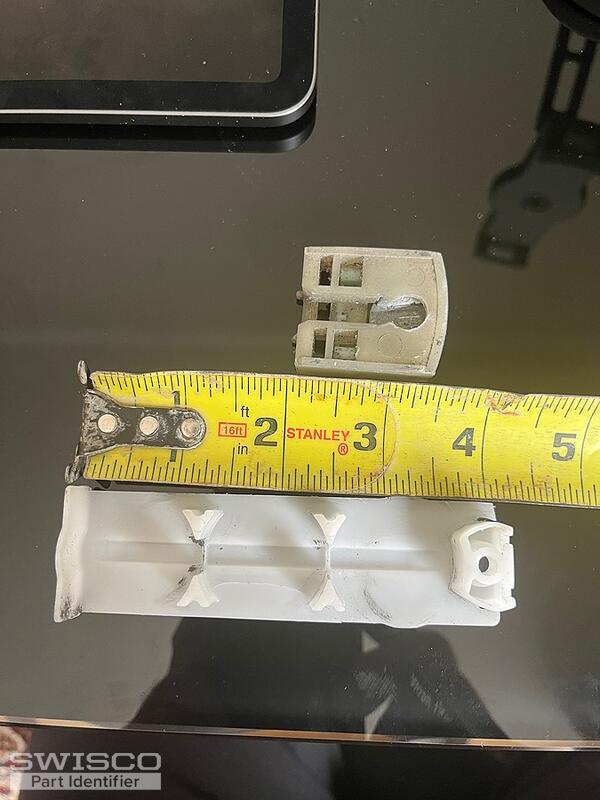

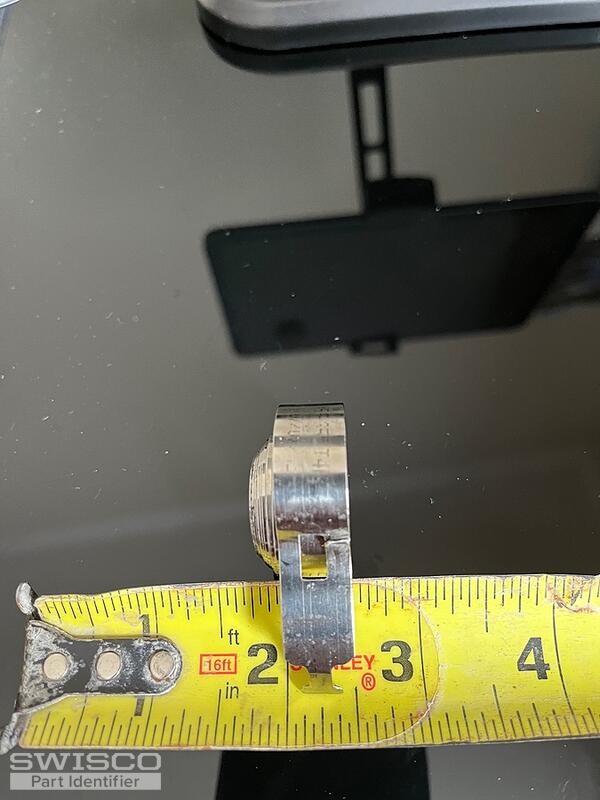

I identified my springs 4.5lbs 35 inches three per side sending a picture of the shoe thanks
5 user uploaded images
Emily from SWISCO
Jul 24, 2024 10:16 am
Hey there!

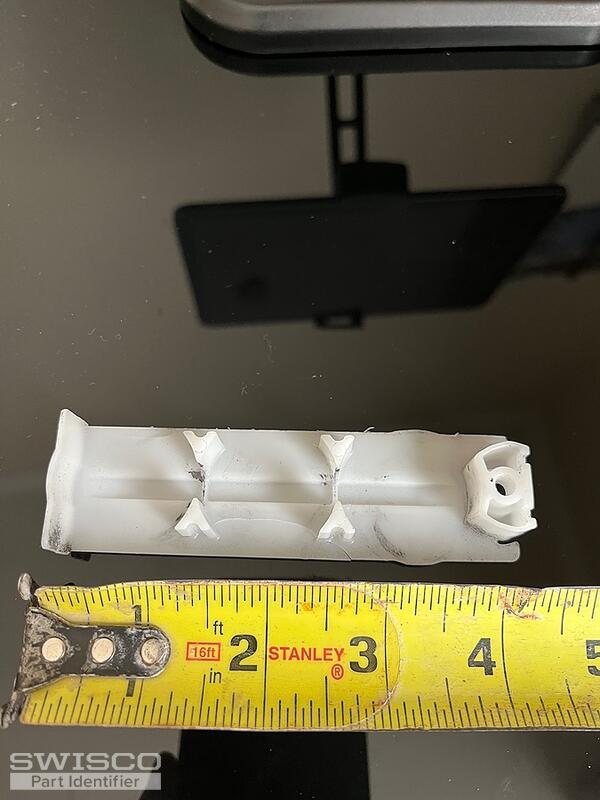

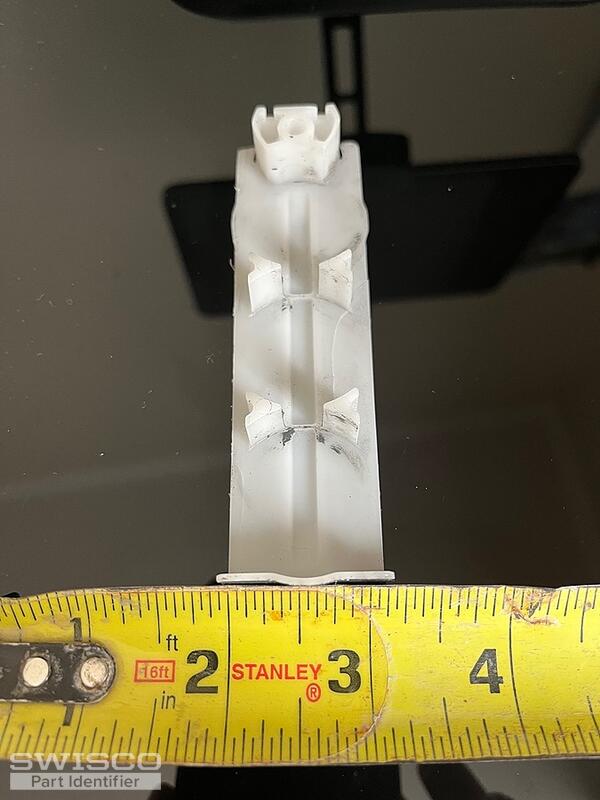

Thanks for reaching out to us. Check out the 15-150T support. This is used with the 1/2" Series 160 coil balances. See the S160-04 4.5-pound spring specifically. The 15-199 appears to be the pivot shoe but you can reuse your old one if it's in good shape.
Alternate image for 15-150T
