Stripped Crank for a Bonneville Casement Window

Home Owner from Fairfield, CT

Aug 12, 2020 3:52 pm

The crank in our Bonneville casement window is stripped and I have to push it initially to open it. Once opened about an inch, the crank then works. My assumption is that I need to replace the full crank unit. I am attaching phots of the crank (white), the window sill where the crank unit attaches to the window and the label on the actual window. Where can I get a crank unit to replace mine and/or is there a simpler way to fix the crank?

3 user uploaded images

8 Replies

Tom from SWISCO

Aug 17, 2020 2:09 pm

I agree, it sounds like the gears in your operator are stripped out. We can definitely help, but I need a more complete photo of the operator in whole. That includes the arm, which is mostly obscured in your photo. You don't have to take it out, you just have to at least disconnect the arm from the track so that I can see the whole thing. Thanks!

Home Owner from Fairfield, CT

Aug 17, 2020 2:52 pm

Thanks for the response. I am traveling right now and will be home tomorrow. I will send complete photos tomorrow. Thanks in advance for the help. Bruce

Tom from SWISCO

Aug 18, 2020 8:56 am

Not a problem! I'll be here at your convenience.

Home Owner from Fairfield, CT

Aug 18, 2020 4:28 pm

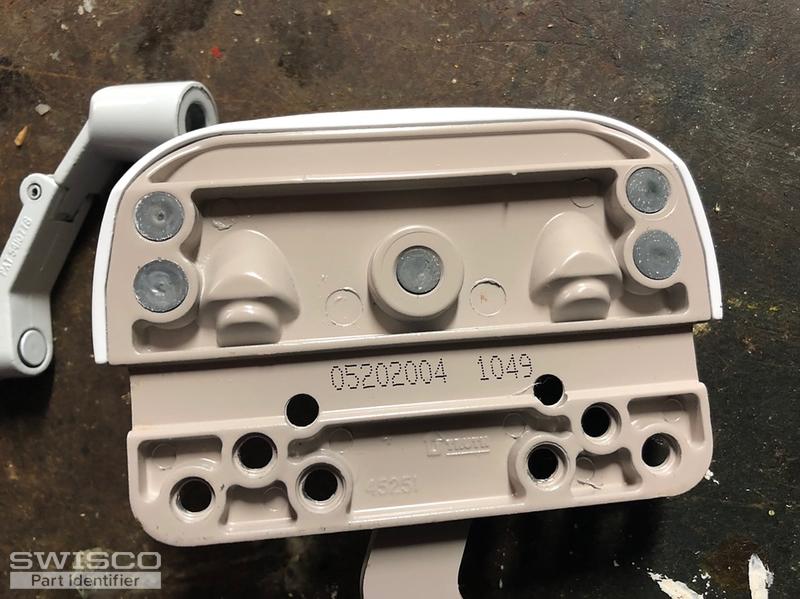

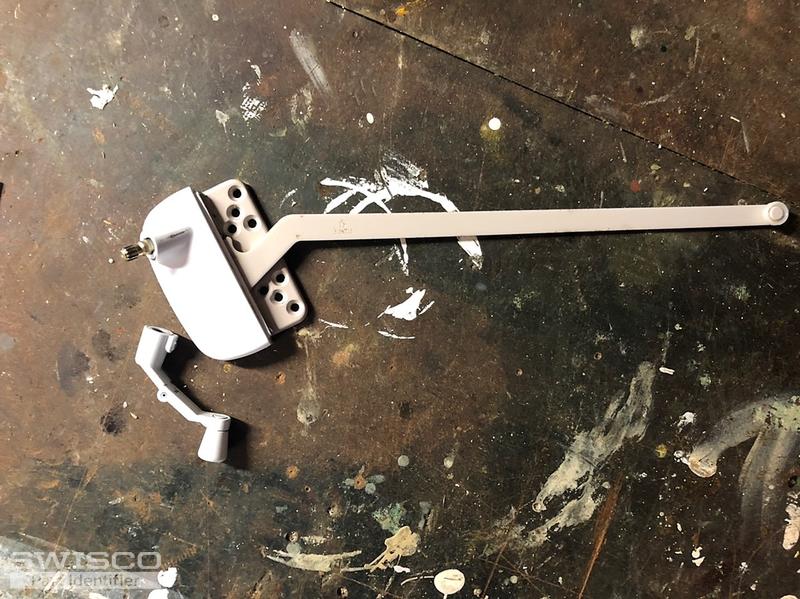

Here are pictures of the stripped crank unit. Is this what you need?

Bruce

2 user uploaded images

Tom from SWISCO

Aug 19, 2020 8:40 am

Thank you, Bruce, that photo is perfect. That operator looks very similar to our 39-014 (opposite side being 39-013), which has a 13-1/2" long arm. Yours looks a bit long so I think that may be what you want. Just in case my eyes are way off, though, we also sell the 39-028E (opposite side being 39-027E), which is the same part but with a 9-1/2" long arm.

Home Owner from Fairfield, CT

Aug 19, 2020 11:05 am

Tom - The arm is 13.5 inches long from the wheel at the tip to the white base where the crank handle resides. So it looks like 39-014 part would be correct. Should I just order it online or can you help me?

Bruce

Tom from SWISCO

Aug 19, 2020 1:13 pm

Great! I can't place an order for you here, no, but you can order directly from our site whenever you wish.
