Tilt balance with top cover block

Question

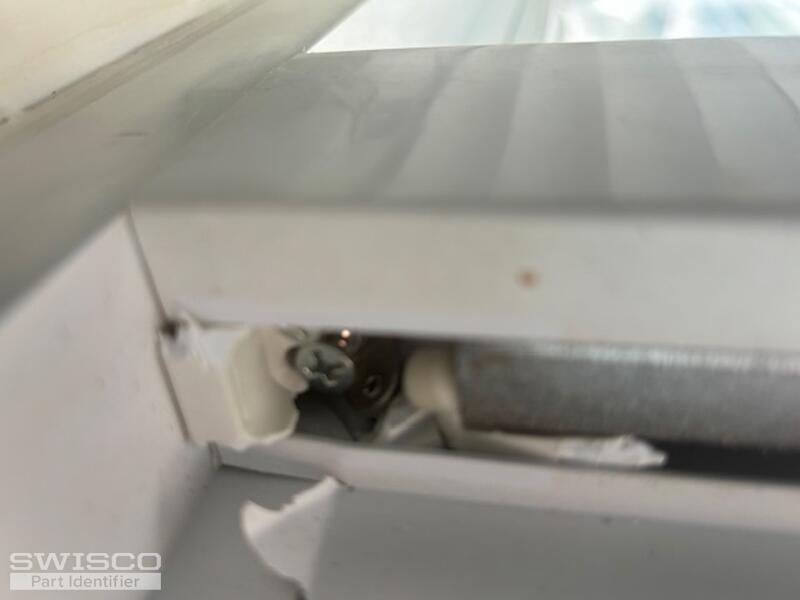

I need to replace the mechanism for both sides of the window.
size is
27 5 GV CMC 1.

Jasmine · Accepted Answer

Thanks for posting! Your channel balance reminds me of the S765-28 Balance. You'll need to select the 27-5 stamp option. The plastic piece at the top of the window is the 26-053A. The screw cover is no longer available, so you'll need to reuse the one you have, if possible.

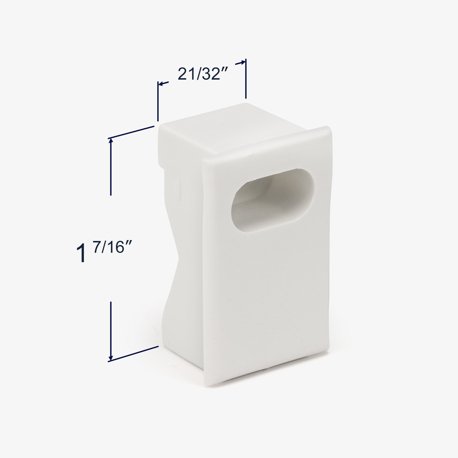

Dimensions for 26-053A

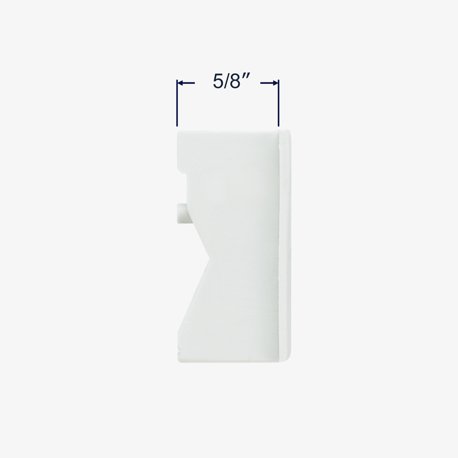

Alternate image for 26-053A

Your exact pivot shoe is no longer available, so you'll need to use the 15-046 Pivot Shoe to replace it. The compatible pivot bar is the 26-040.

Alternate image for 15-046

Alternate image for 26-040

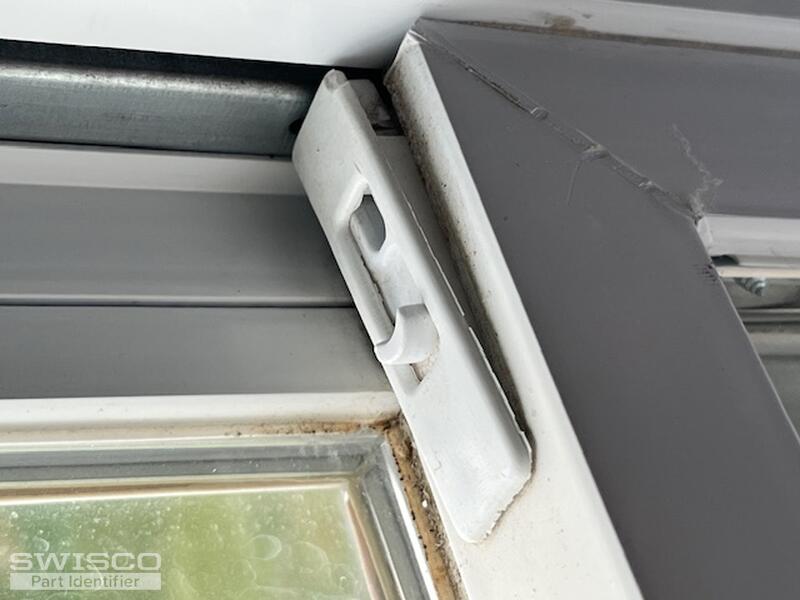

For the tilt latches, you can use either the 26-393A or the 26-393B. To determine which of these is the correct replacement you'll need to compare the design of the latch. You'll notice the 26-393B has a peanut shaped nub on the side of it.

Dimensions for 26-393A

Dimensions for 26-393B
