Triple coil spring and shoe

A handy person from Plainfield, IL says:
August 4, 2021

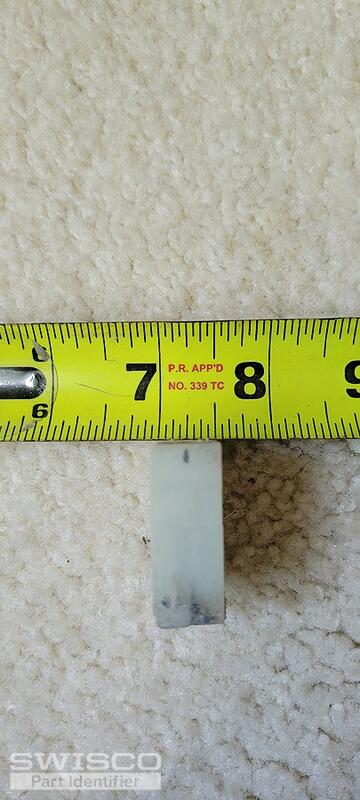

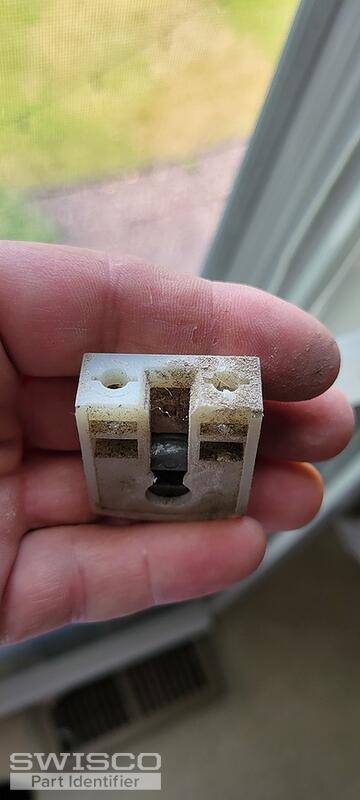

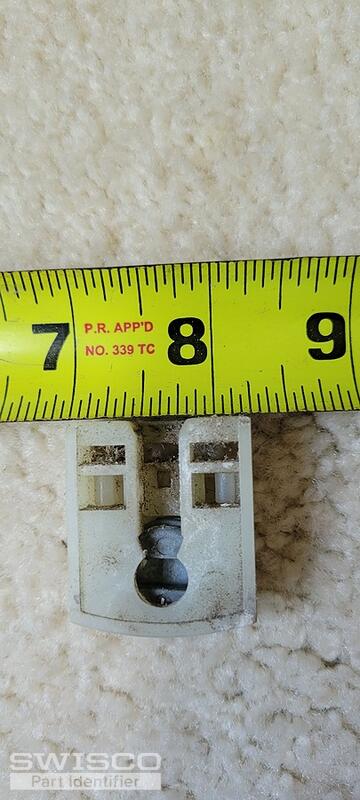

Need help identifying replacement parts for these triple spring balances and shoes.
Thumbnail of the uploaded file named 20210730_092221.jpg
Thumbnail of the uploaded file named 20210730_092231.jpg
Thumbnail of the uploaded file named 20210730_092156.jpg
Thumbnail of the uploaded file named 20210730_091625.jpg
Thumbnail of the uploaded file named 20210730_091619.jpg
Profile picture of Emily
Emily from SWISCO responded:
August 9, 2021

Hi there!

Take a look at our 15-199 pivot shoe, which uses the Series 160 and Series 165 coil springs. Carefully compare our dimensions to your original hardware to see if this matches what you need.
A handy person from Plainfield, IL says:
August 11, 2021

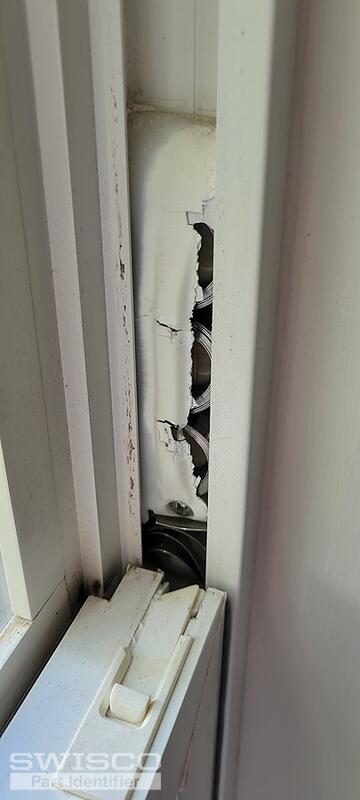

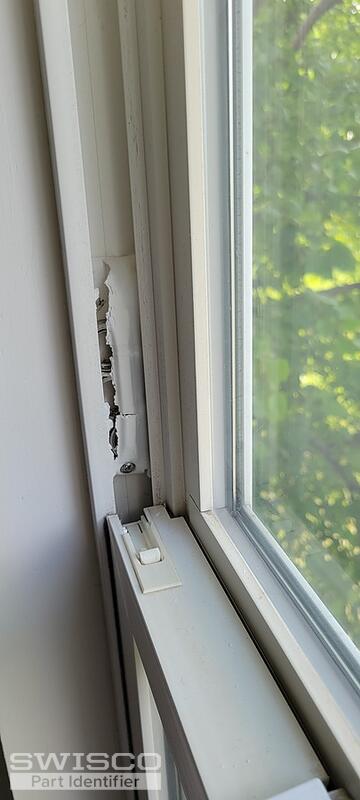

I also need the white plastic housing that holds the springs. What part number is that?
Profile picture of Emily
Emily from SWISCO responded:
August 12, 2021

It would depend on the thickness of your coil springs. It looks like you have a triple coil system, if the springs are 1/2" thick, a triple coil support like the 15-150T should work. If they're 3/8" thick, see the 15-205 instead.  The video below shows how to remove and replace these types of systems.
Pivot Shoe, 17/32" Thick
Pivot Shoe, 17/32" Thick
15-199
$3.70
1/2" Coil Triple Support
1/2" Coil Triple Support
15-150T
$1.96
3/8" Egress Coil Triple Support
3/8" Egress Coil Triple Support
15-205
$2.10
How to Replace a Triple Coil Balance System
How to Replace a Triple Coil Balance System
VIDEO
WATCH >
How to remove window pivot shoes
How to remove window pivot shoes
VIDEO
WATCH >
Anatomy of a tilt window
Anatomy of a tilt window
VIDEO
WATCH >
How to replace a window coil balance
How to replace a window coil balance
VIDEO
WATCH >
Removing a Triple Coil Window Balance
Removing a Triple Coil Window Balance
GUIDE
READ >
