Truth Hardware window crank and lock

Contractor from Carmel, NY
Jun 14, 2023 12:50 pm
Hi,

We are looking for two separate pieces of hardware.

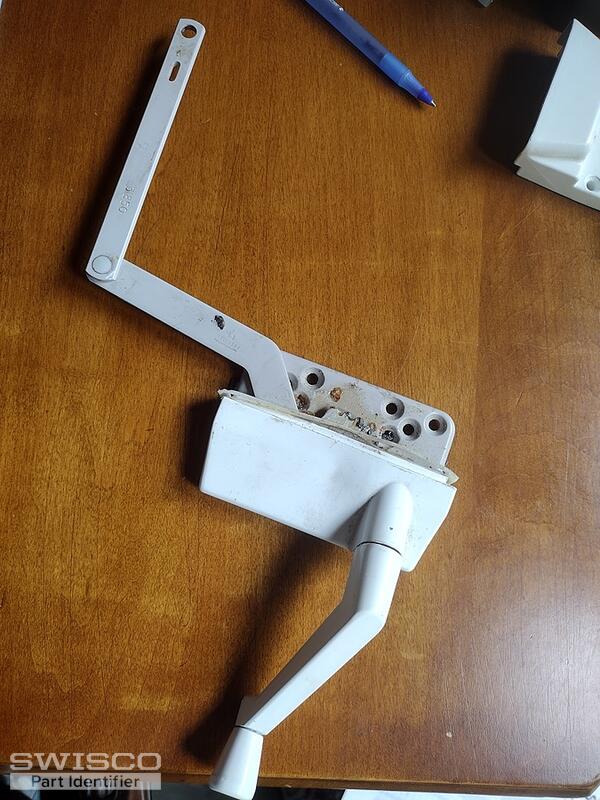

The first is the white window operator with rotating handle:

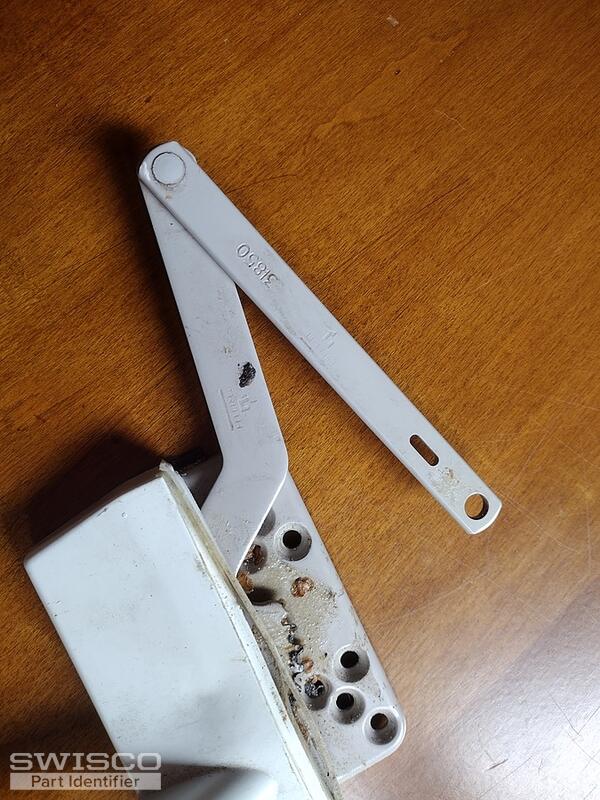

Number ID found on metal arm - 31850

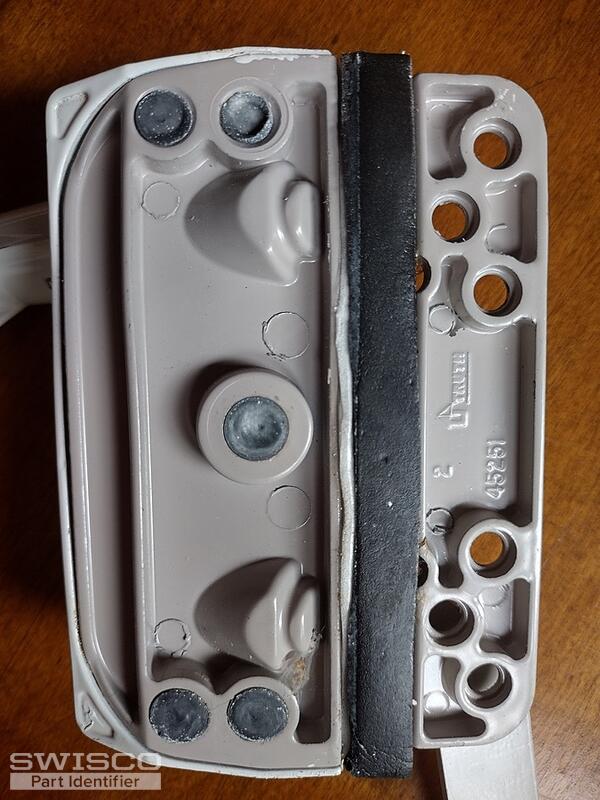

number ID found underneath base - 45251 and there is a number 2 stamped above

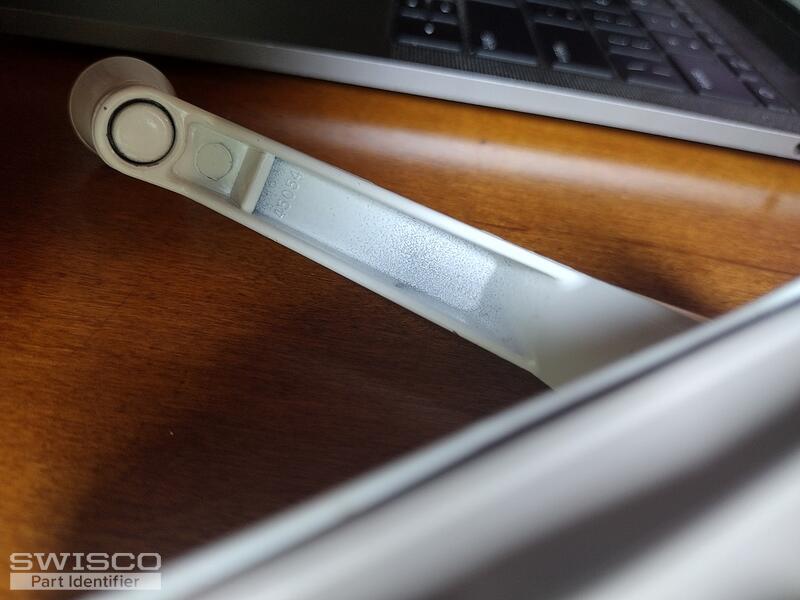

number ID found on white rotating handle - 45054

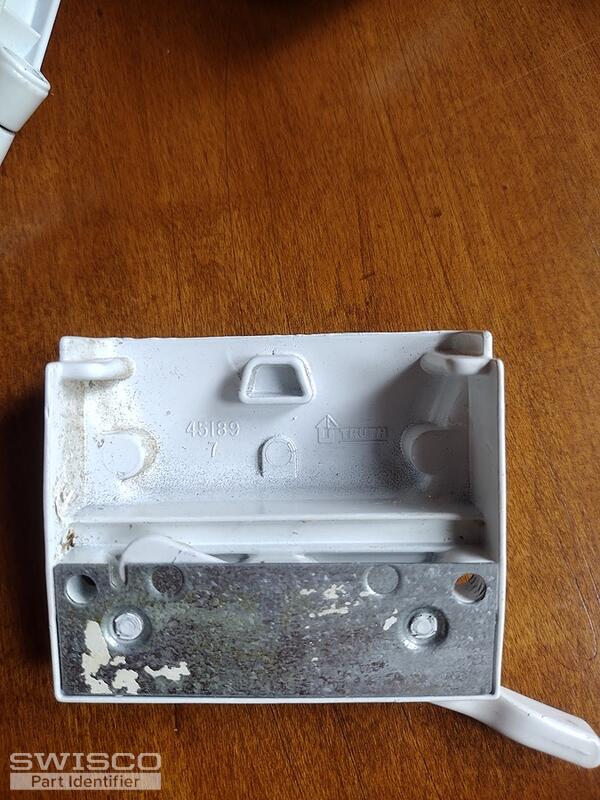

the second piece is a white window lock I believe with a small handle mechanism that moves left/right:
number ID found under base - 45189 and there is a number 7 stamped below

Thank you
IMG_20230614_123546290 IMG_20230614_123557186 IMG_20230614_123608342_HDR IMG_20230614_123622065_HDR IMG_20230614_123650650
5 user uploaded images
1 Replies
Emily
Emily from SWISCO
Jun 14, 2023 2:03 pm
SWISCO
EXPERT

Hello!

Your operator looks like an older version of the 39-315 and 39-316. I can't be certain about the casement lock without seeing a photo of the front but the 45189 code has been associated with the 38-144 in the past. For new keepers, see the 38-276 and 38-277. Carefully review the specifications for these parts and see how they compare with your old hardware.
