What do I need for replacement

Handy Person from Florida

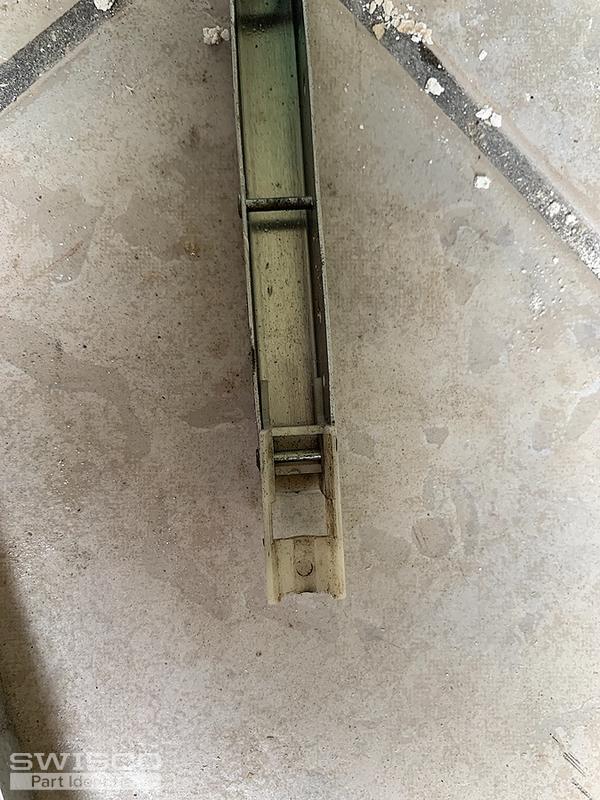

23" long with stamp 2240A
I need side clips as well
4 user uploaded images
4 Replies
Bob
Bob from SWISCO
SWISCO
Expert

Looks like you have either the S351-23 or S390-23. The only difference between these two balances is the depth of the bottom nylon shoe, so compare both with your old hardware to see what matches best. For a new stamp option choose 2240.

If by side clips you mean take-out clips, see our 16-002

Handy Person from Florida
Would it be better to go with the new stamp? The windows are double hung. Are all four of them the same?
Bob
Bob from SWISCO
SWISCO
Expert

Each pair of balances should be identical for the sash they're used with. The sashes in the same window may indeed use the exact same length and stamp options, but the sashes also might be different sizes, in which case the balances would differ. You'll need to inspect them to see. You want to replace the stamp options the original pairs used. Unless the window had trouble functioning to begin with, using new stamp options would not work out well and result in windows that are too difficult to either open or close.
