Which parts do I need

A home owner from Philadelphia says:
September 13, 2021
I have some 20 y/o Roma Therm windows that need new balances and pivot bars. Here are some photos of what I have. Can you recommend replacement parts? the windows do not have cut outs in the channels to take out the broken pieces. Is that something I can cut into the channel?

When I order the parts can I come by to pick them up?
Thumbnail of the uploaded file named 1-Pivot Bar piece (2).JPG
Thumbnail of the uploaded file named 1-Broken-top spring pieces loose (2).JPG
Thumbnail of the uploaded file named 1-Close up (2).JPG

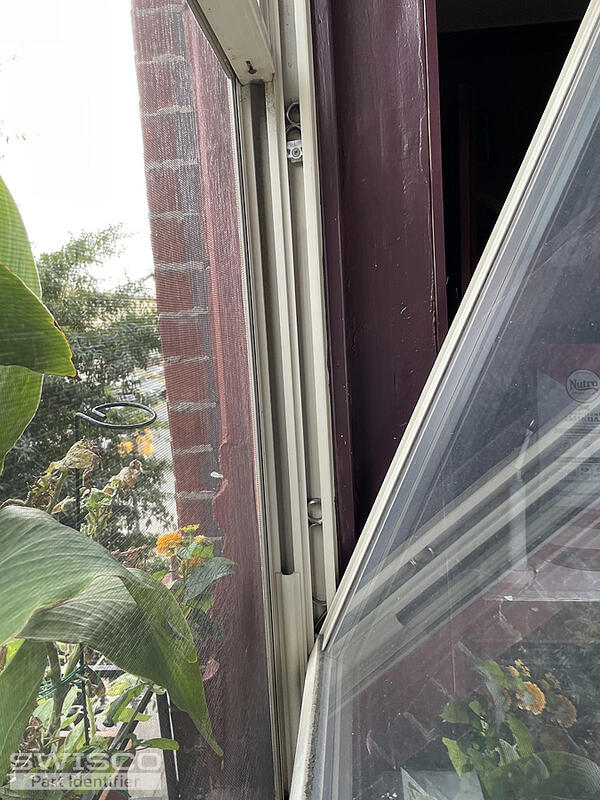

Thumbnail of the uploaded file named 1-Not Broken (2).JPG
Profile picture of Emily
Emily from SWISCO responded:
September 17, 2021

Hi there!

Thank you for your patience during our busy season. Do you have an undamaged pivot bar you can show us? We'll also need you to remove an undamaged pivot shoe from the window to compare to our inventory. I've attached a video below on how to remove yours using the cut-out method.

We're strictly E-commerce, so we do not have a pick-up option, unfortunately. Apologies for any inconvenience.
A home owner from Philadelphia says:
September 17, 2021
Here are some photos that I hope help. Interesting how many pieces the spring was broken into. It looks like it had 2 springs and the spring retainer is screwed into the frame about half way up. I think this will answer your questions. I can send higher res photos if that helps.
thanks

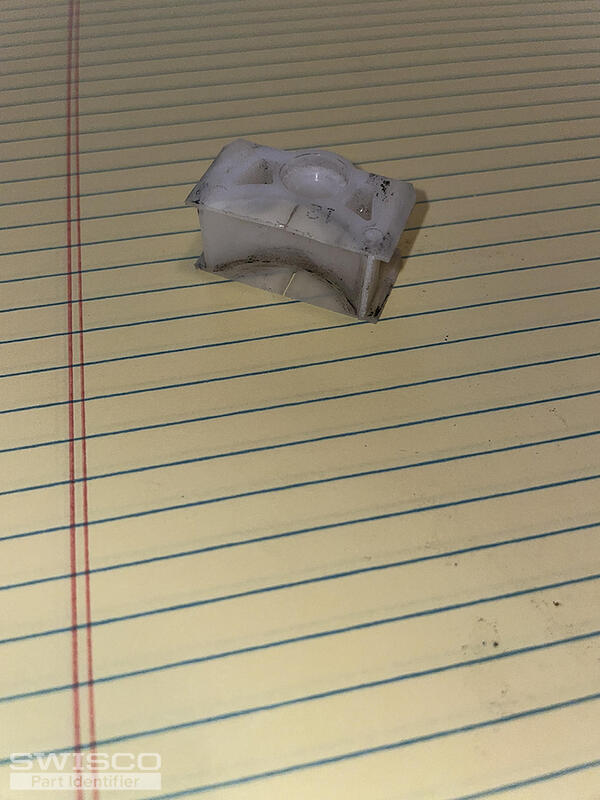

Thumbnail of the uploaded file named Spring Retainer Top (2).JPG

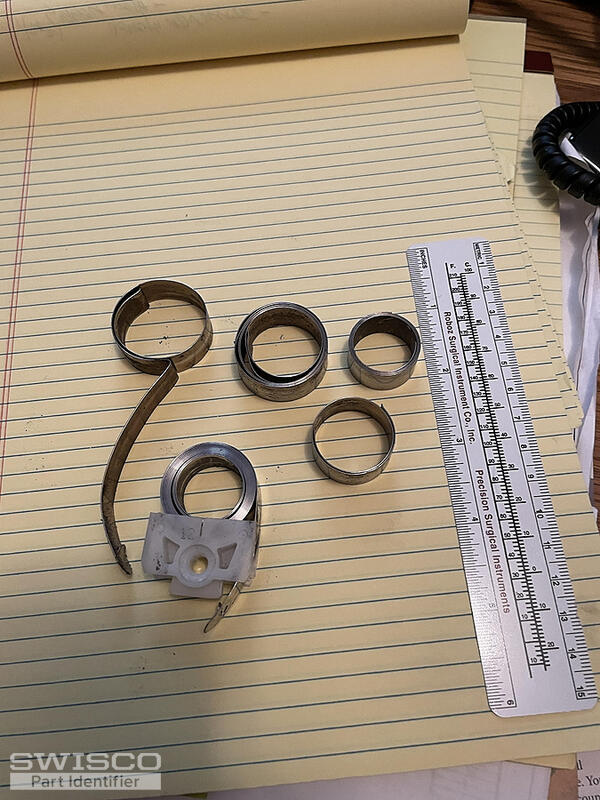

Thumbnail of the uploaded file named Broken Springs (2).JPG

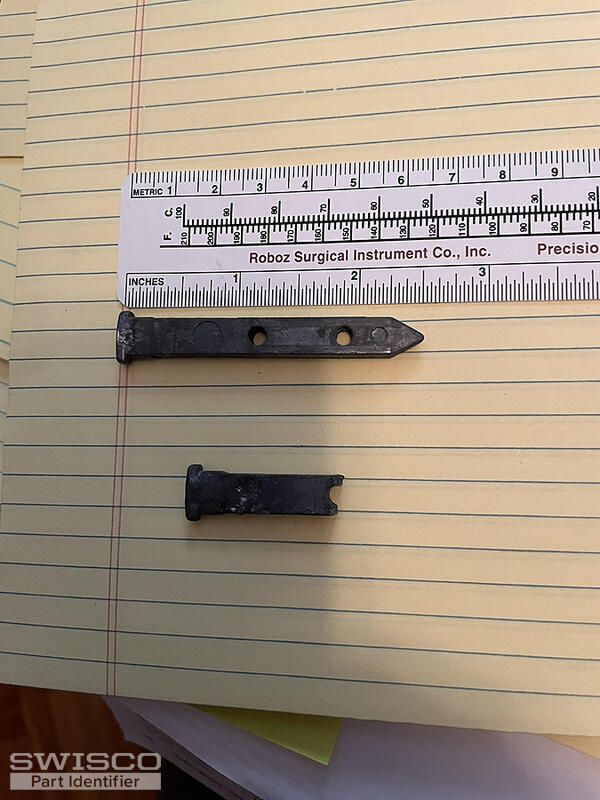

Thumbnail of the uploaded file named Pivot Bar intact (2).JPG

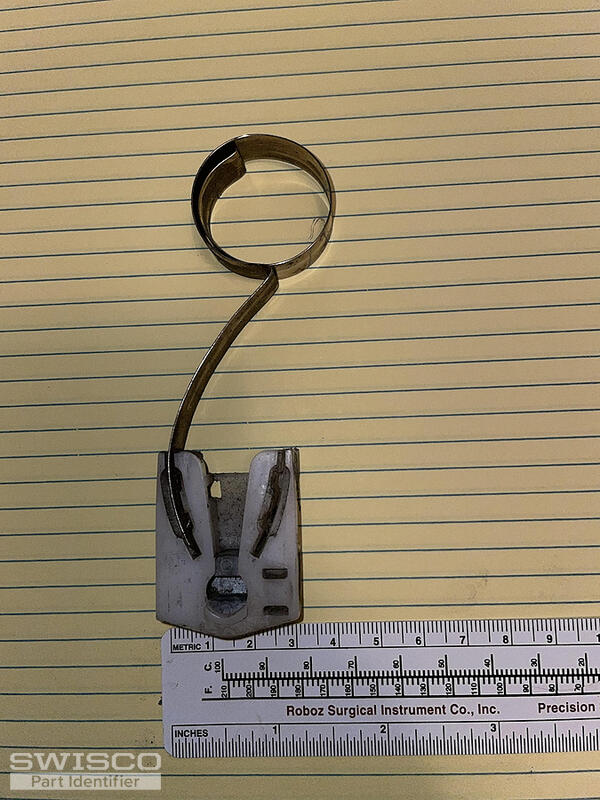

Thumbnail of the uploaded file named Pivot Shoe 1 (2).JPG

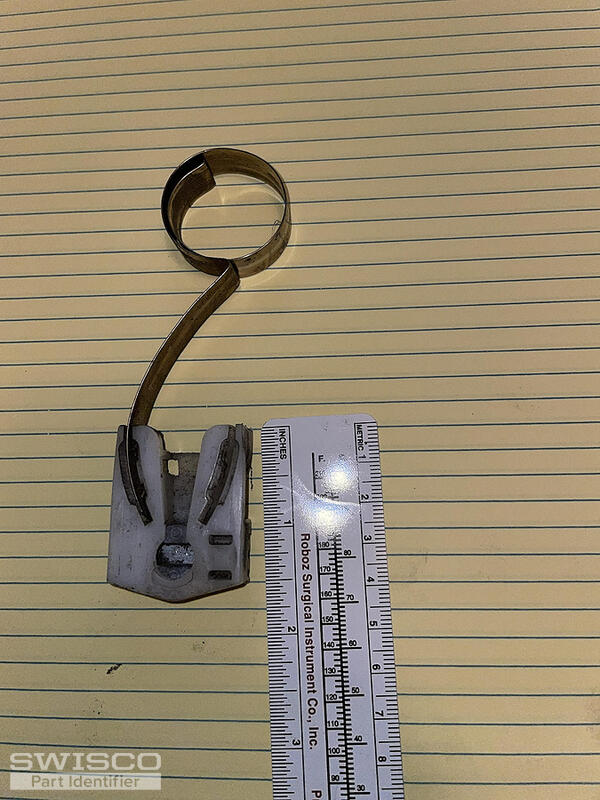

Thumbnail of the uploaded file named Pivot Shoe 2 (2).JPG
Profile picture of Emily
Emily from SWISCO responded:
September 20, 2021

Thank you for the additional pictures! This looks like our Series 140 Coil balance system. We don't carry this exact pivot bar, but take a look at our 26-272, 26-378 and 26-452. Compare our dimensions to yours and see if you think any could work as a substitute.
3" Pivot Bar, Weathercraft
3" Pivot Bar, Weathercraft
26-272
$2.27
3" Pivot Bar
3" Pivot Bar
26-378
$2.10
T Bar Pivot
T Bar Pivot
26-452
$2.07
