Window Coil Balancer

Start a new Discussion

Home Owner from Oklahoma

Apr 6, 2025 4:00 pm

Hello, I don't know the correct parts to order.
Coil: #5 35" P 5232208

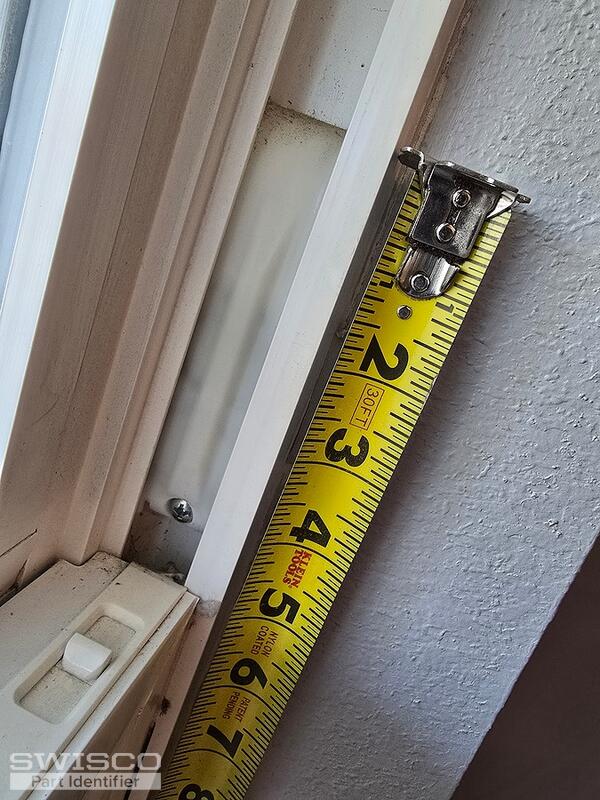

5 user uploaded images

6 Replies

Bob from SWISCO

Apr 6, 2025 7:18 pm

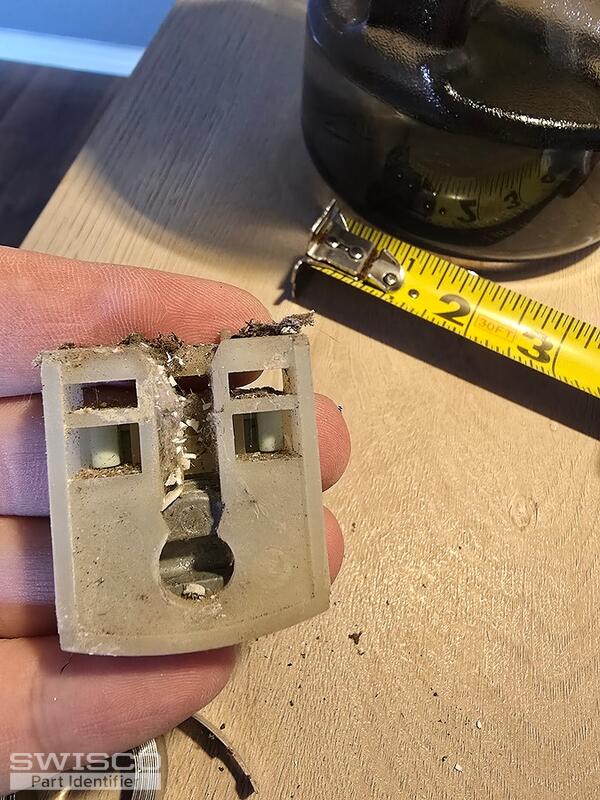

Thanks for posting. This looks like a 15-199 Pivot Shoe. If the coil spring tape is 3/8" wide, then it's a Series 165 spring. A spring stamped #5 can be replaced with the S165-5 5 pound spring. Let me know if you have further questions.

Home Owner from Oklahoma

Apr 6, 2025 8:05 pm

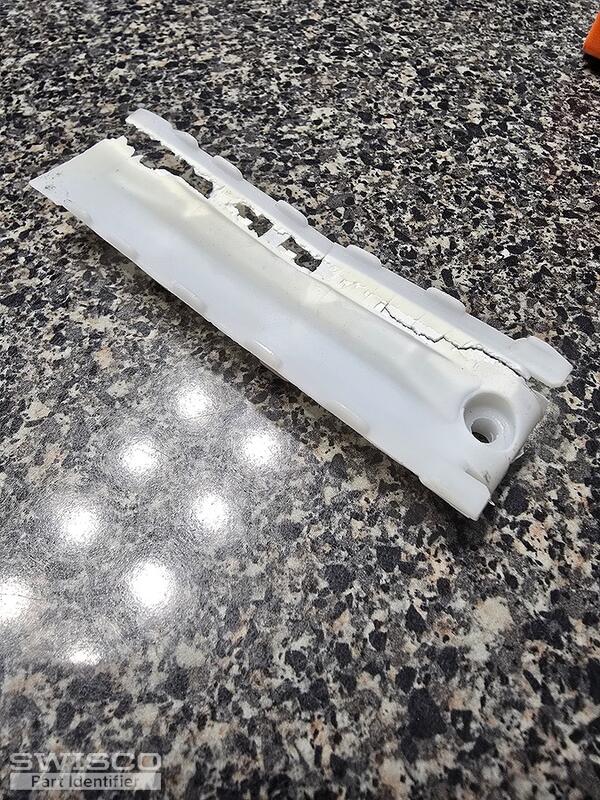

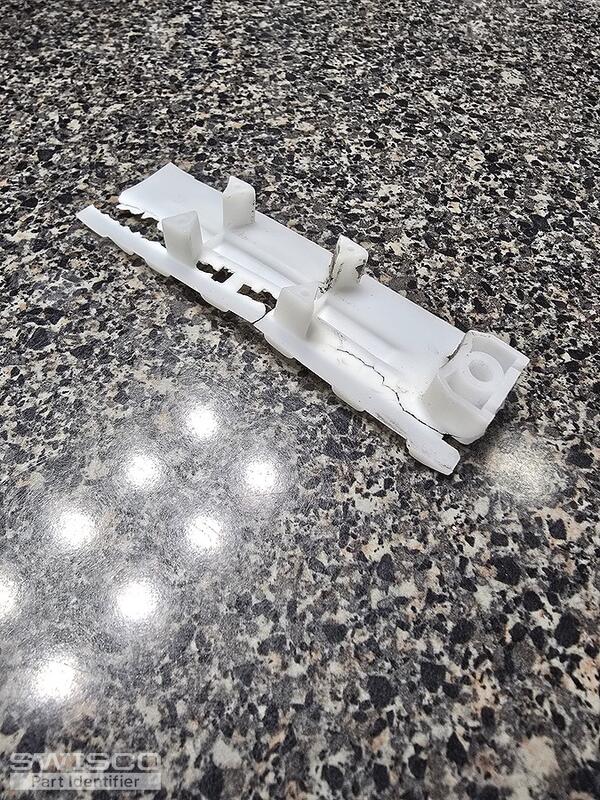

What would be a good replacement for these coil cover

3 user uploaded images

Bob from SWISCO

Apr 6, 2025 9:31 pm

If the coil springs are indeed the 3/8" thick Series 165, then see the 15-205 Double Support or the 15-206 Triple Support.

Home Owner from Oklahoma

Apr 6, 2025 9:51 pm

Yes, it looks like my coils are 3/8" thick. So I will go ahead with your recommendations. It was very helpful and appreciated.
Thank you

Bob from SWISCO

Apr 6, 2025 10:26 pm

Glad to be of help! Let us know if you need anything else.
