Window Crank - replacement

A friend from USA says:

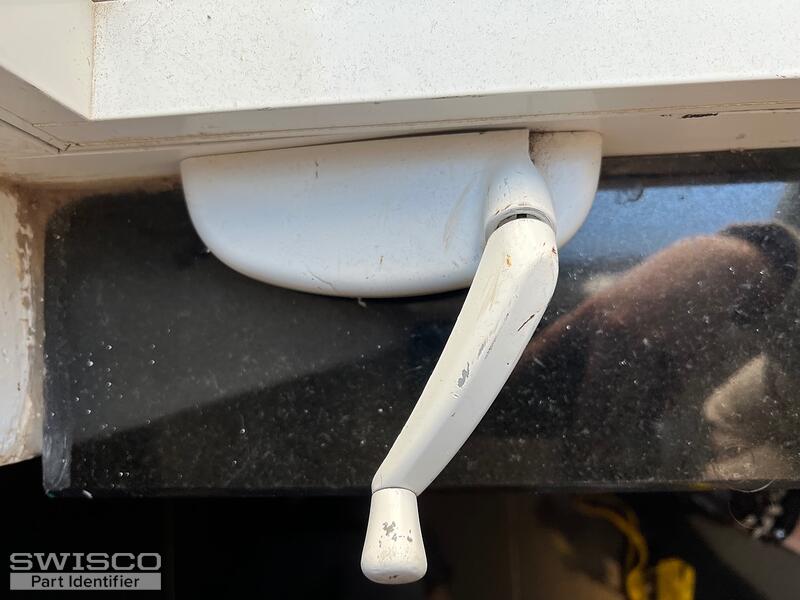

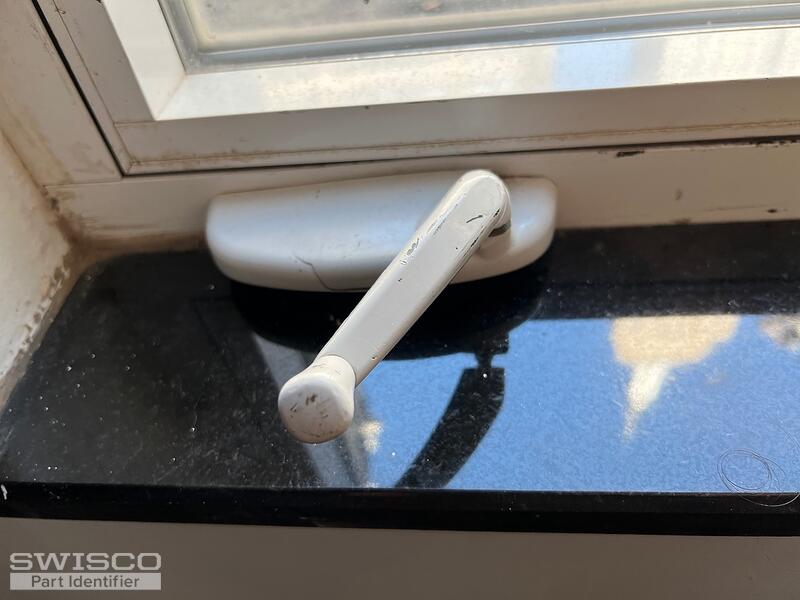

Window Crank about 5 1/2 inches long
Thumbnail of the uploaded file named IMG_6571.jpg
Thumbnail of the uploaded file named IMG_6572.jpg
Profile picture of Tom
Tom from SWISCO responded:

Hello! Looks like your operator base is cracked, so it definitely has to be replaced. We might have the part you need, but too much of the mechanism is obscured in this photo. Would it be possible to see the entire assembly? Seeing it out of the window would be ideal, if that's at all possible.

A friend from USA says:
I will have someone remove it that way I can provide you better pictures.
Profile picture of Tom
Tom from SWISCO responded:

Sounds good! We'll be here whenever you can get that for us.

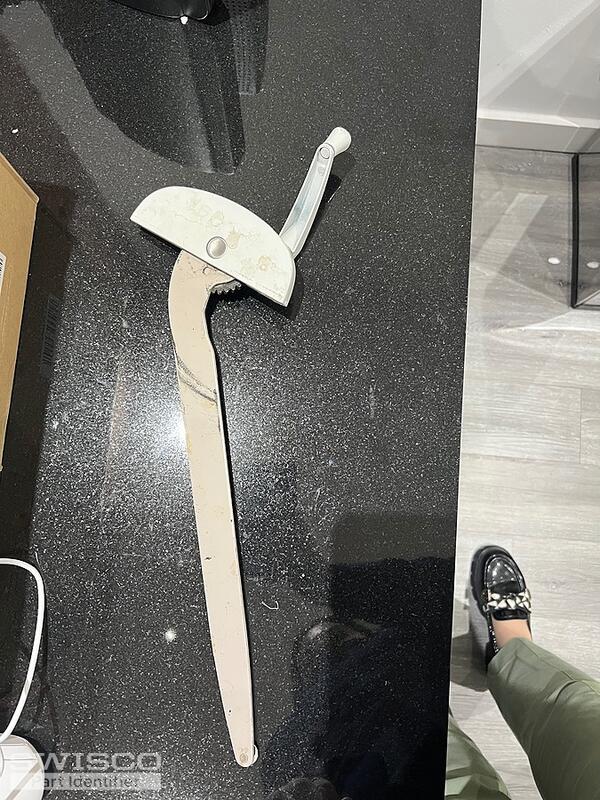

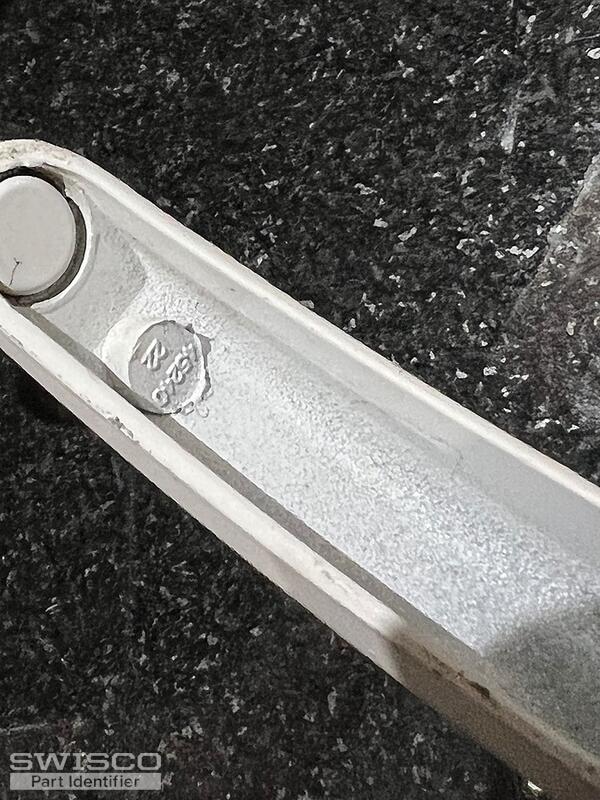

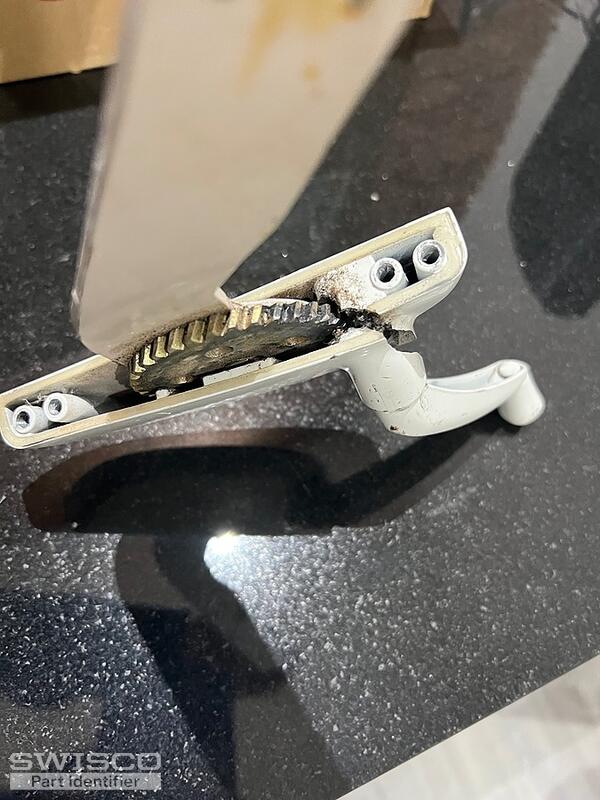

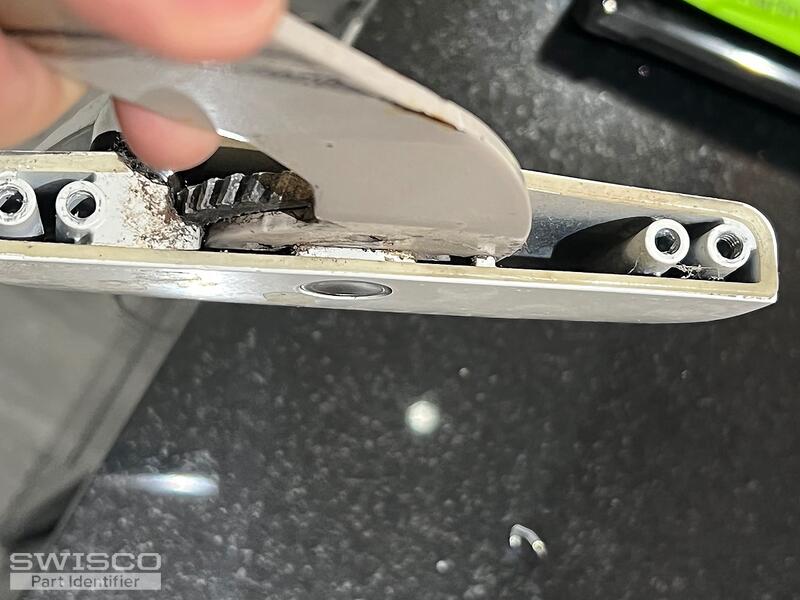

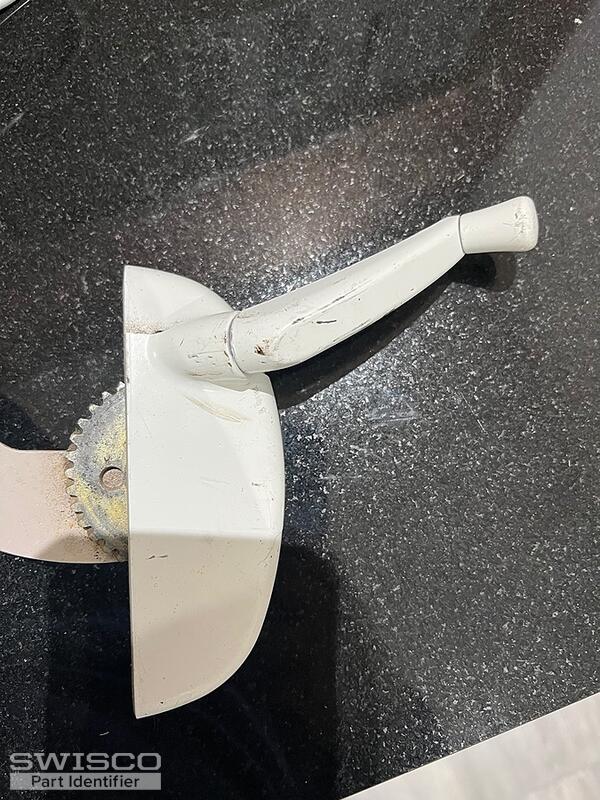

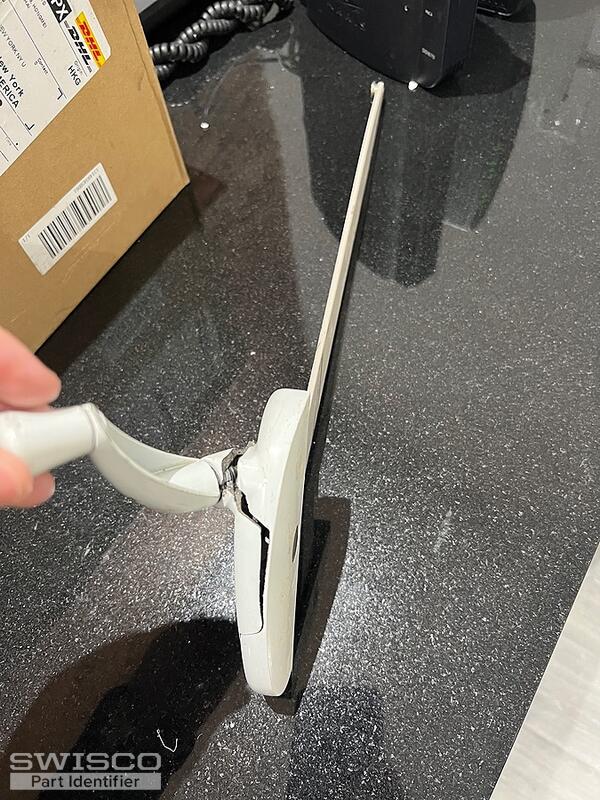

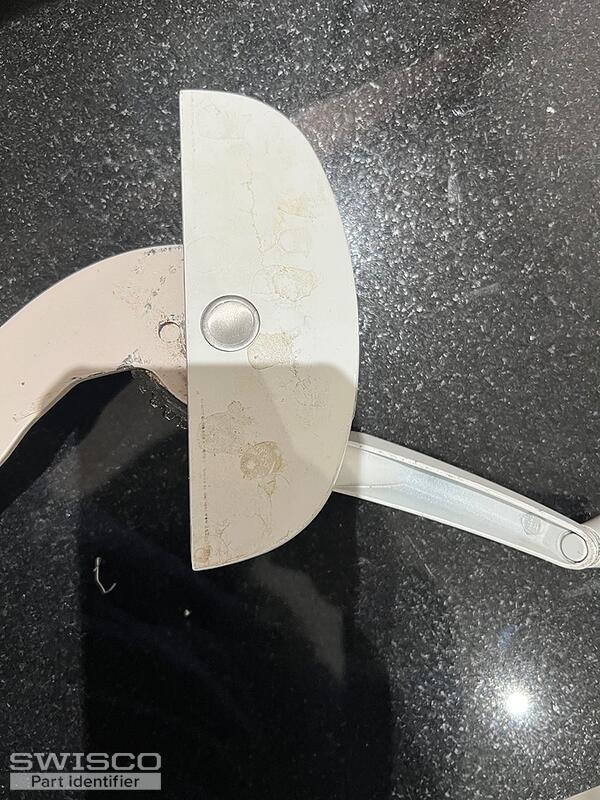

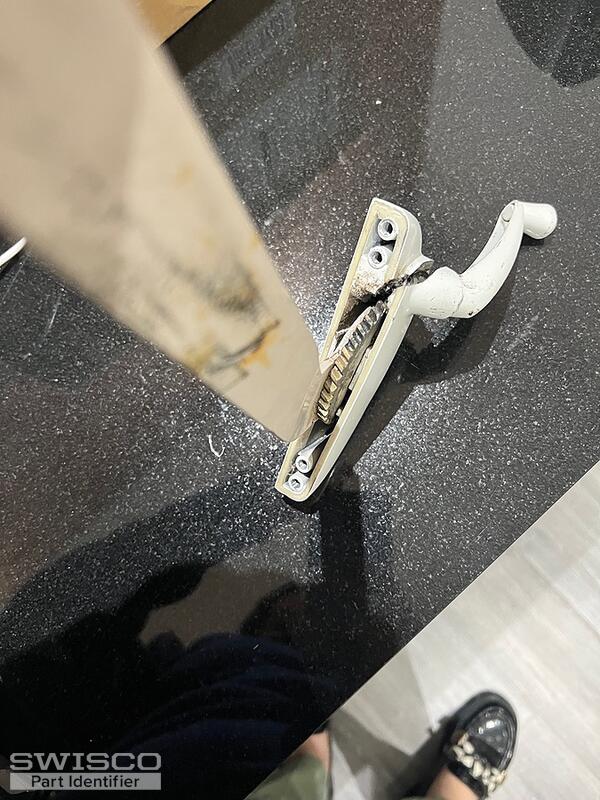

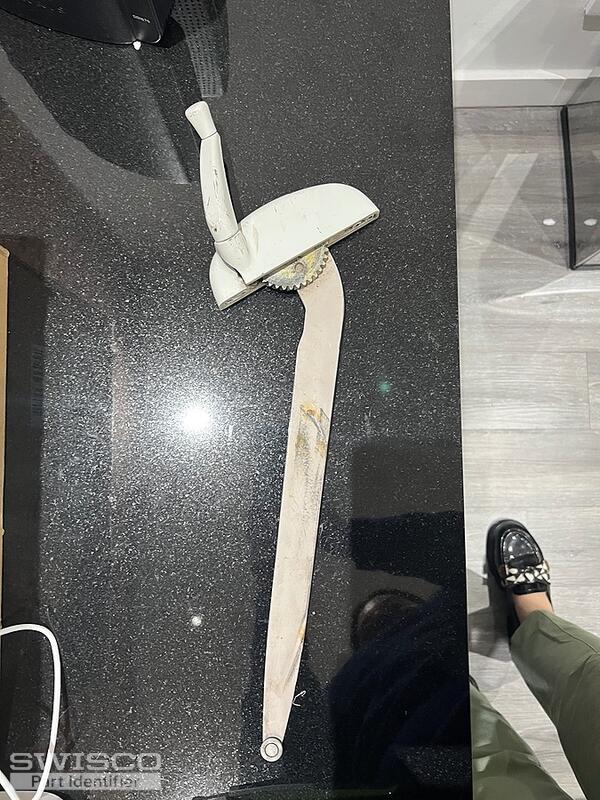

A friend from USA says:
Thumbnail of the uploaded file named IMG_6727.jpg
Thumbnail of the uploaded file named IMG_6728.jpg
Thumbnail of the uploaded file named IMG_6729.jpg
Thumbnail of the uploaded file named IMG_6730.jpg
Thumbnail of the uploaded file named IMG_6733.jpg
A friend from USA says:
Thumbnail of the uploaded file named IMG_6731.jpg
Thumbnail of the uploaded file named IMG_6732.jpg
Thumbnail of the uploaded file named IMG_6735.jpg
Thumbnail of the uploaded file named IMG_6738.jpg
Profile picture of Dave Sr.
Dave Sr. from SWISCO responded:

I'm afraid I'm not familiar with this style operator, or the arm length you need. This is a very unique style and nothing we sell matches.

Some possible alternatives are operators like our 39-022 and 39-023, or maybe the 39-365 and the 39-366. Both of these type operators have the same kind of metal bearing at the end of the arm as your original. However, in each case the arm is a different design and they have a screw-plate on the base, which yours lacks. I'm not sure if yours broke off or if that's an intentional design.

I cannot guarantee that any of these products will work for you but they do appear to be our best options. Look them over and see what you think.
