Window Parts

Quick Learner
Hi ? hoping to get some help to identify the parts I need. I will need three parts. I really appreciate it. Thanks
4 user uploaded images
2 Replies
Jasmine
Jasmine from SWISCO
SWISCO
Expert

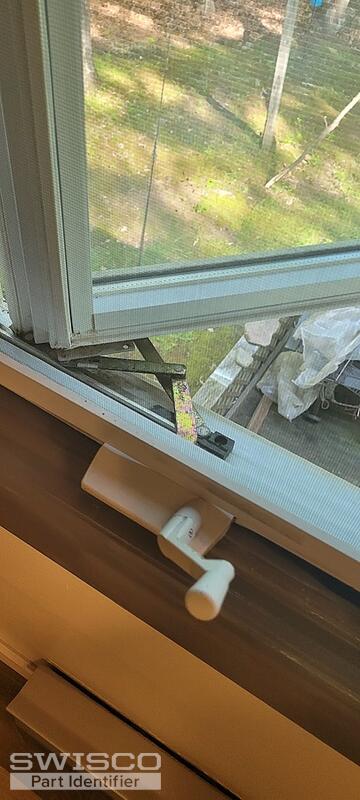

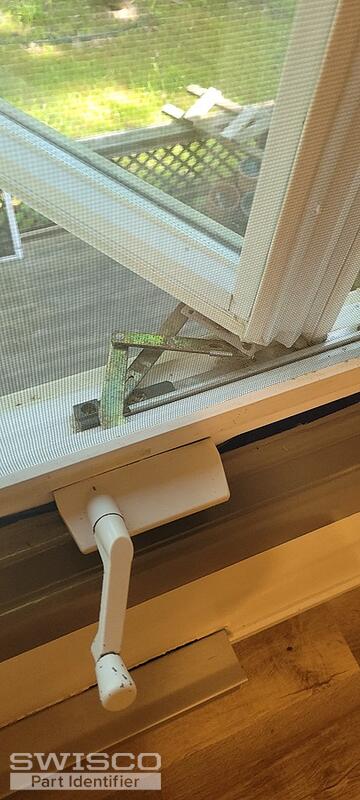

Thanks for writing in! Your casement window operators look like an older discontinued version of either our 39-315 Truth Dyad Operator (and its opposite version 39-316) or our 39-387 Splint-Arm Operator (and its opposite version 39-388).  To confirm if either of these will work as a replacement for your existing hardware take a look over their dimensions below and compare them.

Each of these operators are compatible with the 39-114L Crank Handle.

Alternate image for 39-315
Alternate image for 39-315

Dimensions for 39-387
Dimensions for 39-387

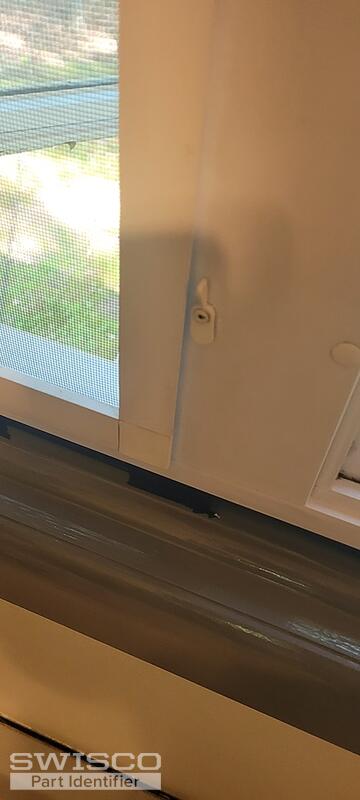

The clip installed to the window looks a lot like the 70-014 Turn Clip. Take a look to see if this is what you need to complete your repairs.

Detail of 70-014
Detail of 70-014

Profile view of 70-014
Profile view of 70-014

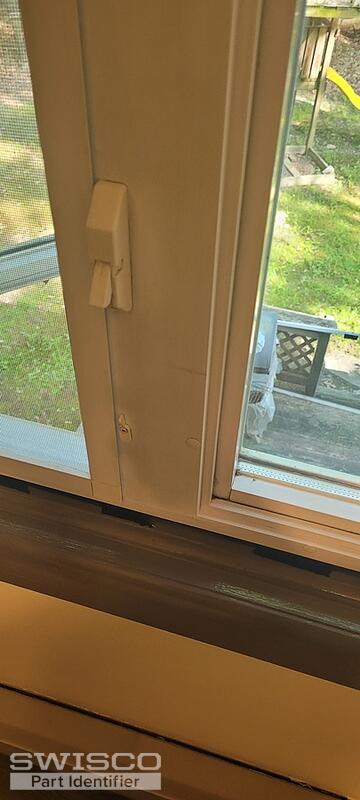

I'm happy to identify a replacement for your window lock, but I will need to see a photo of it removed to determine the correct replacement. It is important to see how it interacts with the compatible hardware and how it installs to the window. Take a look at the video tutorial below for reference.
