Window casement operator and hinges.

Quick Learner from Newnan, GA
Dec 5, 2024 2:08 pm

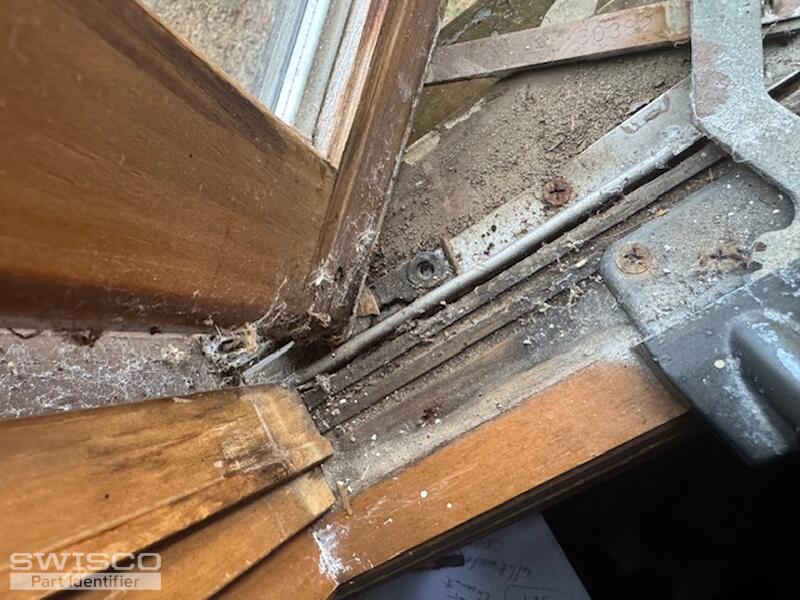

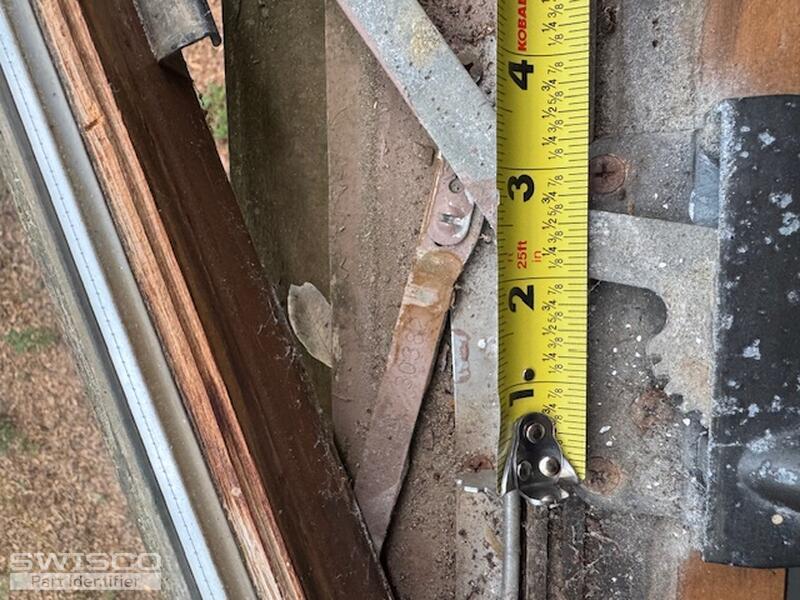

On the casement operator, long arm is 13.5". Do you agree 39-406 makes sense? On the hinges, the base plate is 10". The window strip is around 7.5". The shorter bar back to the base plate is right at 5". Seems like 36-048 would be needed. These are all right side. If you concur, what are the part numbers for the left side?
5 user uploaded images
2 Replies

Tom from SWISCO
Dec 9, 2024 12:56 pm


I agree that our 36-048 hinge would work for your sash, just make sure to replace the top and bottom at the same time. You never want to mix old and new hinges.
Concerning the operator, the 39-406 doesn't appear to match your original. This more strongly resembles our 39-014. Look it over and see if you agree. We also sell the 39-013 for the opposite side if you needed it.

Dimensions for 39-014
