Product Code: 39-406

Front Mount Casement Operator, 13-1/2"

Name: Front Mount Casement Operator, 13-1/2"
SKU: 39-406
Price: 34.77 USD
Availability: InStock

$34.77

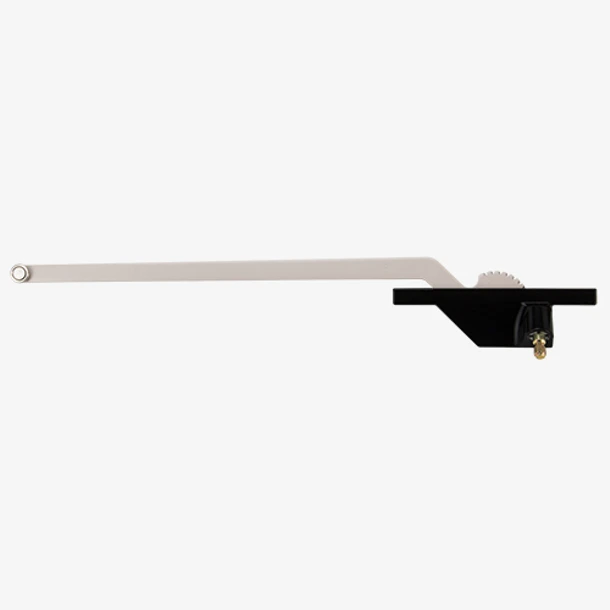

Front Mount Casement Operator, 13-1/2" Image

Quantity	Price
1-4	$34.77/ea
5-9	$32.80/ea
10-24	$31.24/ea
25-49	$29.75/ea
50+	$28.07/ea

Please Note: Bulk pricing applies only to purchases of the same option

black +$0.70 white aluminum +$0.70

Quantity

Add to Wishlist

Product Description

This is a genuine Truth Hardware front mount, single arm casement operator.

See SWISCO product 39-407 for the opposite handed version.
Will provide a full 90 degree window opening.

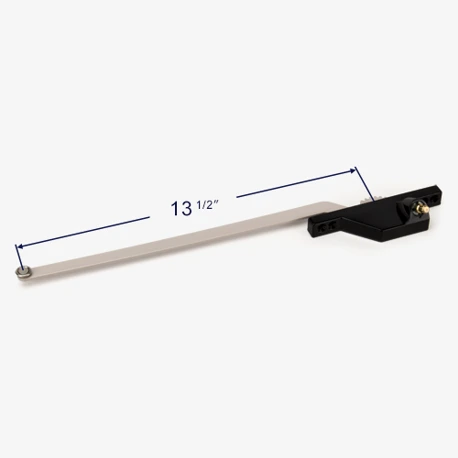

13-1/2" long arm, measured from wheel center to gear center.
11/32" spline; handle sold separately.
Case is manufactured of high-pressure die-cast zinc; hardened steel drive worm and gear arm with a stainless steel roller.
Finish is electrostatically applied, durable coatings that provide excellent resistance to chipping, scratching and corrosion while maintaining color stability for years in direct sunlight.

Handles for part # 39-470

I received my Front Mount Casement Operators. thank you! Now I need the handles that go with them. Can you help me with part # and price?

Replacement handle, Mount and mechanism

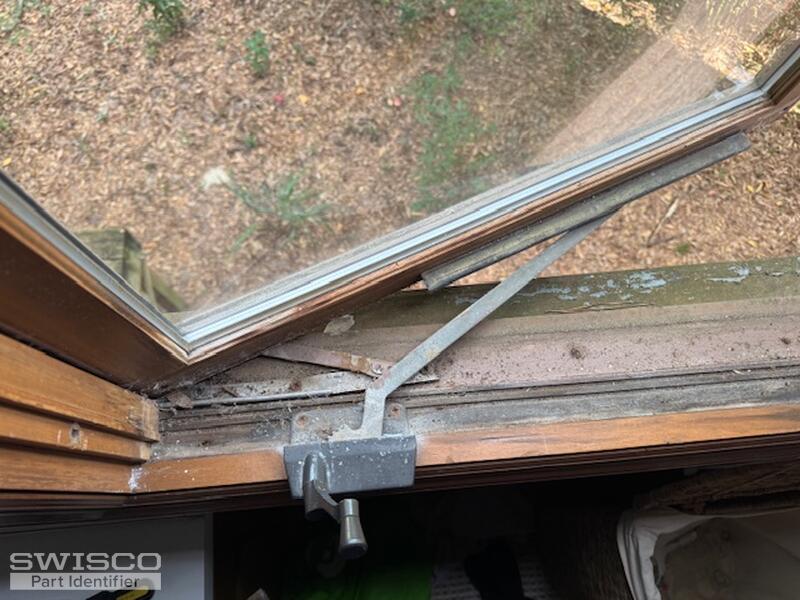

The crank only opens the window an inch, then it "wheels" into emptiness as if it wasn't latching onto the mechanism. truth hardware anderberg mfg

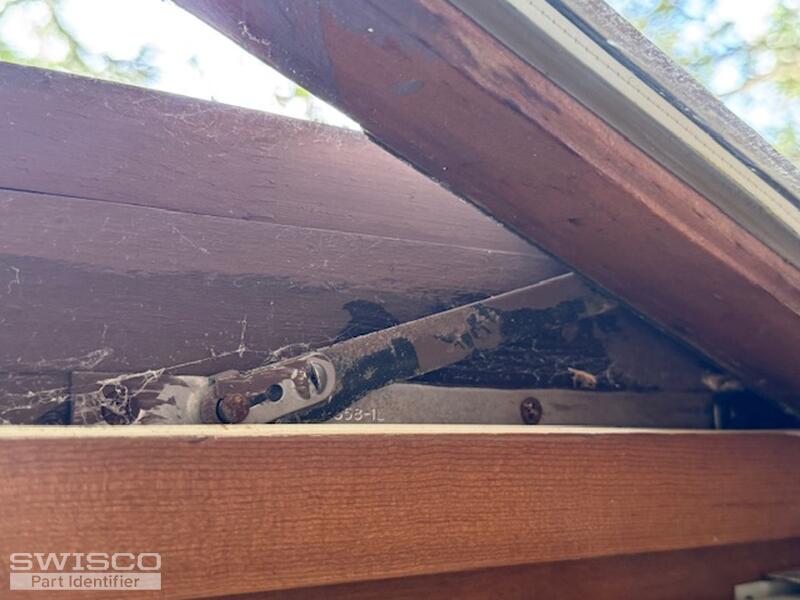

Window casement operator and hinges.

On the casement operator, long arm is 13.5". Do you agree 39-406 makes sense? On the hinges, the base plate is 10". The window strip is around 7.5". The shorter bar back to the base plate is right at 5". Seems like 36-048 would be needed. These are all right side. If you concur, what are the ... (cont.)

Looking for piece to open the left window

Looking for the piece missing that you turn to open the window, the window on the right (from inside) is missing the handle. I was able to get the Brand - Truth. Looks like model number is 30744.

crank and handle

Hello I'm looking for this crank and handle, it is 13-1/2 arm and needs to be rear mounted and black finish, I need 5 left handed and 5 right handed you can reach me by email, thank you and hope to hear back soon
