Window coil balance

Question

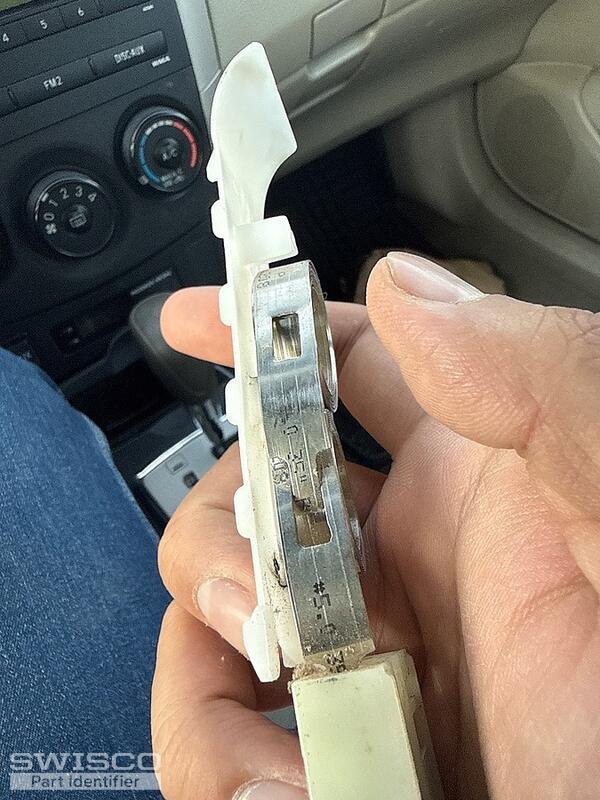

Need help with this window coil balance. Some of my windows will need to replace those parts. I will need the entire set.

Jasmine · Accepted Answer

Hey there,

Thanks for posting! This balance shoe is a match for the 17/32" thick 15-199 Pivot Shoe. Be sure to review and compare the measurements to confirm it is the right fit.

The 26-378 should replace the pivot bar.

Alternate view of 15-199

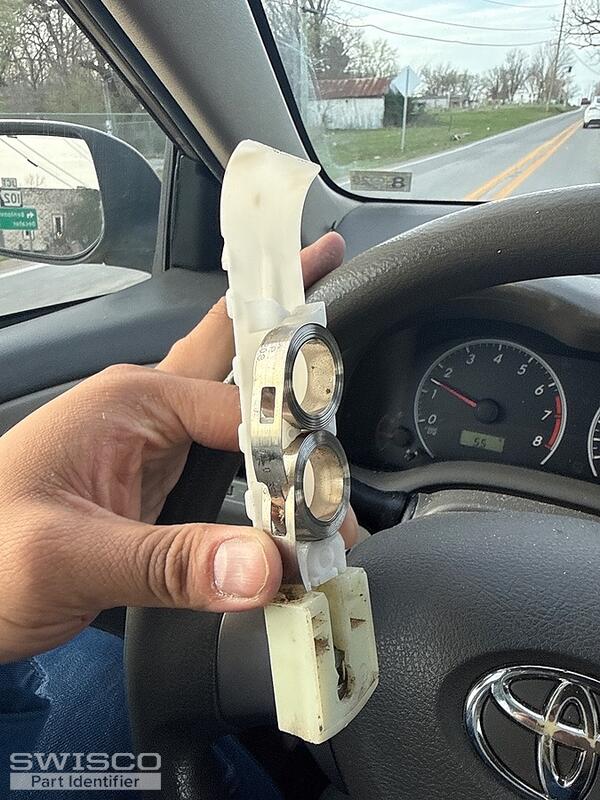

The support you have is the 15-205 which is used for tripled coil assemblies. They are compatible with the 3/8" wide Series 165 Coil Balance. It appears that one of the coils is missing from the assembly, so you'll need to confirm the weight of the window sash to determine the right replacement.
