Window crank replacement hinge

A quick learner from New jersey says:
July 7, 2022

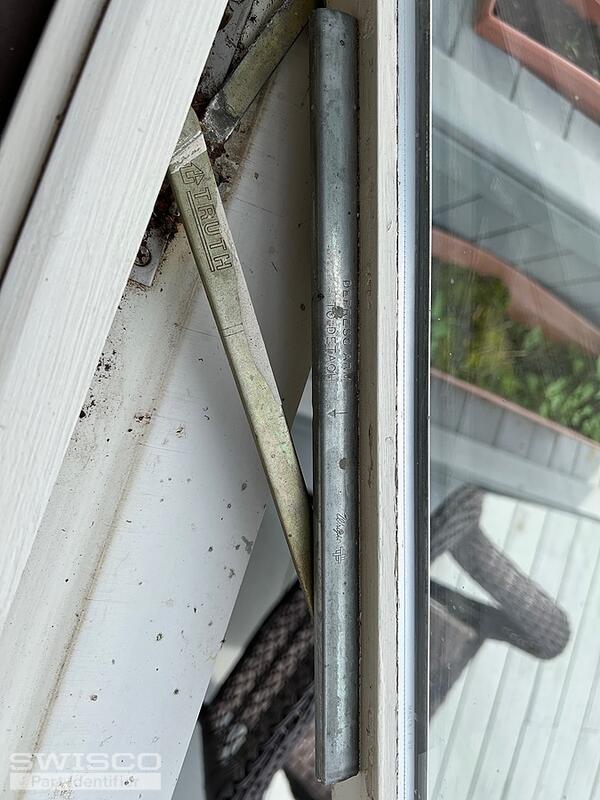

Helllo, I'd like to find a replacement window crank for the attached image. I need both the right and left sides.

Thank you
Thumbnail of the uploaded file named 2B9B4AAE-D741-48CB-9118-7285A5A9B2C4.jpeg
Profile picture of Emily
Emily from SWISCO responded:
July 11, 2022

Hi there!

Start by taking a look at our 39-254E & 39-255E, and 39-027E & 39-028E operators along with the 36-048 hinge set. Review the dimensions for these parts and compare them with yours to see if one of them matches what you need. Note, you'll need to replace the top and bottom hinges at the same time.
Ellipse Style Single Arm Operator, 9-1/2"
Ellipse Style Single Arm Operator, 9-1/2"
39-027E
$20.70
Ellipse Style Single Arm Operator, 9-1/2"
Ellipse Style Single Arm Operator, 9-1/2"
39-028E
$20.70
Ellipse Style Single Arm Operator, 7-1/2"
Ellipse Style Single Arm Operator, 7-1/2"
39-254E
$28.15
Ellipse Style Single Arm Operator, 7-1/2"
Ellipse Style Single Arm Operator, 7-1/2"
39-255E
$28.15
2-Bar Hinge Set, 10"
2-Bar Hinge Set, 10"
36-048
$17.47
Anatomy of a casement window
Anatomy of a casement window
VIDEO
WATCH >
How to Replace a 2-Bar Hinge Set on a Casement Window
How to Replace a 2-Bar Hinge Set on a Casement Window
VIDEO
WATCH >
How to identify casement and awning operators
How to identify casement and awning operators
GUIDE
READ >
