Window lifts and tilt latches

Contractor from Gettysburg PA

Mar 2, 2024 8:34 am

I need these parts (Window lifts and tilt latches )These windows might be Weathershield or Marvin but I don't see a name. The build is 2000 per the label on side of the sash

6 Replies

Contractor from Gettysburg PA

Mar 2, 2024 8:38 am

Window lifts and tilt latches - photos attached.

2 user uploaded images

Emily from SWISCO

Mar 4, 2024 9:02 am

Hello!

Our 26-243 and 26-244 tilt latches were the first parts to come to mind. Have a look and see how the specifications compare with an undamaged latch.

We're happy to help identify the coil balances but we'll need more information. Can you show us a photo of the pivot shoe, preferably removed from the window track?

Contractor from Gettysburg PA

Mar 19, 2024 5:52 pm

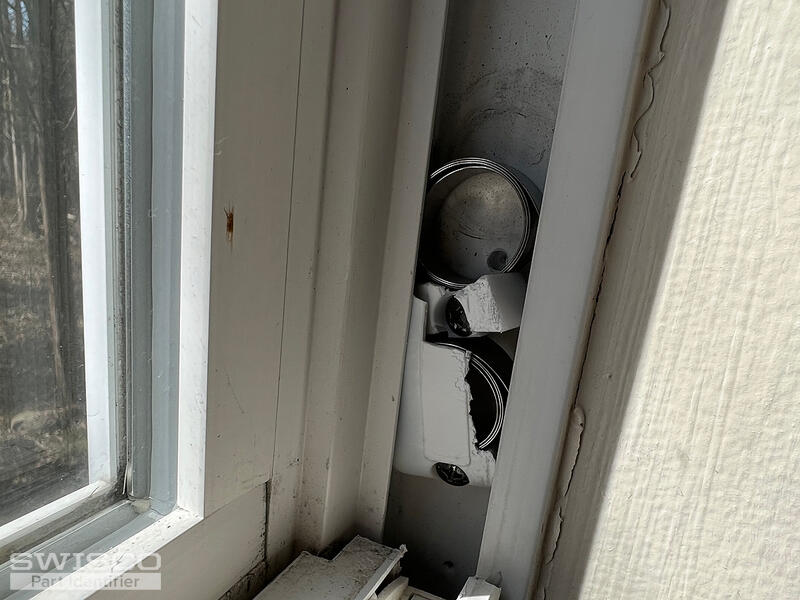

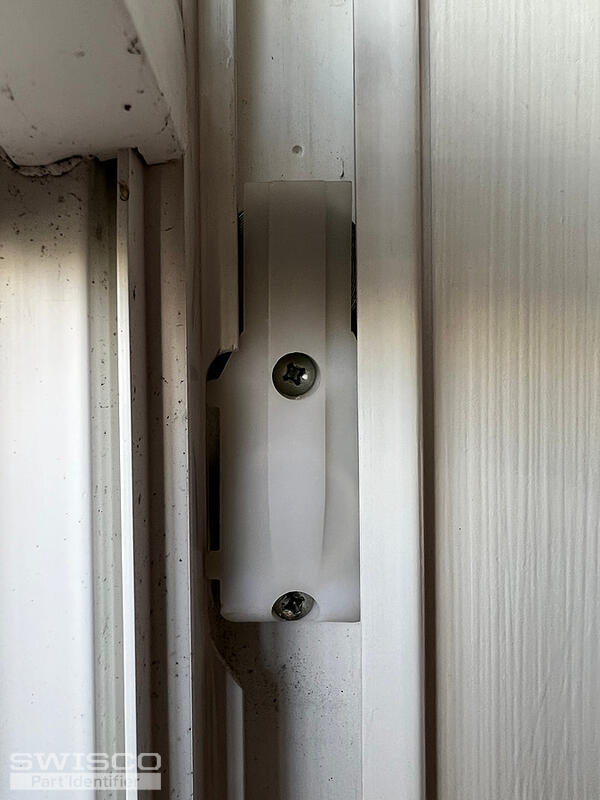

The upper item that the coil spring attaches to is in the channel. It is 3-1/8" long with 2 screw holes. Pictures attached. It is about 9/16" thick. The lower shoe might be the one you suggested. It is 1-3/8" wide, 1-1/2" high and 1/2" to 9/16" thick.

I can try the shoe you suggest however I still need the upper part that is shown in the is attachment too.

2 user uploaded images

Contractor from Gettysburg PA

Mar 19, 2024 6:03 pm

One more photo

1 user uploaded image

Emily from SWISCO

Mar 20, 2024 9:12 am

Our 15-199 pivot shoe looks like a match. This is designed to be used with the 1/2" Series 160 and 3/8" Series 165 coil springs.

If the springs are 1/2" wide and you need a double coil support, see the 15-150D.

If the springs are 3/8" wide and you need a double coil support, see the 15-204.
