Window operator - Supervision

Quick Learner from Craftsbury, VT
Jul 22, 2024 8:03 am

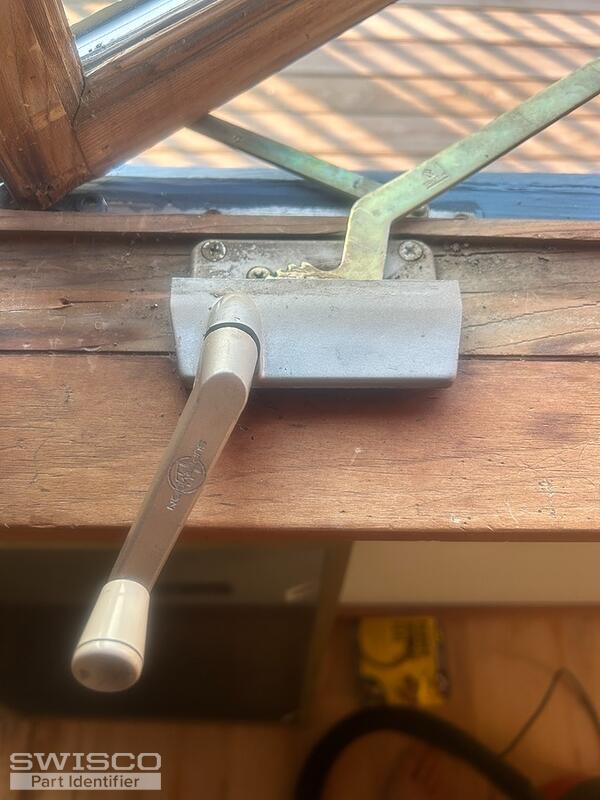

Hi, I need 2 left and 3 right opening cranks of this type. SuperVision/Truth. Are 39-013 and 39-014 the correct operators? thank you
Supervision crank Supervision crank
2 user uploaded images
1 Replies
+ Add a Comment
Emily
Emily from SWISCO
Jul 23, 2024 2:31 pm
SWISCO
EXPERT

Hello there!

The 39-013 and 39-014 operators could be what you need if the dimensions match up. We also have the 39-027E and 39-028E which have a 9-1/2" long arm. Note that we determine the length of the arm by measuring from the center of the gear to the center of the roller wheel. I recommend you measure as shown below to determine the best match.

Let me know if you have any questions!

Dimensions for 39-013
Dimensions for 39-013

Dimensions for 39-014
Dimensions for 39-014

Dimensions for 39-027e
Dimensions for 39-027e

Dimensions for 39-028e
Dimensions for 39-028e
