Window siding replacement

A handy person from Ohio says:
August 2, 2022
I have several windows that need replacement to keep the windows up. The pictures I am showing belong to my morning room. I do noticed that in my bigger windows upstairs, the top gadget is the same but the bottom pivot foot has three metal rings coming out it. So does it depend on the size of the window, the pivot foot is different from my morning room windows. Btw, they are all tilt windows.
Thumbnail of the uploaded file named 604DABE4-8B0E-465C-8585-494535B12ACD.jpeg
Thumbnail of the uploaded file named F92F809C-9BE3-49DF-86EA-C6A7452D0693.jpeg
Thumbnail of the uploaded file named 759ED3AE-EA20-4872-82F6-CDFD1A2E3AFA.jpeg

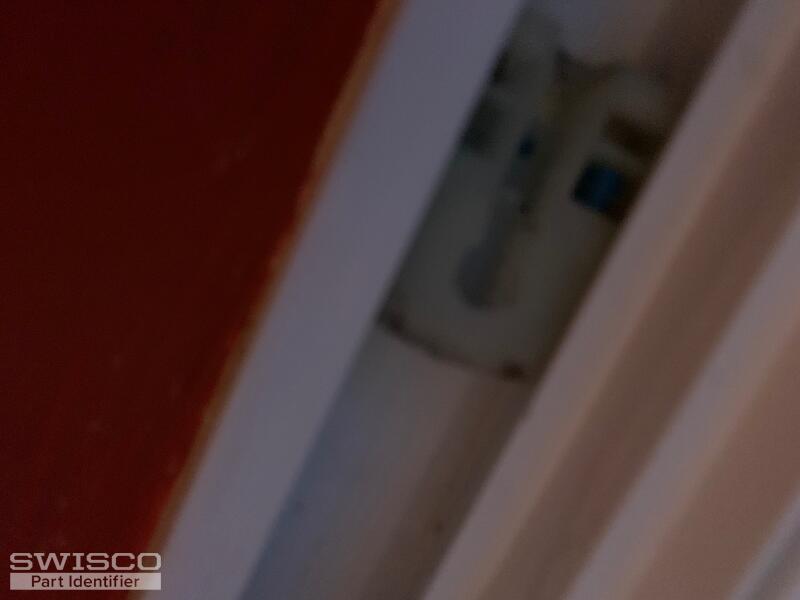

Thumbnail of the uploaded file named 2799E916-5CD1-4BE5-8CB1-7EE213F5F403.jpeg

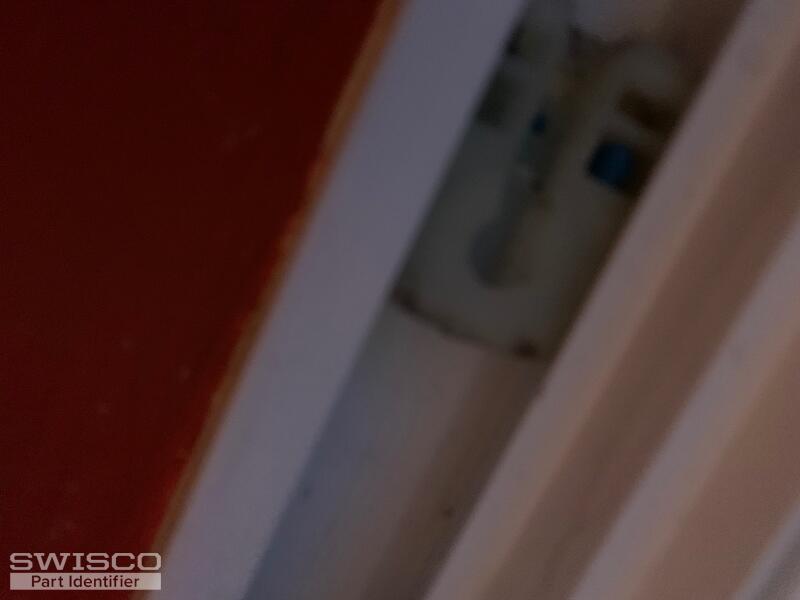

Thumbnail of the uploaded file named AD52267D-ABF2-4153-9AE2-97D401C034A2.jpeg
A handy person from Ohio says:
August 4, 2022
More pictures of the pivot foot on my bigger windows. Please let me know what to order since I need to replace ASAP.

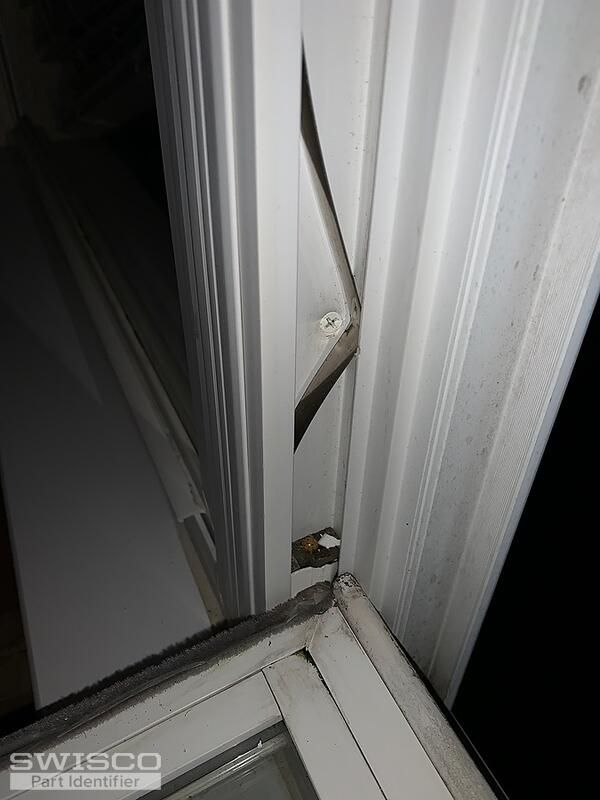

Thumbnail of the uploaded file named 02C70033-63EE-4271-B82B-5D64B5994169.jpeg

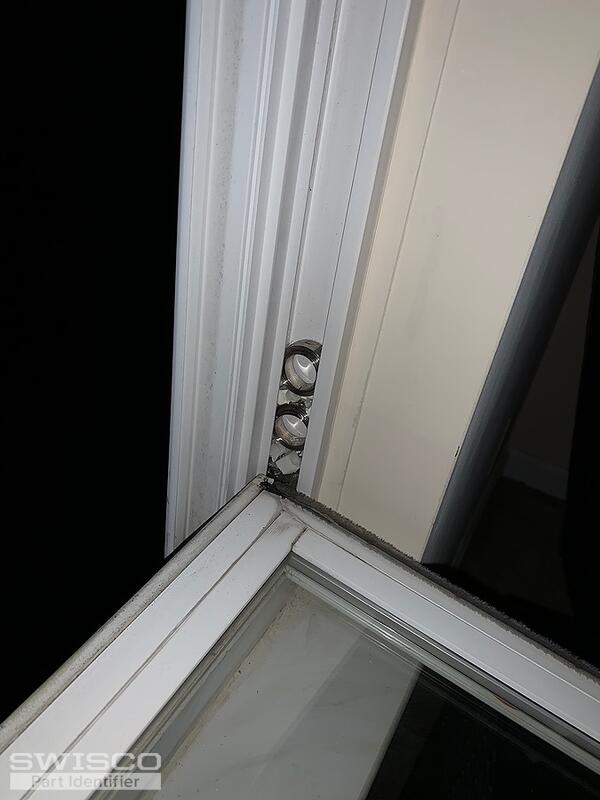

Thumbnail of the uploaded file named C1C26755-D70A-4E48-9698-093458DCE88B.jpeg

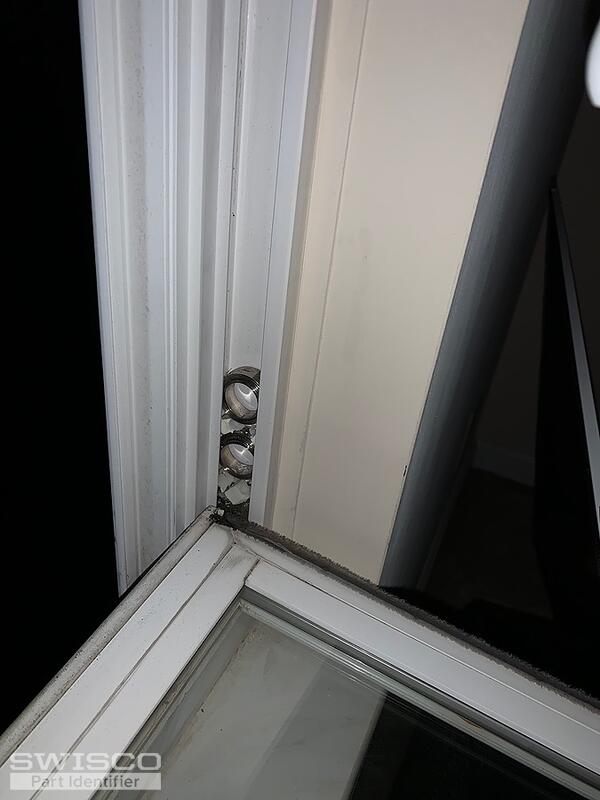

Thumbnail of the uploaded file named 8CEE4311-DDCE-4132-9770-B3669E393EEF.jpeg

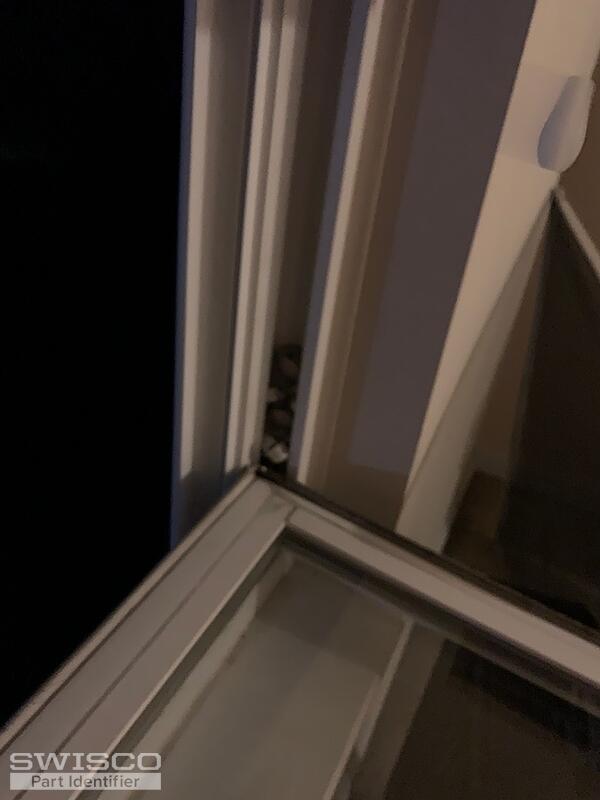

Thumbnail of the uploaded file named 887B9E99-8474-4E27-AE15-9890F8642E66.jpeg
Profile picture of Tom
Tom from SWISCO responded:
August 8, 2022

Hello! Looks like you need a new coil balance assembly. We sell the parts you need, but only as individual components.

See our 15-199 pivot shoe to start, which appears to match your own. If it does then your coil spring will be one of two different sizes: either the 1/2" Series 160 or the 3/8" Series 165. You will need to measure your old spring to determine which is the better option.

For the plastic covers, see our 15-150D for the 1/2" size and the 15-204 for the 3/8" size.
Pivot Shoe, 17/32" Thick
Pivot Shoe, 17/32" Thick
15-199
$3.70
1/2" Coil Double Support
1/2" Coil Double Support
15-150D
$1.57
3/8" Coil Dual Support
3/8" Coil Dual Support
15-204
$1.88
