broken crank

Contractor from Ohio

Jul 11, 2023 2:00 pm

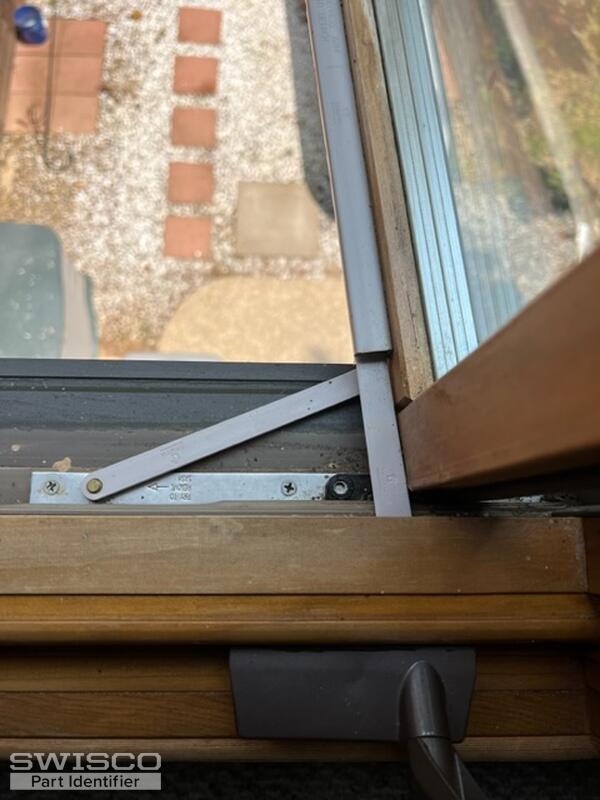

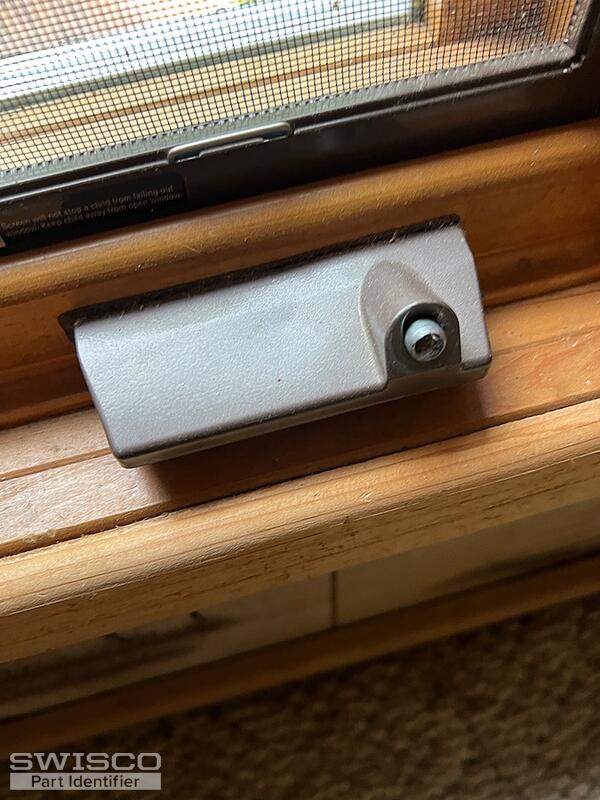

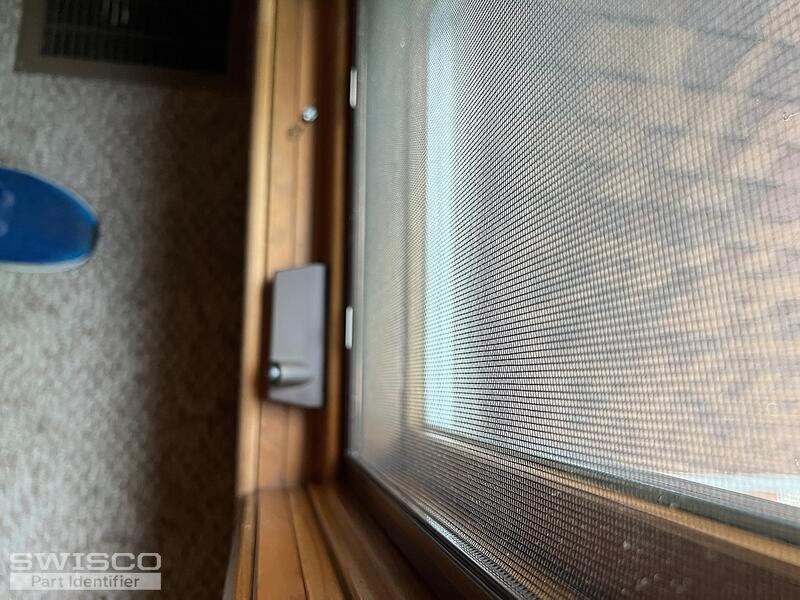

I need to to replace the assembly shown in the pictures. I believe they were Louisiana Pacific windows. Casement or crank out type Circa 2000 build Crank out windows are wood type with dark brown aluminum overlay on outside. There are built in screens on inside.

5 user uploaded images

3 Replies

+ Add a Comment

Emily from SWISCO

Jul 12, 2023 11:01 am

EXPERT

Hello there!

We should be able to help with this. I'll just need more information to help narrow down some options. May we see a photo of your operator with the window open so that the arms that move the sash are fully visible?

Contractor from Ohio

Jul 16, 2023 2:12 pm

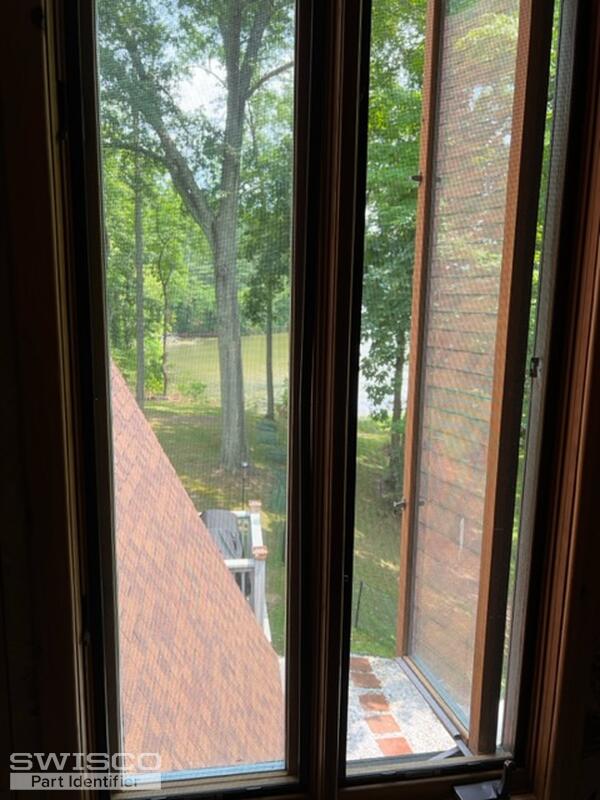

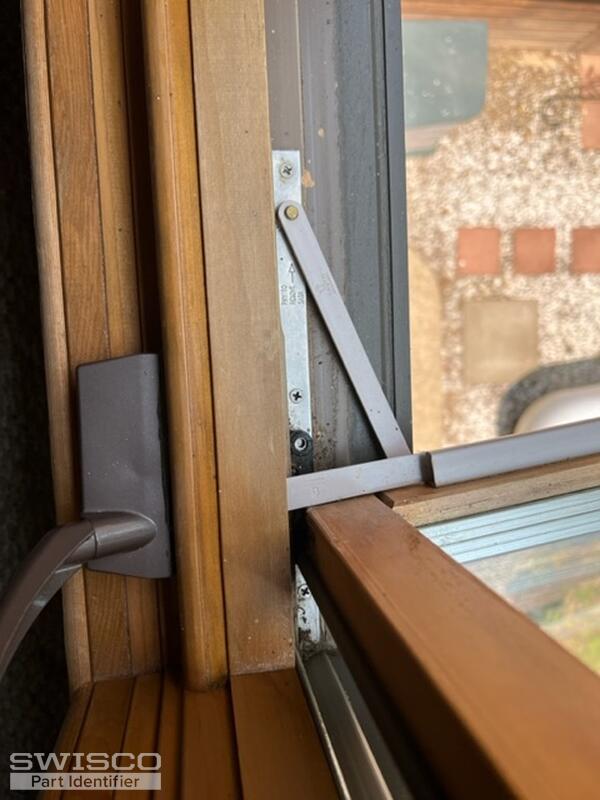

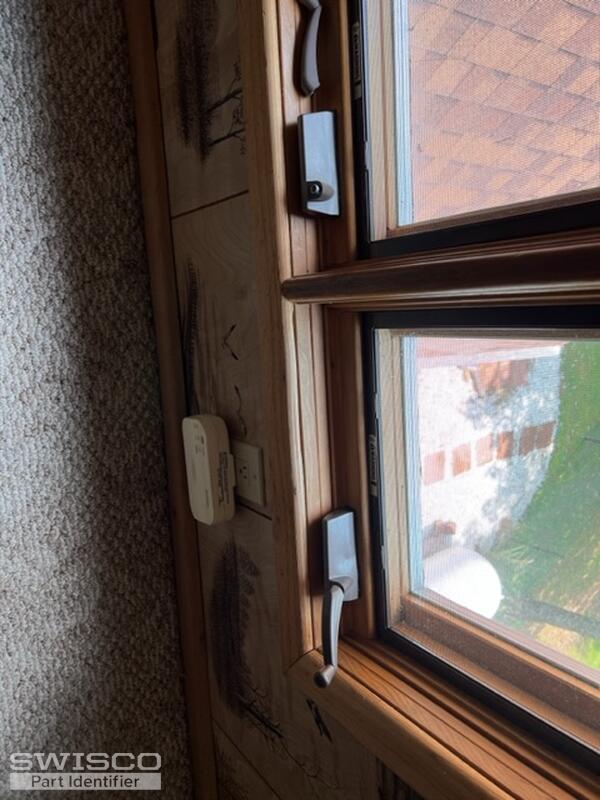

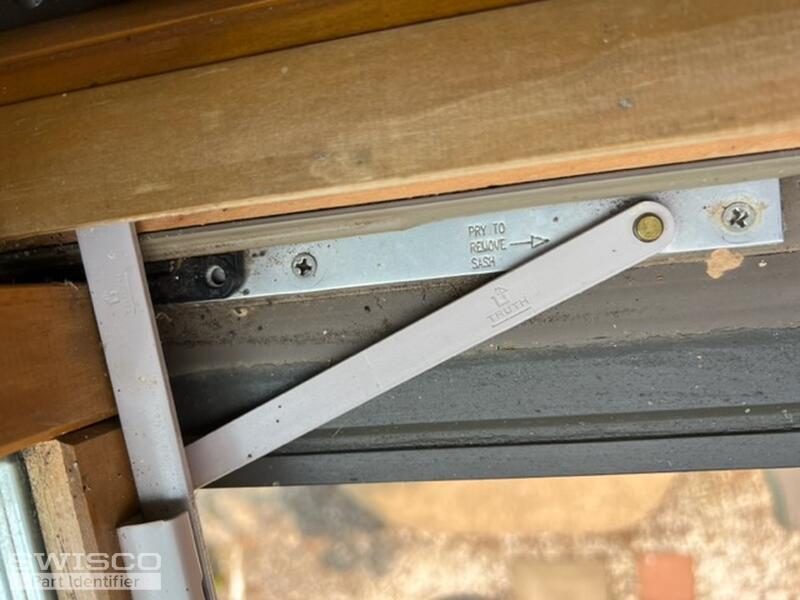

Additional pictures as requested

5 user uploaded images

Emily from SWISCO

Jul 17, 2023 7:53 am

EXPERT

Thank you for the photos! The operator shown here looks like an older version of the 39-027E, 39-254E, or 39-013. The best match will depend on the length of the link arm. Take a look at the specifications and see what you think.

+ Add a Comment
